ST160-BLMNL (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

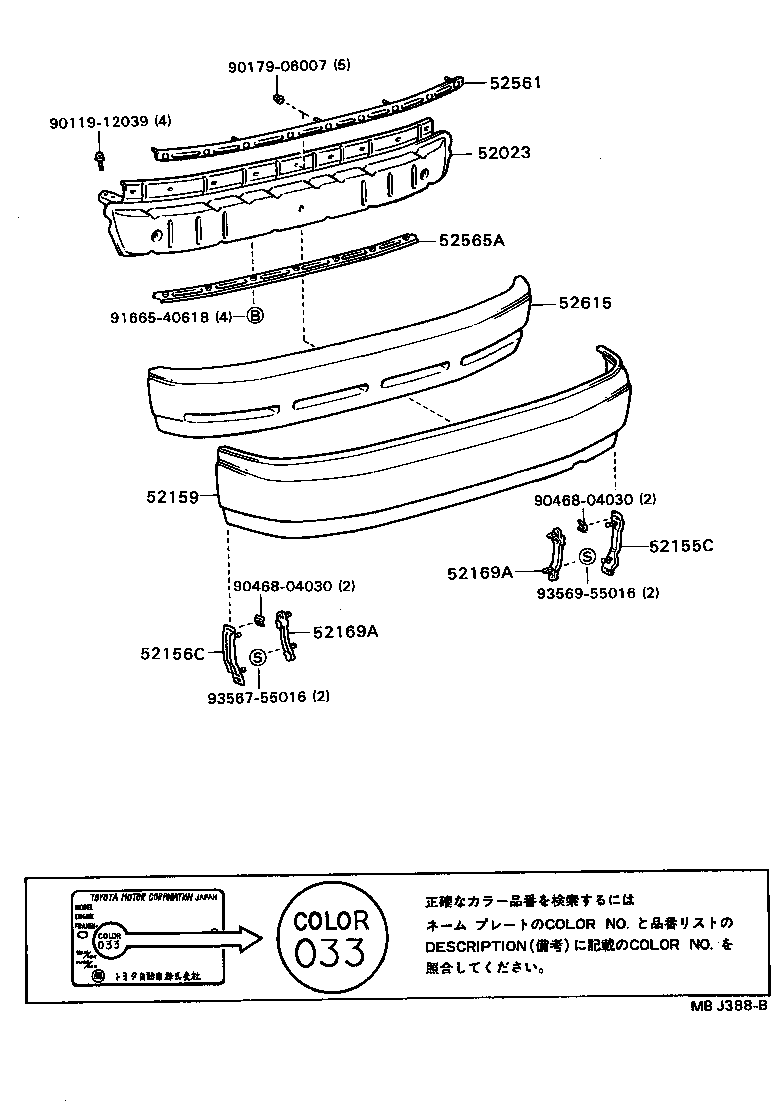

Click highlighted areas on diagram

diagram 52023 52155C 52156C 52159 52169A 52169A 52561 52565A 52615 9011912039 9017906007 9046804030 9046804030 9166540618 9356755016 9356955016
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-20200

AT160,ST160,162

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-20140

AT160,ST16#

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52155-20140

AT160,ST16#

 1
52159 - COVER, REAR BUMPER
52159-2022023

AT160,ST160,162..GT,ST,SX

SILVER-M,DARK GRAY METALLIC,162

 1
52159-20230

ST160..SV

 1
52159-2022008

AT160,ST16#..GT,ST,SX

WHITE,WHITE,041

 1
52159-2022014

AT160,ST160,162..GT,ST,SX

BLUE-M,BLUE METALLIC,8D7

 1
52159-2022002

AT160,ST160,162..GT,ST,SX

SHELL-M,SHELL METALLIC,3E3

 1
52159-2022018

AT160,ST160,162..GT,ST,SX

WHITE,SUPER WHITE 2,040

 1
52159-2022012

AT160,ST160,162..GT,ST,SX

SUPER RED,SUPER RED 2,3E5

 1
52159-2022003

AT160,ST16#..GT,ST,SX

SILVER-M,SILVER METALLIC,148

 1
52159-2022013

AT160,ST160,162..GT,ST,SX

SILVER-M,SILVER/GRAY METALLIC,2Z3

 1
52159-2022004

AT160,ST16#..GT,ST,SX

BLUE-M,ATLAS BLUE METALLIC,8D4

 1
52169A - SUPPORT, REAR BUMPER SIDE, NO.3
52169-20030

AT160,ST16#

 2
52169A - SUPPORT, REAR BUMPER SIDE, NO.3
52169-20030

AT160,ST16#

 2
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52521-20070

AT160,ST16#

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-20080

AT160,ST16#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-20080

AT160,ST16#

 1
Common parts
90119-12039
90179-06007
90468-04030
91665-40618
93567-55016
93569-55016
