ST160-BLMNL (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )AT160,ST160,162

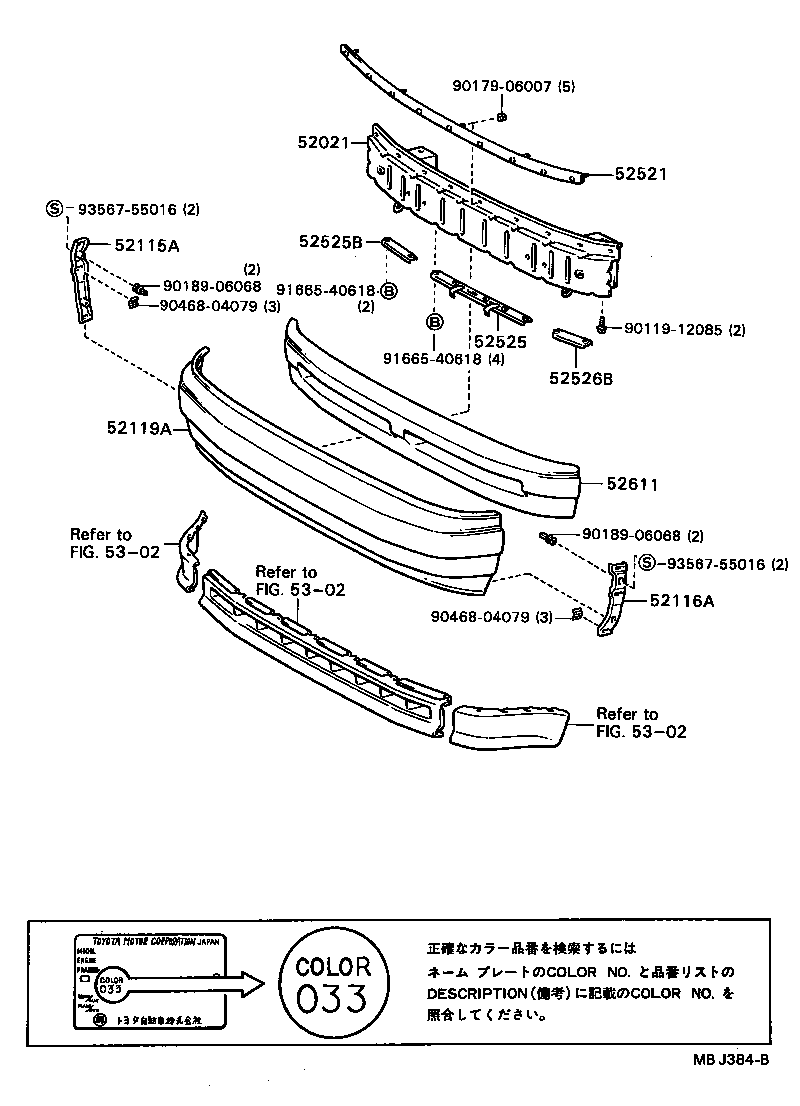

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52521 52525 52525B 52526B 52611 5302 5302 5302 9011912085 9017906007 9018906068 9018906068 9046804079 9046804079 9166540618 9166540618 9356755016 9356755016
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20110

AT160,ST160,162

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20170

AT160,ST160,162

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20150

AT160,ST160,162

 1
52119A - COVER, FRONT BUMPER
52119-2024003

AT160,ST16#..GT,ST,SX

SILVER-M,SILVER METALLIC,148

 1
52119-2024002

AT160,ST160,162..GT,ST,SX

SHELL-M,SHELL METALLIC,3E3

 1
52119-2024018

AT160,ST160,162..GT,ST,SX

SUPER WHITE,SUPER WHITE 2,040

 1
52119-2024013

AT160,ST160,162..GT,ST,SX

SILVER-M,SILVER/GRAY METALLIC,2Z3

 1
52119-2024014

AT160,ST160,162..GT,ST,SX

BLUE-M,BLUE METALLIC,8D7

 1
52119-2024023

AT160,ST160,162..GT,ST,SX

SILVER-M,DARK GRAY METALLIC,162

 1
52119-2024004

AT160,ST16#..GT,ST,SX

BLUE-M,ATLAS BLUE METALLIC,8D4

 1
52119-2024008

AT160,ST16#..GT,ST,SX

WHITE,WHITE,041

 1
52119-20250

ST160..SV

 1
52119-2024012

AT160,ST160,162..GT,ST,SX

SUPER RED,SUPER RED 2,3E5

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20070

AT160,ST16#

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-20090

AT160,ST160,162

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-20040

AT160,ST160,162

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-20040

AT160,ST160,162

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20070

AT160,ST160,162

 1
Common parts
90119-12085
90179-06007
90189-06068
90468-04079
91665-40618
93567-55016
Linked diagrams
5302
