ST160-BLMNL (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
1SILU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )1SILU..5F

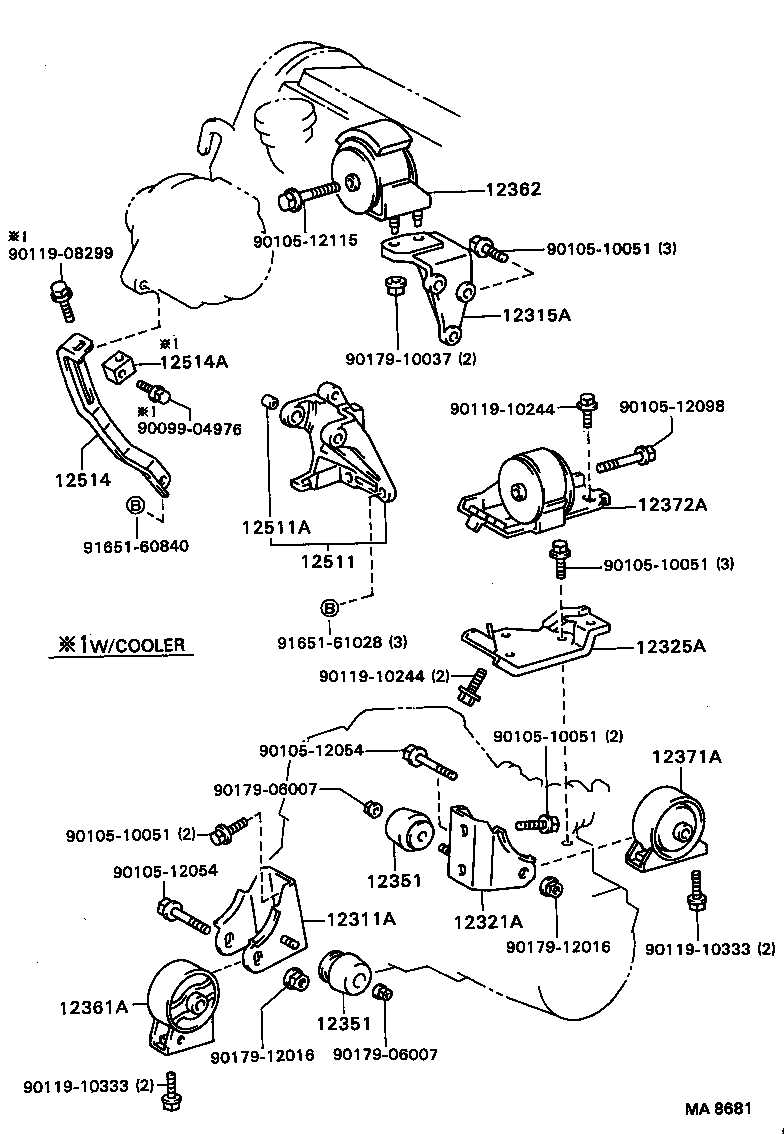

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74010 |
1SILU,3SG#..ST16#..5F |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-74030 |
1SILU,3SG#..ST16# |
1 | ||
| 12315-74010 |
1SILU,3SGELU..ST16# |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74010 |
1SILU,3SGELU..ST160,162..5F |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74010 |
1SILU,3SGELU..ST160,162..5F |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-74010 |
1SILU,3SG#..ST16#..5F |
2 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-74010 |
1SILU,3SG#..ST16#..5F |
2 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-74010 |
1SILU,3SG#..ST16#..5F |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-74011 |
1SILU,3SGELU..ST16# |
1 | ||
| 12362-74050 |
1SILU,3SGELU..ST160,162 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74020 |
1SILU,3SGELU..ST160,162..5F |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74010 |
1SILU,3SGELU..ST160,162..5F |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-63031 |
1SILU..ST160 |
1 | ||
| 12511-63030 |
1SILU..ST160 |
1 | ||
| 12511A - BUSH, ALTERNATOR BRACKET | ||||
| 90387-10013 |
1SILU..ST160 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-63020 |
1SILU..ST160 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
1SILU..ST160 |
1 | ||
| Common parts | ||||
| 90099-04976 | ||||
| 90105-10051 | ||||
| 90105-12054 | ||||
| 90105-12098 | ||||
| 90105-12115 | ||||
| 90119-08299 | ||||
| 90119-10244 | ||||
| 90119-10333 | ||||
| 90179-06007 | ||||
| 90179-10037 | ||||
| 90179-12016 | ||||
| 91651-60840 | ||||
| 91651-61028 | ||||
(8708-8805)1SILU..5F

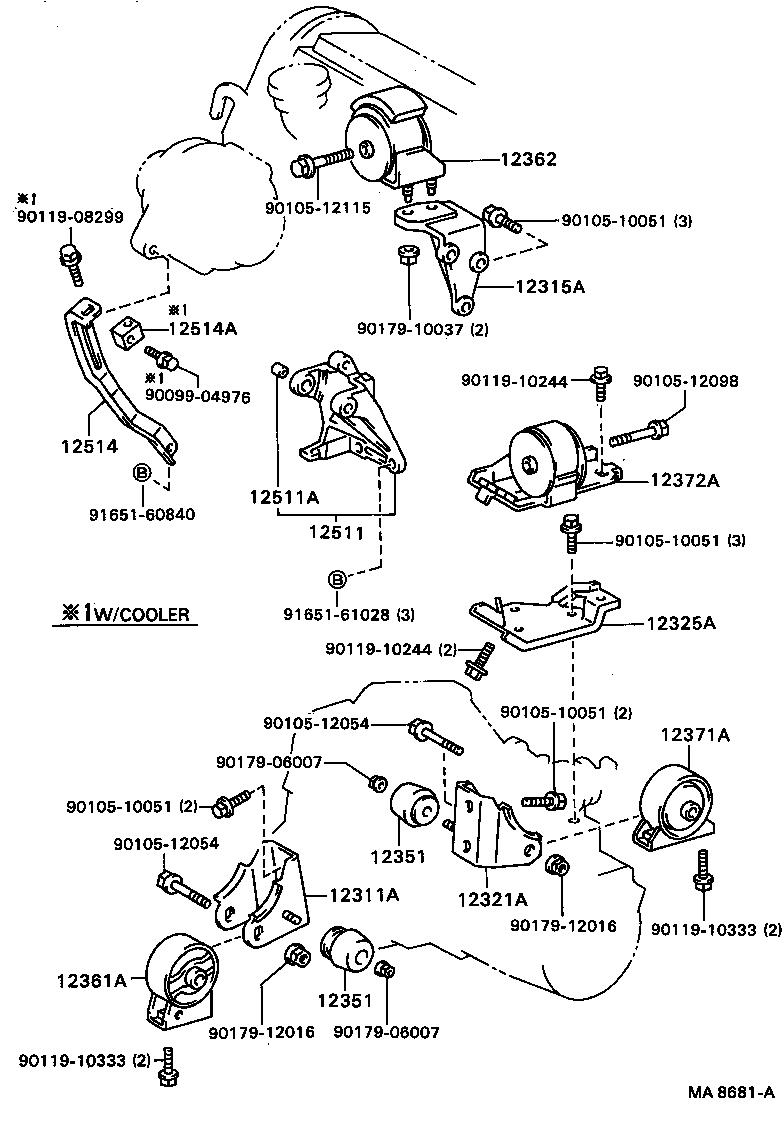

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04976 | ||||
| 90105-10051 | ||||
| 90105-12054 | ||||
| 90105-12098 | ||||
| 90105-12115 | ||||
| 90119-08299 | ||||
| 90119-10244 | ||||
| 90119-10333 | ||||
| 90179-06007 | ||||
| 90179-10037 | ||||
| 90179-12016 | ||||
| 91651-60840 | ||||
| 91651-61028 | ||||
