ST160-BLMEL (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
1SILU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )ST160

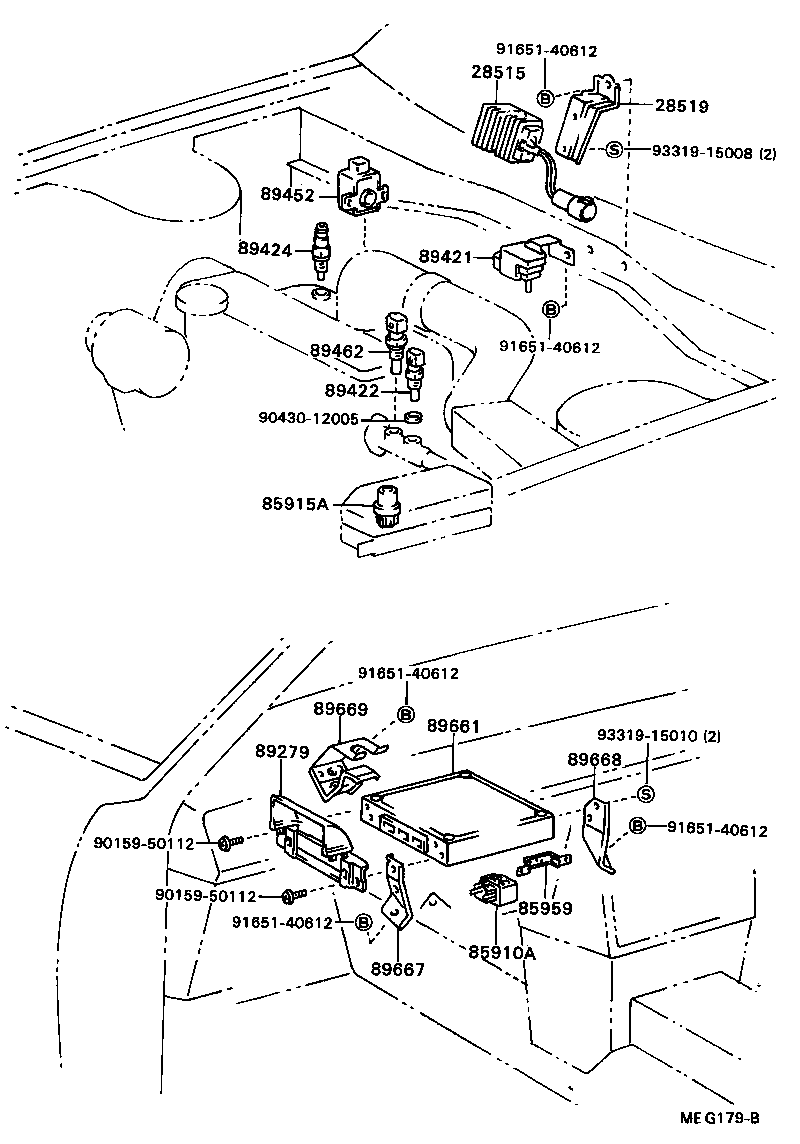

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-63030 |
1SILU..ST160 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-20010 |
1SILU..ST160 |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
AT160,ST16# |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
AT160,ST16# |
1 | ||
| 85959 - HOLDER, RELAY | ||||
| 85959-20040 |
AT160,ST160,162 |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-20020 |
ST160 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-20050 |
ST160 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
AT160,ST16# |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-28010 |
AT160,ST160,165 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-20030 |
ST160 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
ST16# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-20100 |
ST160..ST,SX TEN |
1 | ||
| 89661-20230 |
ST160..ST,SX DENSO |
1 | ||
| 89661-20100 |
ST160 TEN |
1 | ||
| 89661-20230 |
ST160 DENSO |
1 | ||
| 89661-20101 |
ST160 TEN |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-20040 |
AT160,ST160 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-20040 |
AT160,ST160,162 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-20030 |
AT160,ST160,162 |
1 | ||
| Common parts | ||||
| 90159-50112 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
