ST160-BLMEL (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
1SILU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

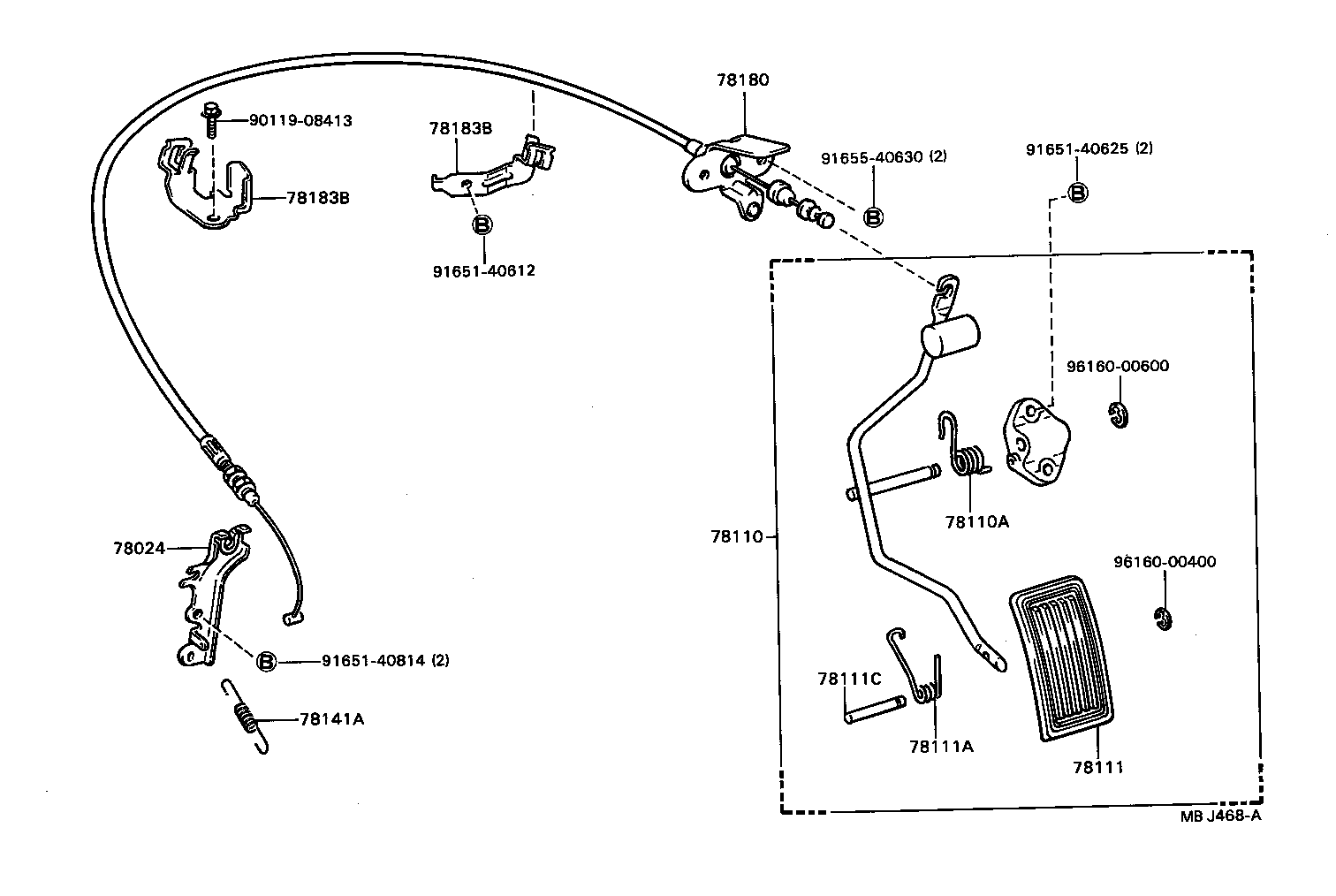

(8508- )ST160
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20010 |
ST160 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20300 |
AT160,ST160..5F W/O AUTO DRIVE |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26054 |
AT160,ST16#..5F W/O AUTO DRIVE |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20030 |
AT160,ST16# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
AT160,ST16# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT160,ST16# |
1 | ||
| 78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING) | ||||
| 90507-11003 |
ST160..5F |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-20490 |
ST160 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20070 |
ST160 W/HEAD COVER |
1 | ||
| 78183-20030 |
AT160,ST16# W/APRON |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20070 |
ST160 W/HEAD COVER |
1 | ||
| 78183-20030 |
AT160,ST16# W/APRON |
1 | ||
| Common parts | ||||
| 90119-08413 | ||||
| 91651-40612 | ||||
| 91651-40625 | ||||
| 91651-40814 | ||||
| 91655-40630 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||

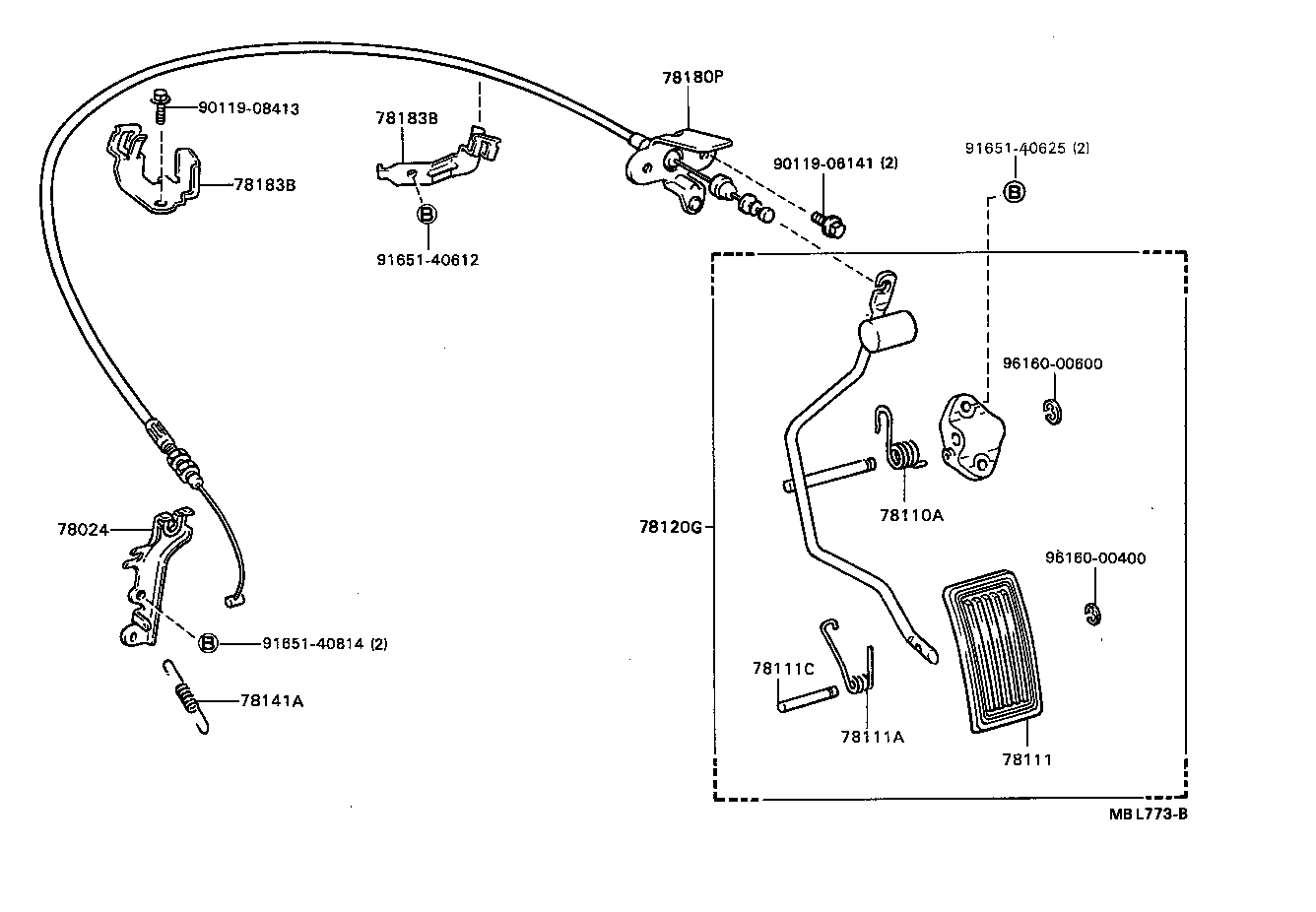

(8708-8805)ST160
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06141 | ||||
| 90119-08413 | ||||
| 91651-40612 | ||||
| 91651-40625 | ||||
| 91651-40814 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
