ST160-BLMEL (1987)
Toyota Celica
Production
Aug 1987
-
May 1988
Engine
1SILU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

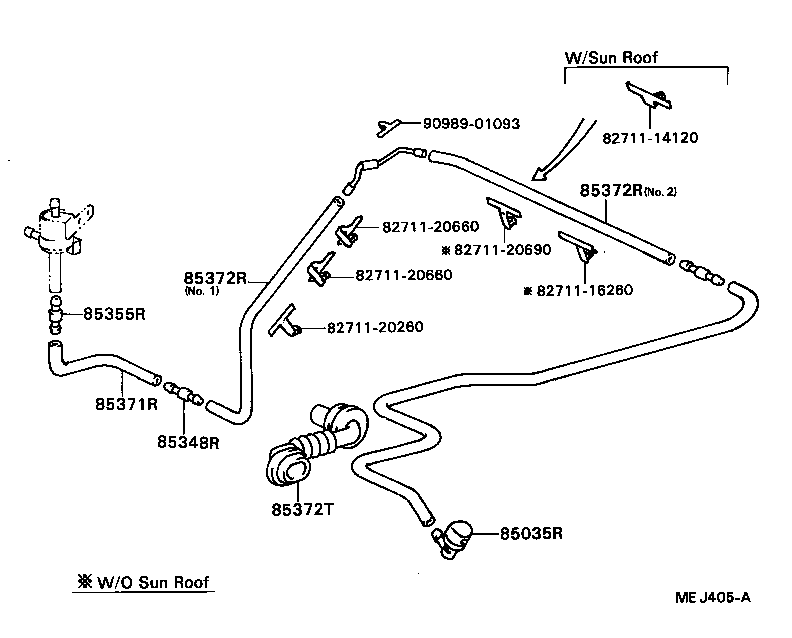

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85035-20160 |
ST160,163..ST |
1 | ||
| 85035-20160 |
ST16#..GT,GT4,SX,ZR |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ST16#..GT,GT4,SX,ZR |
1 | ||
| 85349-89122 |
ST160,163..ST |
1 | ||
| 85355R - VALVE, REAR WASHER HOSE | ||||
| 85031-12250 |
ST16#..GT,GT4,SX,ZR |
1 | ||
| 85031-12250 |
ST160,163..ST |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
ST160,163..ST |
1 | ||
| 90446-07001 |
ST16#..GT,GT4,SX,ZR |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33382 |
ST16#..GT,GT4,SX,ZR *H,L=1020,NO.2 |
1 | ||
| 90099-33299 |
ST160,163..ST *H,L=695,NO.1 |
1 | ||
| 90099-33382 |
ST160,163..ST *H,L=1020,NO.2 |
1 | ||
| 90099-33299 |
ST16#..GT,GT4,SX,ZR *H,L=695 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33382 |
ST16#..GT,GT4,SX,ZR *H,L=1020,NO.2 |
1 | ||
| 90099-33299 |
ST160,163..ST *H,L=695,NO.1 |
1 | ||
| 90099-33382 |
ST160,163..ST *H,L=1020,NO.2 |
1 | ||
| 90099-33299 |
ST16#..GT,GT4,SX,ZR *H,L=695 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85372-14020 |
ST160..ST |
1 | ||
| 85372-14020 |
ST163;ST160,162,165..GT,GT4,SX,ZR |
1 | ||
| Common parts | ||||
| 82711-14120 | ||||
| 82711-16260 | ||||
| 82711-20260 | ||||
| 82711-20660 | ||||
| 82711-20690 | ||||
| 90989-01093 | ||||
