ST160-BLMEL (1987)

Toyota Celica

Production Aug 1987 - May 1988
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

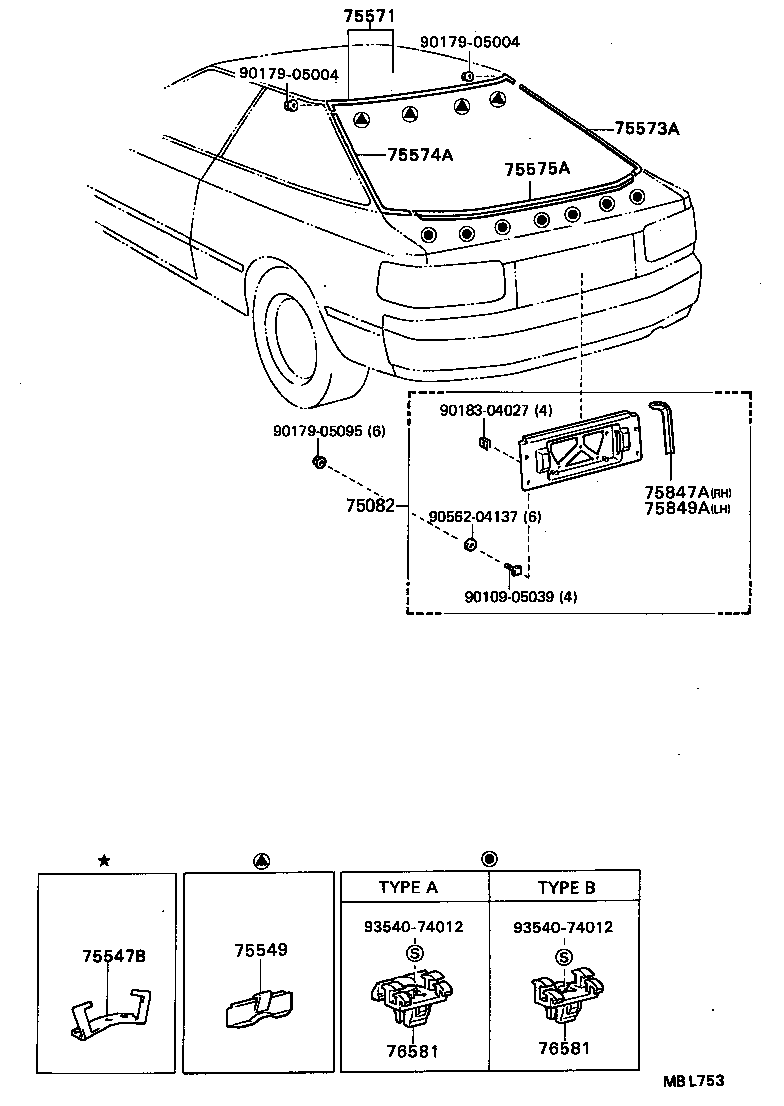

Click highlighted areas on diagram

diagram 75082 75547B 75549 75571 75573A 75574A 75575A 75847A 75849A 76581 76581 9010905039 9017905004 9017905004 9017905095 9018304027 9056204137 9354074012 9354074012
Part # Description Qty Price
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-20130

ST160,162,163..LB

(3H4,8D7,8E4)

 1
75082-2016013

ST16#..LB

GRAY M,168

 1
75082-2016008

ST16#..LB

SUPER WHITE 2,040

 1
75082-2016002

ST16#..LB

SUPER RED 2,3E5

 1
75082-2016023

ST160,162,163..LB

SILVER M,23E

 1
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-20050

ST16#..LB

 4
75549 - FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75549-20080

ST16#..LB

 4
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75507-20170

ST16#..LB

 1
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75501-20031

ST16#..LB

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75502-20011

ST16#..LB

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-20200

ST16#..LB

 1
75847A - PAD, LOWER BACK PANEL MOULDING, RH
75847-20070

ST16#..LB

 1
75849A - PAD, LOWER BACK PANEL MOULDING, LH
75849-20060

ST16#..LB

 1
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76583-20010

ST16#..LB

ﾀｲﾌﾟ B

 5
76581-20020

ST16#..LB

ﾀｲﾌﾟ A

 2
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76583-20010

ST16#..LB

ﾀｲﾌﾟ B

 5
76581-20020

ST16#..LB

ﾀｲﾌﾟ A

 2
Common parts
90109-05039
90179-05004
90179-05095
90183-04027
90562-04137
93540-74012
