SA60-BLMSS (1981)

Toyota Celica

Production Jul 1981 - Jul 1985
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )

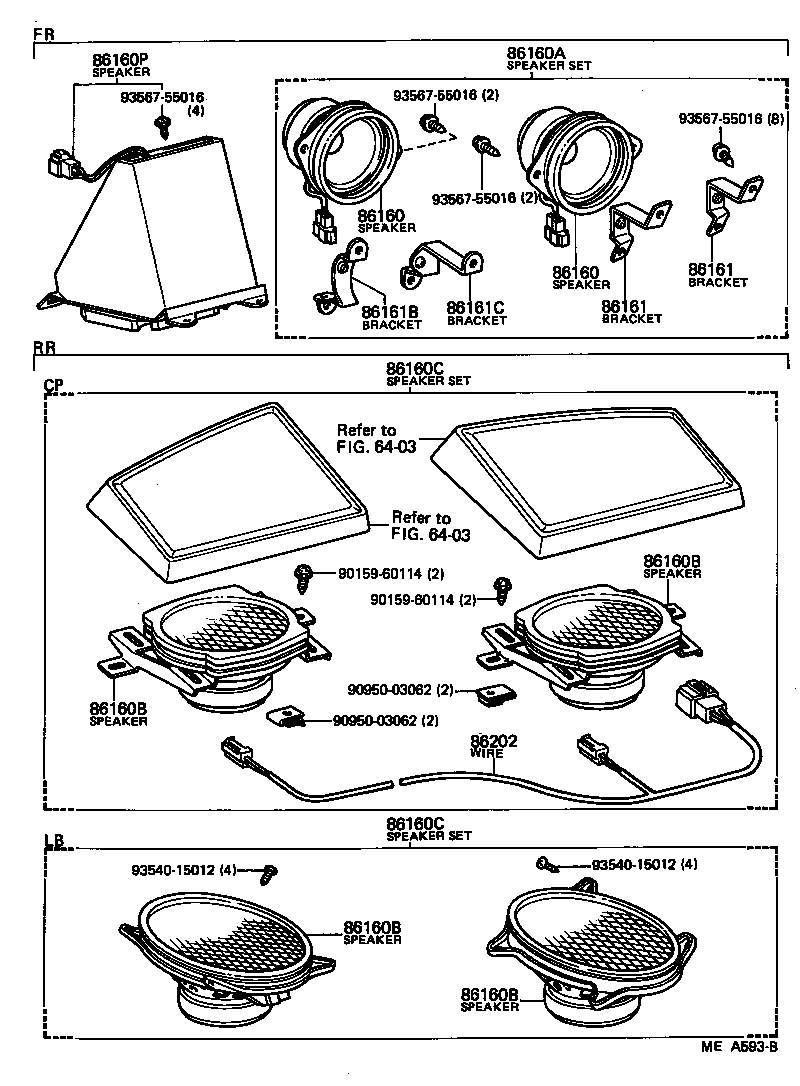

Click highlighted areas on diagram

diagram 6403 6403 86160 86160 86160A 86160B 86160B 86160B 86160B 86160C 86160C 86160P 86161 86161 86161B 86161C 86202 9015960114 9015960114 9095003062 9095003062 9354015012 9354015012 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-14180

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-14180

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
86160A - SPEAKER SET, FRONT
86160-19335

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-19255

GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,S,ST,SX

 1
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-14060

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-14060

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
86161B - BRACKET, SPEAKER, FRONT NO.2
86219-14040

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
86161C - BRACKET, SPEAKER, FRONT NO.3
86219-14050

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
Common parts
90159-60114
90950-03062
93540-15012
93567-55016
Linked diagrams
6403
