SA60-BLMFS (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)SA60

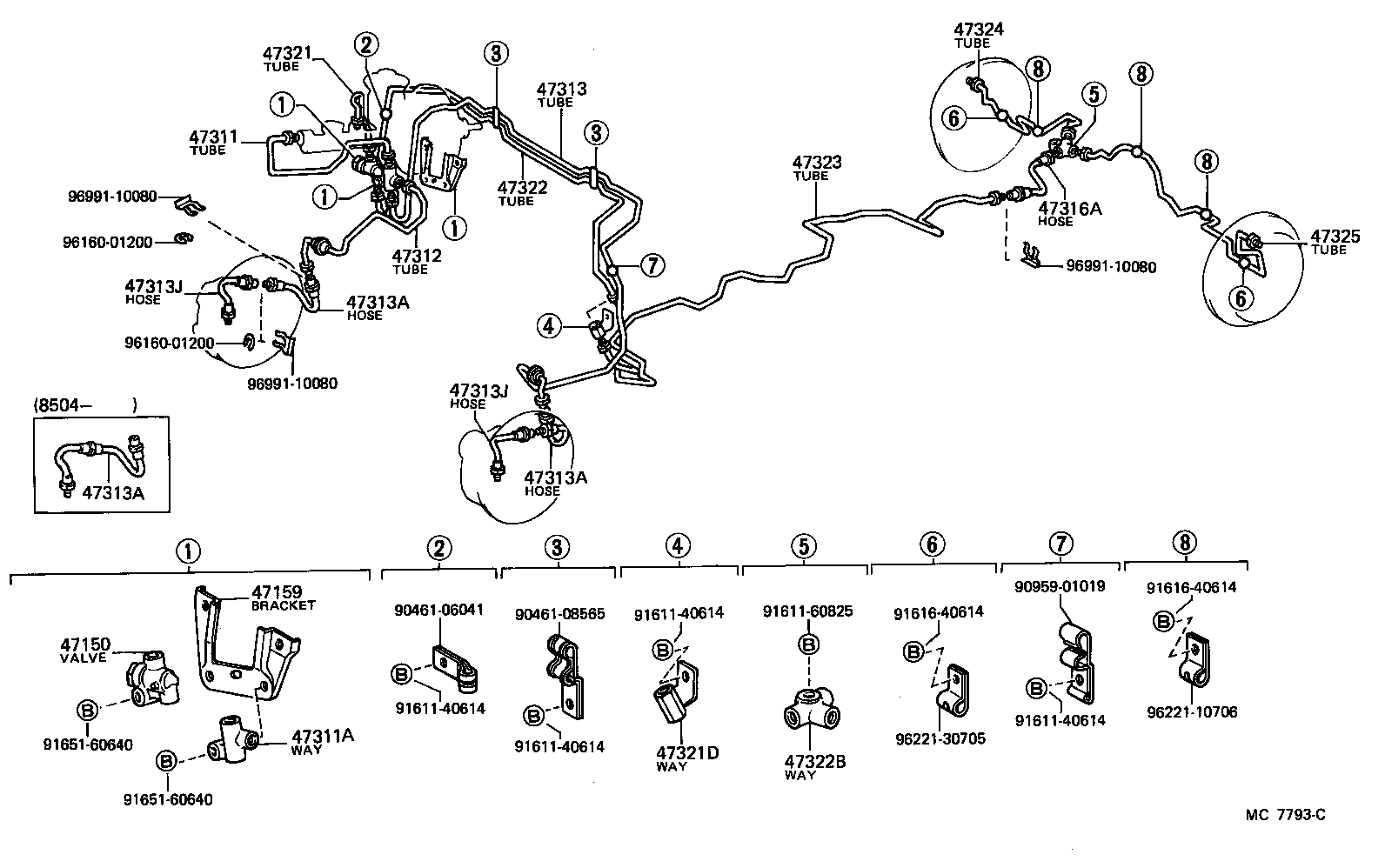

Click highlighted areas on diagram

diagram 47150 47159 47311 47311A 47312 47313 47313A 47313A 47313A 47313J 47313J 47316A 47321 47321D 47322 47322B 47323 47324 47325 9046106041 9046108565 9095901019 9161140614 9161140614 9161140614 9161140614 9161160825 9161640614 9161640614 9165160640 9165160640 9616001200 9616001200 9622110706 9622130705 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-14020

SA60

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14210

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10002

AA63,RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14110

AA63,RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14110

RA63,SA60,TA6#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA63,RA63,SA60,TA6#

 2
90947-02474

AA63,SA60,TA63

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA63,RA63,SA60,TA6#

 2
90947-02474

AA63,SA60,TA63

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA63,RA63,SA60,TA6#

 2
90947-02474

AA63,SA60,TA63

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AA63,RA63,SA60,TA6#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AA63,RA63,SA60,TA6#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32855

SA60,TA64

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-14090

SA60

 1
47321-14090

RA63,SA60,TA6#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10056

SA60

 1
47322 - TUBE, REAR BRAKE, NO.2
47329-14010

SA60

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

SA60,TA64

 1
47323 - TUBE, REAR BRAKE, NO.3
47322-14060

SA60

 1
47324 - TUBE, REAR BRAKE, NO.4
47323-14041

SA60

 1
47325 - TUBE, REAR BRAKE, NO.5
47324-14051

SA60

 1
Common parts
90461-06041
90461-08565
90959-01019
91611-40614
91611-60825
91616-40614
91651-60640
96160-01200
96221-10706
96221-30705
96991-10080
