SA60-BLMFS (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)1SU

Click highlighted areas on diagram

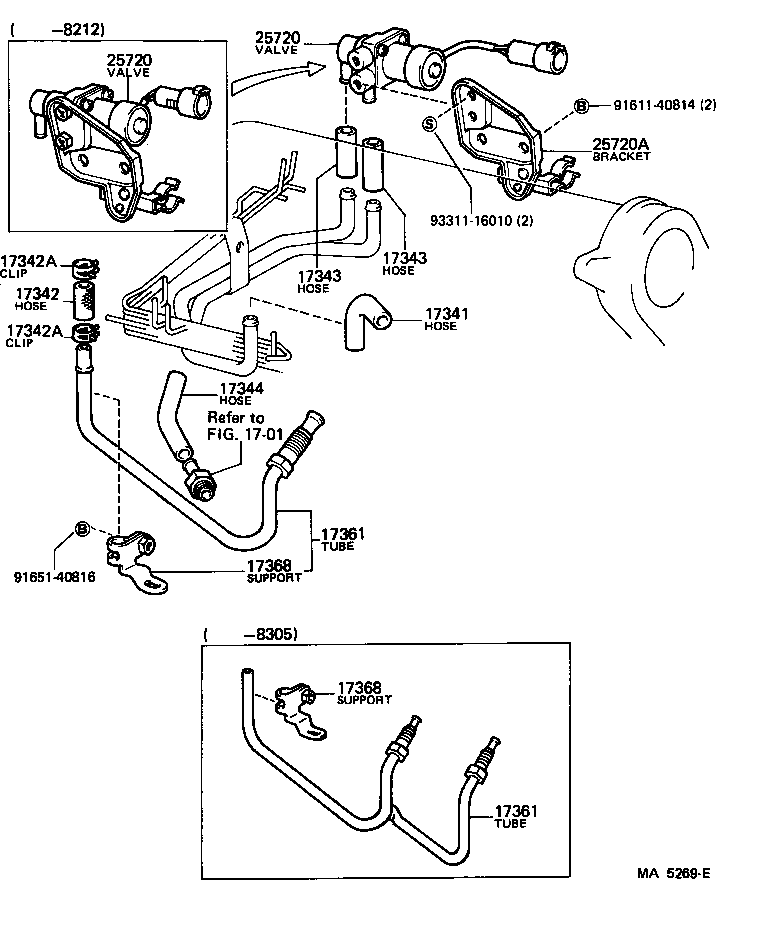

diagram 1701 17341 17342 17342A 17343 17343 17344 17361 17361 17368 17368 25720 25720 25720A 9161140814 9165140816 9331116010
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-15005

1SU..SA60

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
90445-22019

1SU..SA60

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-20134

1SU..SA60

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
90445-16012

1SU..SA60

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
90445-16012

1SU..SA60

 2
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
90445-16009

1SU..SA60

 1
17361 - TUBE, AIR
17360-63010

1SU..SA60

 1
17361 - TUBE, AIR
17360-63010

1SU..SA60

 1
17368 - SUPPORT, AIR TUBE
17368-63010

1SU..SA60

 1
17368 - SUPPORT, AIR TUBE
17368-63010

1SU..SA60

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25720-63010

1SU..SA60

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25720-63010

1SU..SA60

 1
Common parts
91611-40814
91651-40816
93311-16010
Linked diagrams
1701
