SA60-BLKFS (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 1SU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8107- )

Click highlighted areas on diagram

diagram 5501 5587614010 87138B 87174 87211 87211A 87211B 87211C 87212 87213 87214 87215 9015950184 9015960125 9015961025 9018305094 9046704005 9354015016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
87138B - RESISTOR, HEATER BLOWER
87138-24010

GA61,MA6#,RA63,SA60,TA6#

 1
87174 - GUIDE, AIR DUCT
87174-14040

SA60..SV

 1
87211 - DUCT, AIR, NO.1
87201-24031

GA61,MA6#,RA63,SA60,TA6#

 1
87211A - DUCT, AIR, NO.2
87201-14120

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
87211B - DUCT, AIR, NO.3
87201-24020

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
87211C - DUCT, AIR, NO.4
55086-14090

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
87212 - DUCT, AIR, REAR NO.1
87212-24010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
87213 - DUCT, AIR, REAR NO.2
87213-24010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-14080

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-14090

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
Common parts
55876-14010
90159-50184
90159-60125
90159-61025
90183-05094
90467-04005
93540-15016
93567-55016
Linked diagrams
5501

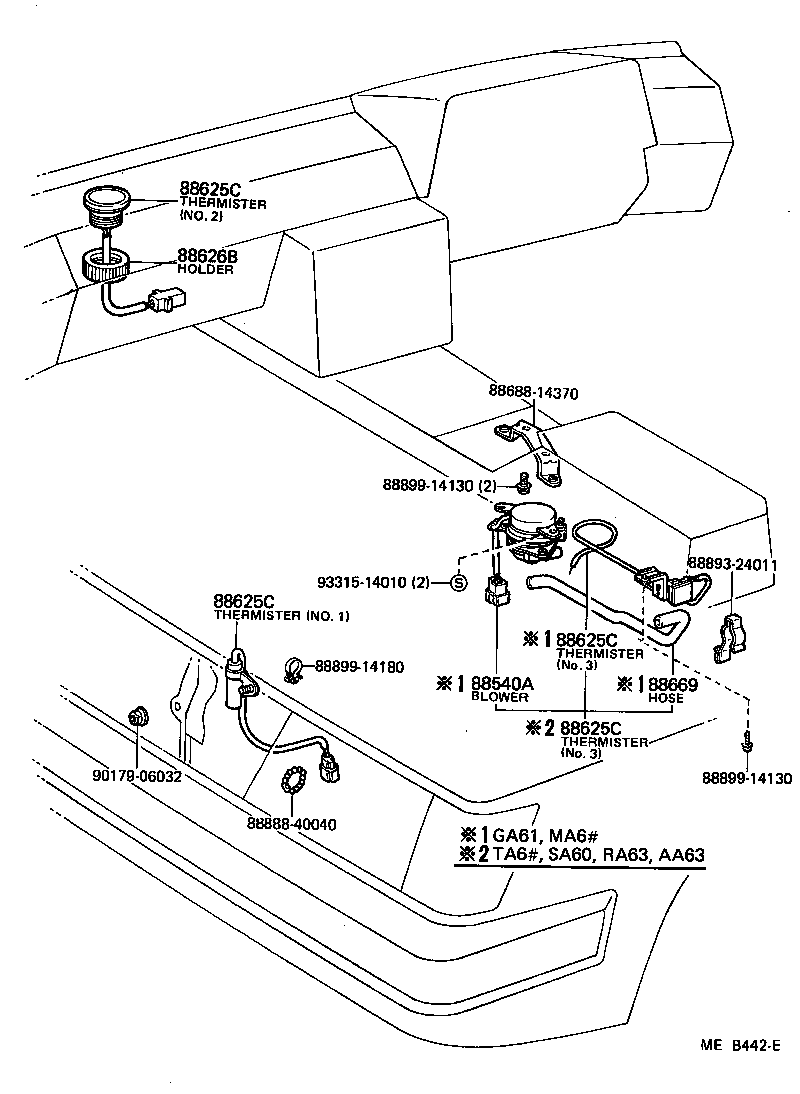

ILLUST NO. 3 OF 3(8107- )

Click highlighted areas on diagram

diagram 88540A 88625C 88625C 88625C 88625C 88626B 88669 8868814370 8888840040 8889324011 8889914130 8889914130 8889914180 9017906032 9331514010
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88790-14070

AA63,RA63,SA60,TA6#

NO.3,W/*AAC

 1
88625-14050

AA63,GA61,MA6#,RA63,SA60,TA6#

NO.1,W/*AAC

 1
88625-24020

AA63,GA61,MA6#,RA63,SA60,TA6#

NO.2,W/*AAC

 1
88625C - THERMISTOR, COOLER
88790-14070

AA63,RA63,SA60,TA6#

NO.3,W/*AAC

 1
88625-14050

AA63,GA61,MA6#,RA63,SA60,TA6#

NO.1,W/*AAC

 1
88625-24020

AA63,GA61,MA6#,RA63,SA60,TA6#

NO.2,W/*AAC

 1
88625C - THERMISTOR, COOLER
88790-14070

AA63,RA63,SA60,TA6#

NO.3,W/*AAC

 1
88625-14050

AA63,GA61,MA6#,RA63,SA60,TA6#

NO.1,W/*AAC

 1
88625-24020

AA63,GA61,MA6#,RA63,SA60,TA6#

NO.2,W/*AAC

 1
88625C - THERMISTOR, COOLER
88790-14070

AA63,RA63,SA60,TA6#

NO.3,W/*AAC

 1
88625-14050

AA63,GA61,MA6#,RA63,SA60,TA6#

NO.1,W/*AAC

 1
88625-24020

AA63,GA61,MA6#,RA63,SA60,TA6#

NO.2,W/*AAC

 1
88626B - HOLDER, THERMISTOR
88626-24010

AA63,GA61,MA6#,RA63,SA60,TA6#

W/*AAC

 1
Common parts
88688-14370
88888-40040
88893-24011
88899-14130
88899-14180
90179-06032
93315-14010

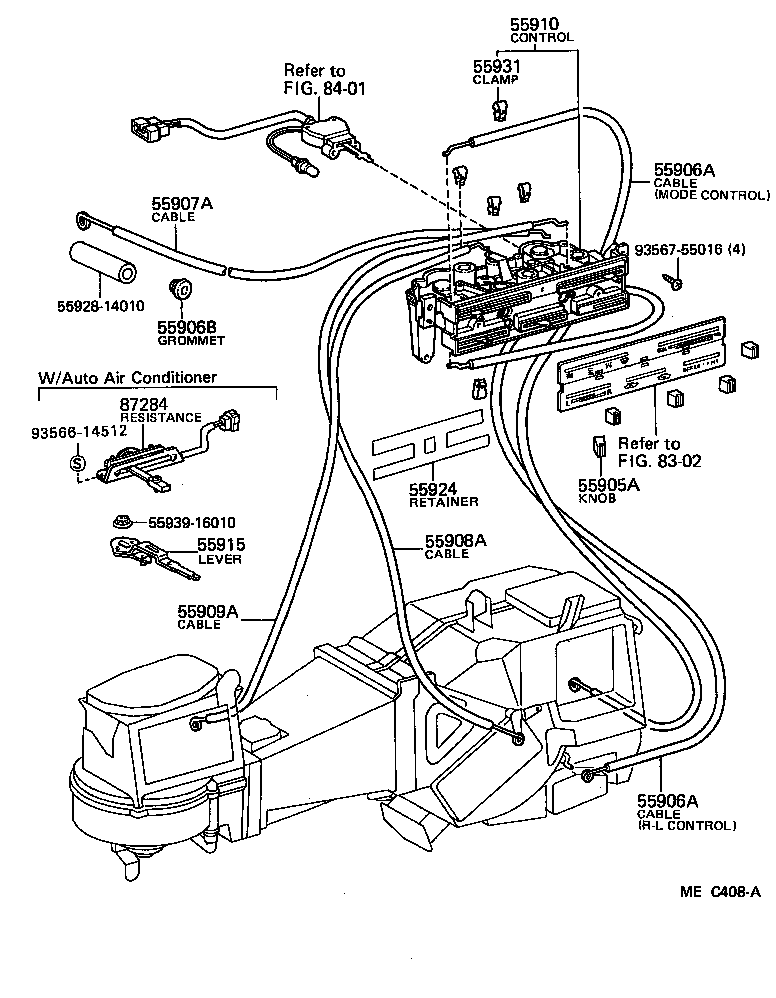

ILLUST NO. 1 OF 3(8107- )

Click highlighted areas on diagram

diagram 55905A 55906A 55906A 55906B 55907A 55908A 55909A 55910 55915 55924 5592814010 55931 5593916010 8302 8401 87284 9356614512 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12060

AA63,GA61,MA6#,RA63,SA60,TA6#

 5
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-14130

AA63,GA61,MA6#,RA63,SA60,TA6#

L=550,MODE CONTROL

 1
55906-14160

AA63,GA61,MA6#,RA63,SA60,TA6#

L=555,R-L CONTROL

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-14130

AA63,GA61,MA6#,RA63,SA60,TA6#

L=550,MODE CONTROL

 1
55906-14160

AA63,GA61,MA6#,RA63,SA60,TA6#

L=555,R-L CONTROL

 1
55906B - GROMMET(FOR HEATER CONTROL CABLE)
90480-01108

AA63,GA61,MA6#,RA63,SA60,TA61,63

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-14220

AA63,GA61,MA6#,RA63,SA60,TA6#

L=710

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-14100

AA63,GA61,MA6#,RA63,SA60,TA6#

L=675

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-14050

AA63,GA61,MA6#,RA63,SA60,TA6#

L=650

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-14290

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
55915 - LEVER, COOLER CONTROL
55917-14140

AA63,GA61,MA6#,RA63,SA60,TA6#

W/*AAC

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-14020

AA63,GA61,MA6#,RA63,SA60,TA6#

 5
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-14070

AA63,GA61,MA6#,RA63,SA60,TA6#

W/*AAC

 1
Common parts
55928-14010
55939-16010
93566-14512
93567-55016
