SA60-BLKFS (1981)
Toyota Celica

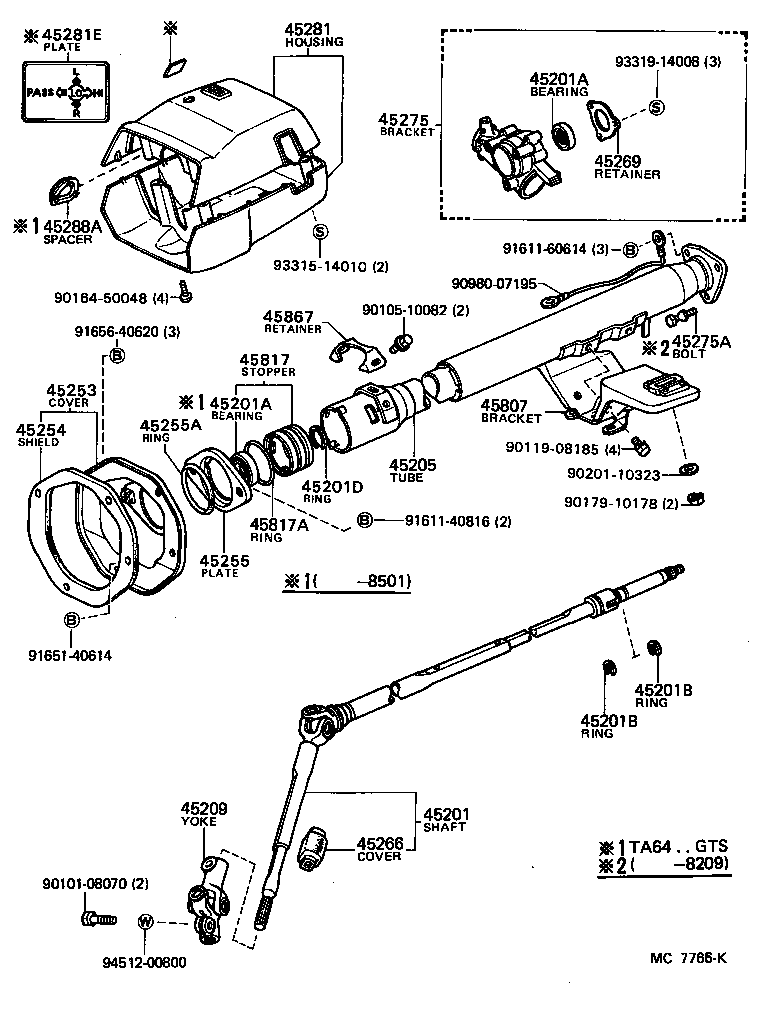

ILLUST NO. 1 OF 3(8107-8507)GTR,GTS,ST,SV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-14010 |
SA60,TA6#..GTR,ST,SV |
1 | ||
| 45210-14020 |
SA60,TA61..GTR,ST,SV |
1 | ||
| 45210-22050 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX W/TILT STRG,W/TILT&POWER STRG |
1 | ||
| 45210-14020 |
SA60,TA6#..GTR,ST,SV |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30007 |
AA63,GA61,MA6#,RA63,SA60,TA6# LWR |
1 | ||
| 90363-18038 |
SA60,TA6#..GTR,GTS,ST,SV UPR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30007 |
AA63,GA61,MA6#,RA63,SA60,TA6# LWR |
1 | ||
| 90363-18038 |
SA60,TA6#..GTR,GTS,ST,SV UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AA63,GA61,MA6#,RA63,SA60,TA6# 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
SA60,TA6#..GTR,GTS,ST,SV 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AA63,GA61,MA6#,RA63,SA60,TA6# 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
SA60,TA6#..GTR,GTS,ST,SV 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-14100 |
SA60,TA6#..GTR,GTS,ST,SV |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-14030 |
SA60 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-14100 |
AA63,RA63,SA60,TA6# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-24011 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
GA61,MA61,RA63,SA60,TA6# |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
SA60,TA6#..GTR,GTS,ST,SV |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-24030 |
SA60,TA6#..GTR,ST,SV |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 45897-12030 |
SA60,TA6#..GTR,ST,SV |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2490001 |
SA60,TA6#..GTR,GTS,ST,SV BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1492201 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX W/TILT STEERING,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1492204 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..LB..(G,GT,L,S,SX) W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-24011 |
SA60,TA6#..GTR,GTS,ST,SV |
1 | ||
| 45082-14050 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX W/TILT STEERING |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24053 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-10082 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 90980-07195 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91651-40614 | ||||
| 91656-40620 | ||||
| 93315-14010 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||

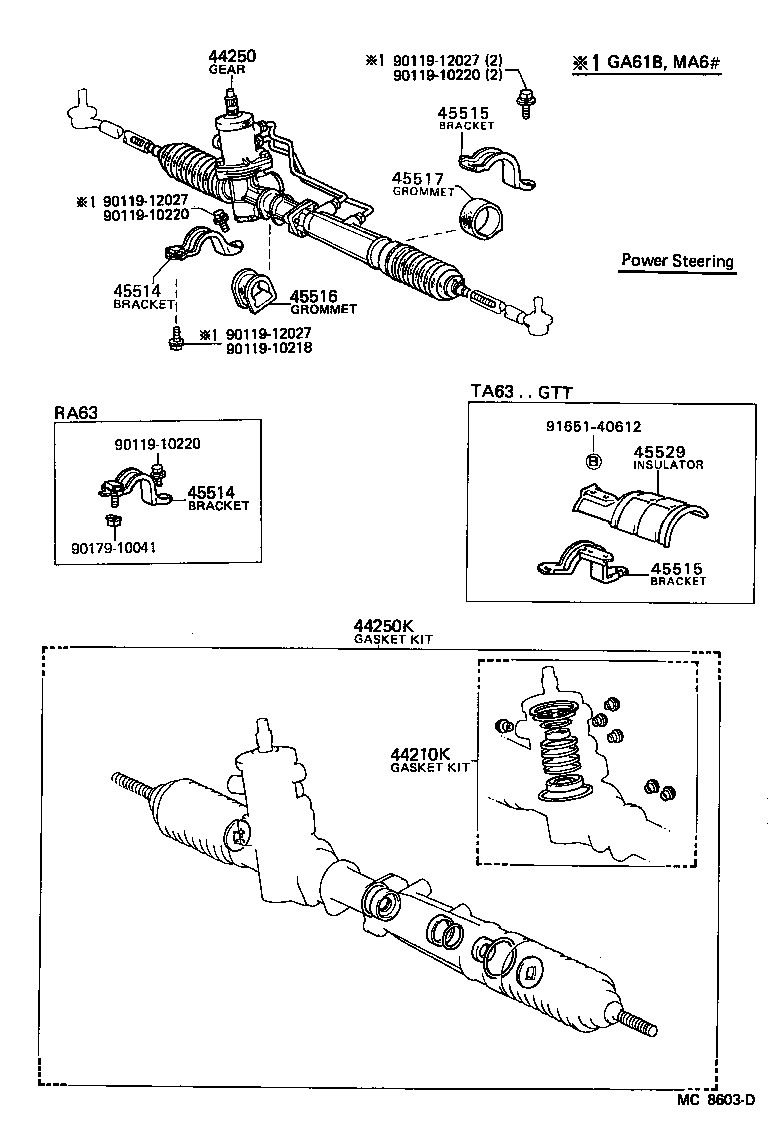

ILLUST NO. 2 OF 3(8107-8507)L ; (8107-8507)AA63,RA63,SA60,TA6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-22030 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-14011 |
TA63;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29015 |
RA63,TA61;GA61,SA60,TA63,64..GTS,GTT,L,ST,SV,SX |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29015 |
RA63,TA61;GA61,SA60,TA63,64..GTS,GTT,L,ST,SV,SX |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-14010 |
AA63,SA60,TA61..GT,GTR,ST,SV |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
SA60,TA6# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
SA60,TA6# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
RA63,SA60,TA61,63..GT,GTR,ST,SV,SX |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
RA63,SA60,TA61,63..GT,GTR,ST,SV,SX |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14020 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-14010 |
TA63;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-14011 |
AA63,SA60,TA61..GT,GTR,ST,SV |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-22010 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-22010 |
RA63,TA61;GA61,SA60,TA63,64..GTS,GTT,L,ST,SV,SX |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV ID=41.5 |
1 | ||
| 90461-10524 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV ID=61.5 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV ID=41.5 |
1 | ||
| 90461-10524 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV ID=61.5 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-14020 |
TA63;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14003 |
RA63,TA61;GA61,SA60,TA63,64..GTS,GTT,L,ST,SV,SX |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14003 |
RA63,TA61;GA61,SA60,TA63,64..GTS,GTT,L,ST,SV,SX |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-22010 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15006 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-15005 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-22010 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-42001 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| Common parts | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 90119-12027 | ||||
| 90179-10041 | ||||
| 91651-40612 | ||||
| 93269-63020 | ||||

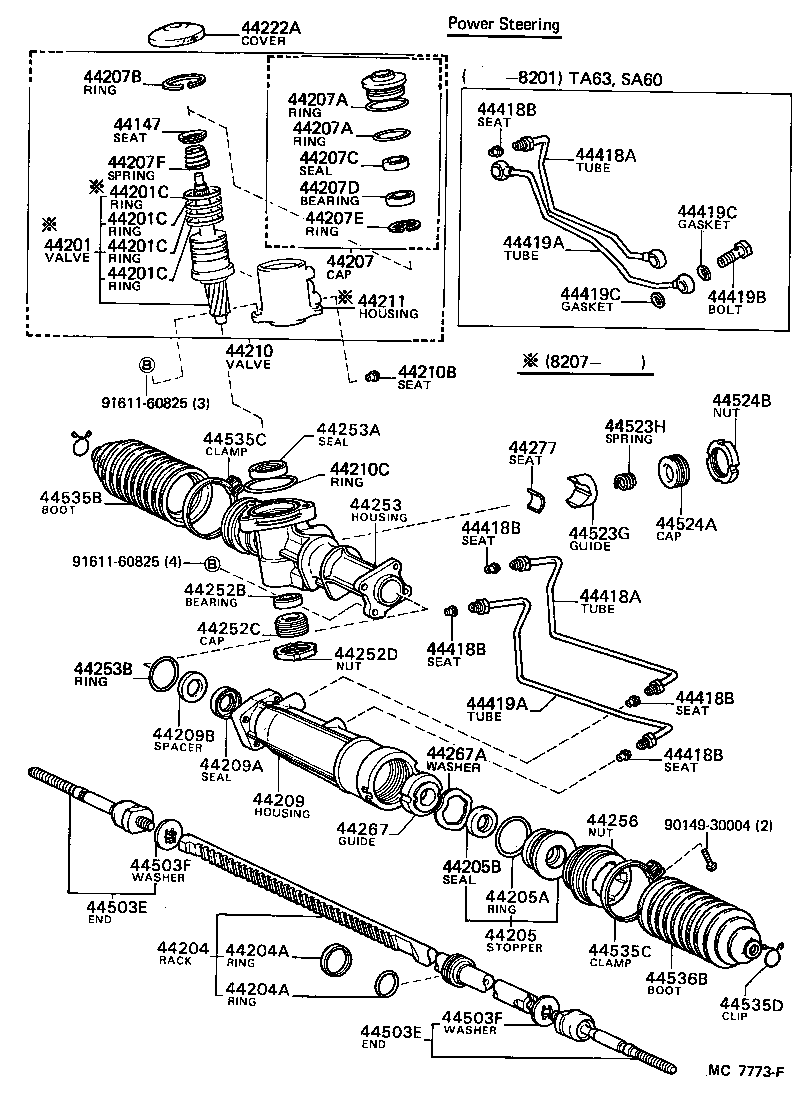

ILLUST NO. 3 OF 3(8107-8201)SA60..ST ; (8107- )AA63,GA61,MA6#,TA63..G,GT,GTT,S,ST,SX ; (8202-8208
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44147 - SEAT, SPOOL VALVE SPRING | ||||
| 44147-24020 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX OUTER |
1 | ||
| 90301-33003 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX OUTER |
1 | ||
| 90301-33003 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX INNER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-24010 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-49004 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90311-25008 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44207 - CAP SUB-ASSY, VALVE | ||||
| 44207-24010 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44207A - RING, O(FOR VALVE CAP SUB-ASSY) | ||||
| 90301-41001 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX OD=45,T=1.9 |
1 | ||
| 90301-37001 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX OD=42.6,T=2.4 |
1 | ||
| 44207A - RING, O(FOR VALVE CAP SUB-ASSY) | ||||
| 90301-41001 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX OD=45,T=1.9 |
1 | ||
| 90301-37001 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX OD=42.6,T=2.4 |
1 | ||
| 44207B - RING, SNAP(FOR VALVE CAP SUB-ASSY) | ||||
| 96151-04500 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44207C - SEAL, OIL(FOR VALVE CAP SUB-ASSY) | ||||
| 90311-19006 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44207D - BEARING(FOR VALVE CAP SUB-ASSY) | ||||
| 90363-19002 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44207E - RING, SNAP(FOR VALVE CAP SUB-ASSY) | ||||
| 96151-03500 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44207F - SPRING, CONICAL(FOR VALVE CAP SUB-ASSY) | ||||
| 90502-15001 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44209A - SEAL(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90311-25006 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90560-26004 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96711-24060 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 96710-02060 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-24010 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-13002 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44252C - CAP(FOR POWER STEERING PINION) | ||||
| 45524-16010 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44252D - NUT(FOR POWER STEERING PINION CAP) | ||||
| 90179-36002 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30002 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44253B - RING, O(FOR POWER STEERING RACK HOUSING) | ||||
| 90301-38001 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44256 - NUT, CYLINDER END STOPPER | ||||
| 44256-24010 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-24010 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44267A - WASHER(FOR RACK END GUIDE) | ||||
| 90206-43001 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-24010 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
4 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29015 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
2 | ||
| 45503-29015 |
GA61,MA6#,RA63,SA60,TA63..G,GT,GTT,S,ST,SX |
2 | ||
| 45503-29016 |
GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29015 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
2 | ||
| 45503-29015 |
GA61,MA6#,RA63,SA60,TA63..G,GT,GTT,S,ST,SX |
2 | ||
| 45503-29016 |
GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14003 |
GA61,MA6#,RA63,SA60,TA63..G,GT,GTT,S,ST,SX |
2 | ||
| 90214-14003 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
2 | ||
| 90214-14005 |
GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14003 |
GA61,MA6#,RA63,SA60,TA63..G,GT,GTT,S,ST,SX |
2 | ||
| 90214-14003 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
2 | ||
| 90214-14005 |
GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-24010 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
GA61,MA6#,RA63,SA60,TA63..G,GT,GTT,S,ST,SX |
1 | ||
| 90501-23024 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 45524-16010 |
GA61,MA6#,RA63,SA60,TA63..G,GT,GTT,S,ST,SX |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
GA61,MA6#,RA63,SA60,TA63..G,GT,GTT,S,ST,SX |
1 | ||
| 90179-36002 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10554 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10554 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
2 | ||
| 90467-18003 |
GA61,MA6#,RA63,SA60,TA63..G,GT,GTT,S,ST,SX |
2 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-60825 | ||||
ILLUST NO. 2 OF 3(8107-8201)SA60..ST ; (8107- )AA63,GA61,MA6#,TA63..G,GT,GTT,S,ST,SX ; (8202-8208
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44210K - GASKET KIT, POWER STEERING CONTROL VALVE OVERHAUL | ||||
| 04455-24010 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 44250K - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-24010 |
GA61,MA61,SA60,TA63..G,GT,S,ST,SX |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
SA60,TA6# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
SA60,TA6# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
RA63,SA60,TA61,63..GT,GTR,ST,SV,SX |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
RA63,SA60,TA61,63..GT,GTR,ST,SV,SX |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14020 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| Common parts | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 90119-12027 | ||||
| 90179-10041 | ||||
| 91651-40612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
