SA60-BLKFS (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 1SU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)1SU

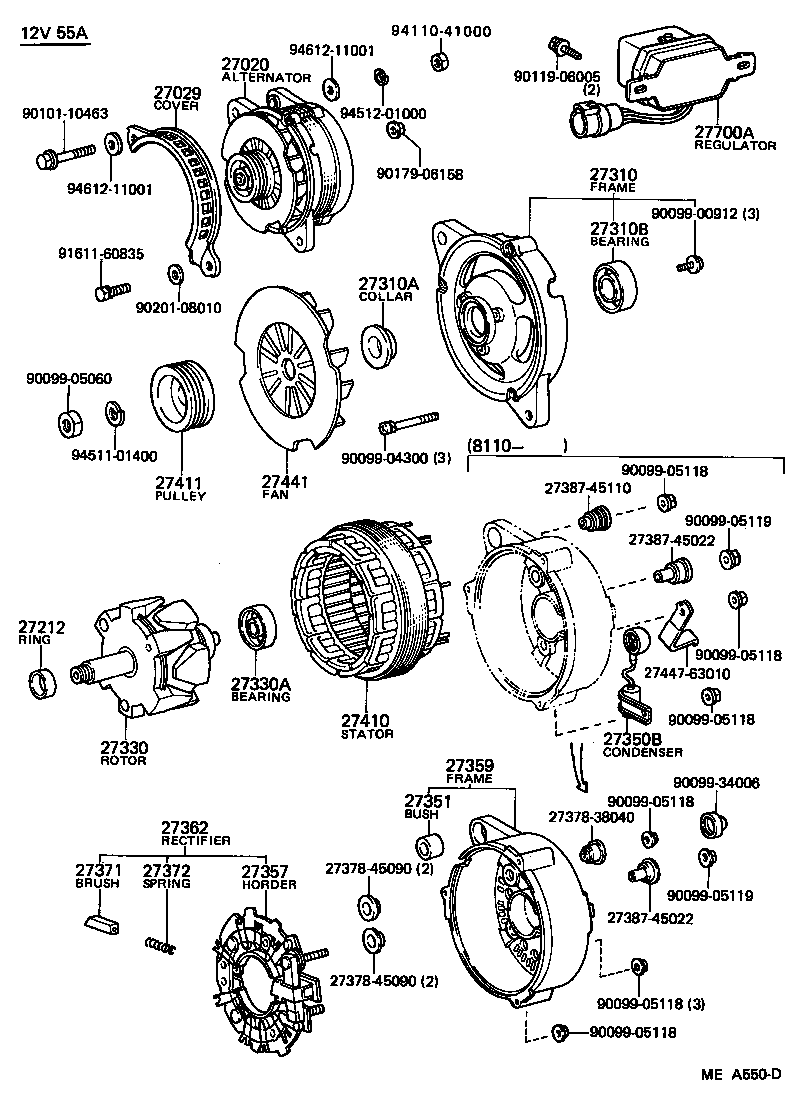

Click highlighted areas on diagram

diagram 27020 27029 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27357 27359 27362 27371 27372 2737838040 2737845090 2737845090 2738745022 2738745022 2738745110 27410 27411 27441 2744763010 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905119 9009934006 9010110463 9011906005 9017906158 9020108010 9161160835 9411041000 9451101400 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-63010

1SU..SA60

12V 55A

 1
27029 - COVER, ALTERNATOR
27029-63010

1SU..SA60

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-63010

1SU..SA60

12V 55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-63010

1SU..SA60

12V 55A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

18RGEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63010

1SU..SA60

12V 55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-63010

1SU..SA60

12V 55A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-63010

1SU..SA60

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-43040

18RGEU,1GEU,5MGEU,1SU,2TGEU,3TGTEU,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,65A

 1
27411 - PULLEY, ALTERNATOR
27411-63010

1SU..SA60

12V 55A

 1
27441 - FAN, ALTERNATOR
27441-45110

1SU..SA60

12V 55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63010

1SU..SA60

12V 55A

 1
Common parts
27378-38040
27378-45090
27387-45022
27387-45110
27447-63010
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90099-34006
90101-10463
90119-06005
90179-06158
90201-08010
91611-60835
94110-41000
94511-01400
94512-01000
94612-11001
