SA60-BCPZS (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

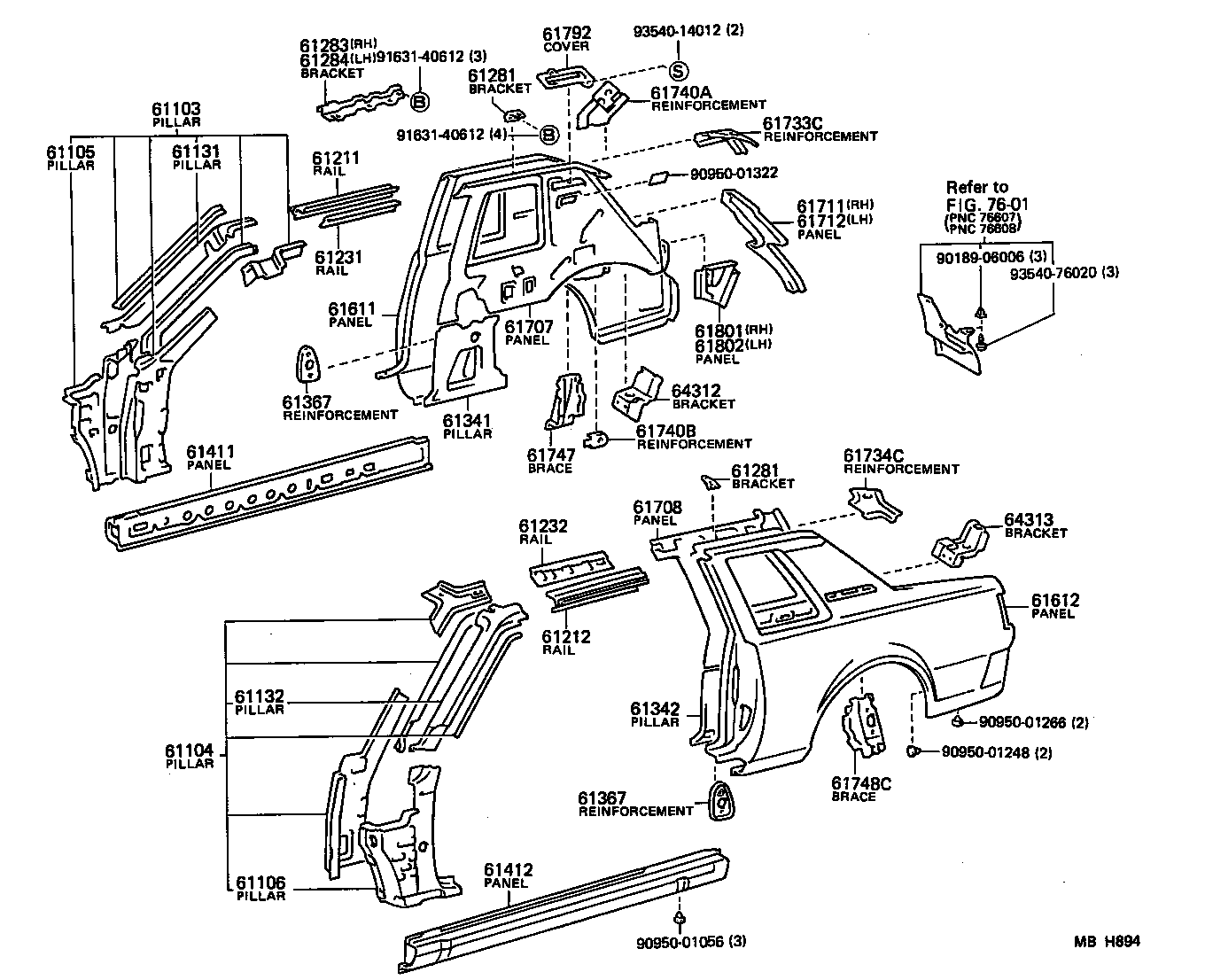

ILLUST NO. 1 OF 2(8107-8507)CP

Click highlighted areas on diagram

diagram 61103 61104 61105 61106 61131 61132 61211 61212 61231 61232 61281 61281 61283 61284 61341 61342 61367 61367 61411 61412 61611 61612 61707 61708 61711 61712 61733C 61734C 61740A 61740B 61747 61748C 61792 61801 61802 64312 64313 7601 9018906006 9095001056 9095001248 9095001266 9095001322 9163140612 9163140612 9354014012 9354076020
Part # Description Qty Price
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-14200

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61022-14230

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
61025-14040

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
61026-14040

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-14170

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-14140

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-14902

AA63,RA63,SA60,TA6#..CP

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-14902

AA63,RA63,SA60,TA6#..CP

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-14130

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
61231-14150

SA60..SX

W/SUN ROOF

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-14150

SA60..SX

W/SUN ROOF

 1
61232-14130

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61281-14030

SA60..SX

 2
61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61281-14030

SA60..SX

 2
61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61283-14030

SA60..SX

 1
61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61284-14030

SA60..SX

 1
61341 - PILLAR, CENTER BODY, INNER LOWER RH
61345-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
61342 - PILLAR, CENTER BODY, INNER LOWER LH
61346-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367-24010

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367-24010

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
61411 - PANEL, ROCKER, OUTER RH
61401-14050

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
61412 - PANEL, ROCKER, OUTER LH
61402-14050

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
61611 - PANEL, QUARTER, RH
61601-14860

AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX)

W/LID OPENER

 1
61612 - PANEL, QUARTER, LH
61602-14730

AA63,RA63,SA60,TA6#..CP

 1
61707 - PANEL SUB-ASSY, QUARTER, INNER RH
61703-14901

AA63,RA63,SA60,TA6#..CP

 1
61708 - PANEL SUB-ASSY, QUARTER, INNER LH
61704-14901

AA63,RA63,SA60,TA6#..CP

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-14060

AA63,RA63,SA60,TA6#..CP

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-14060

AA63,RA63,SA60,TA6#..CP

 1
61740A - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER REAR
61768-14010

AA63,RA63,SA60,TA6#..CP

RH

 1
61769-14010

AA63,RA63,SA60,TA6#..CP

LH

 1
61740B - REINFORCEMENT, SEAT BELT ANCHOR TO ROOF SIDE, INNER
61766-14060

AA63,GA61,MA6#,RA63,SA60,TA6#

UPR

 2
61677-14020

AA63,GA61,MA6#,RA63,SA60,TA6#

LWR,RH

 1
61678-14020

AA63,GA61,MA6#,RA63,SA60,TA6#

LWR,LH

 1
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61747-14020

AA63,RA63,SA60,TA6#..CP

 1
61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61748-14030

AA63,RA63,SA60,TA6#..CP

 1
61792 - COVER, ROOF SIDE INNER SERVICE HOLE
61791-14030

AA63,RA63,SA60,TA6#..CP

RH

 1
61792-14030

AA63,RA63,SA60,TA6#..CP

LH

 1
61801 - PANEL, QUARTER INSIDE, REAR RH
61617-14040

AA63,RA63,SA60,TA6#..CP

 1
61802 - PANEL, QUARTER INSIDE, REAR LH
61618-14050

AA63,RA63,SA60,TA6#..CP

 1
64312 - BRACKET, PACKAGE TRAY, RH
64312-14090

AA63,RA63,SA60,TA6#..CP

 1
64313 - BRACKET, PACKAGE TRAY, LH
64313-14090

AA63,RA63,SA60,TA6#..CP

 1
Common parts
90189-06006
90950-01056
90950-01248
90950-01266
90950-01322
91631-40612
93540-14012
93540-76020
Linked diagrams
7601
