SA60-BCPZS (1983)
Toyota Celica
Production
Aug 1983
-
Jul 1985
Engine
1SU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8107-8507)1SU

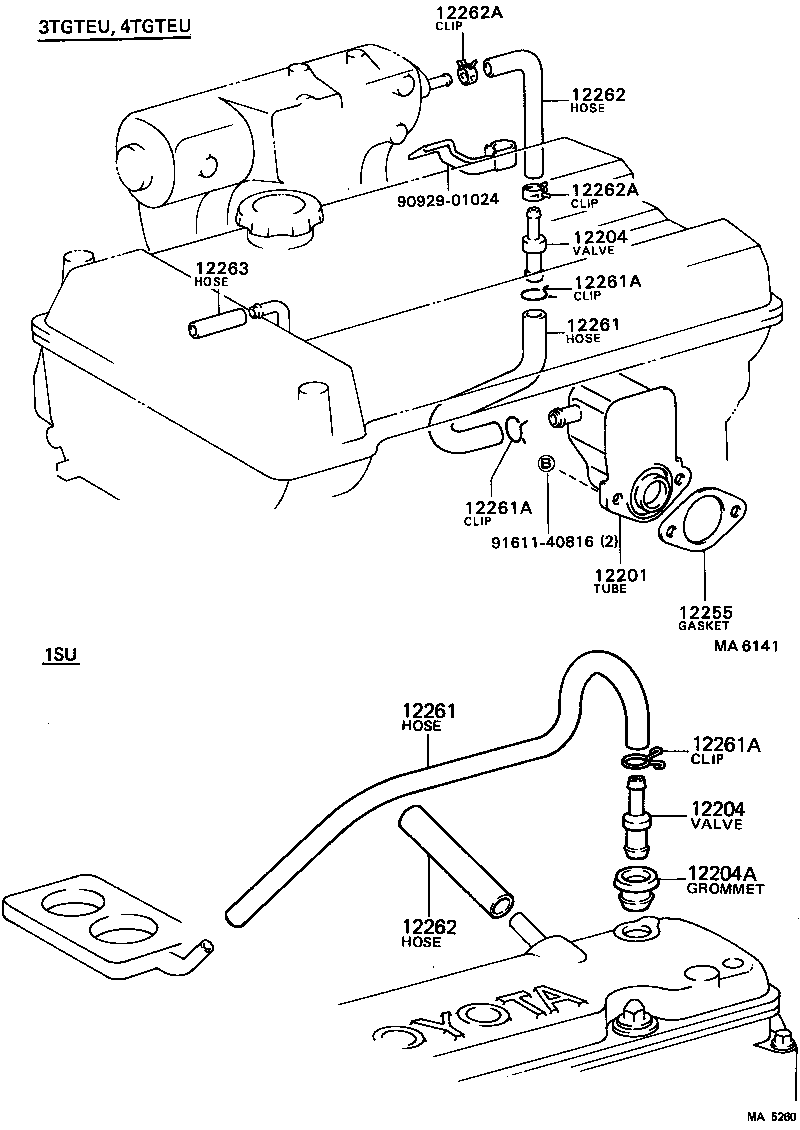

Click highlighted areas on diagram
MA6141,MA5260
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-15020 |
1SU..SA60 |
1 | ||
| 12204-15020 |
1SU..SA60 |
1 | ||
| 12204-63010 |
1SU..SA60 |
1 | ||
| 12204-63010 |
1SU..SA60 |
1 | ||
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-15020 |
1SU..SA60 |
1 | ||
| 12204-15020 |
1SU..SA60 |
1 | ||
| 12204-63010 |
1SU..SA60 |
1 | ||
| 12204-63010 |
1SU..SA60 |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18001 |
1SU..SA60 |
1 | ||
| 90480-18001 |
1SU..SA60 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-63010 |
1SU..SA60 |
1 | ||
| 12261-63010 |
1SU..SA60 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-63010 |
1SU..SA60 |
1 | ||
| 12261-63010 |
1SU..SA60 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-14082 |
1SU..SA60 |
2 | ||
| 90467-14082 |
1SU..SA60 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-14082 |
1SU..SA60 |
2 | ||
| 90467-14082 |
1SU..SA60 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-14082 |
1SU..SA60 |
2 | ||
| 90467-14082 |
1SU..SA60 |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 90445-17046 |
1SU..SA60 |
1 | ||
| 90445-17046 |
1SU..SA60 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 90445-17046 |
1SU..SA60 |
1 | ||
| 90445-17046 |
1SU..SA60 |
1 | ||
| Common parts | ||||
| 90929-01024 | ||||
| 91611-40816 | ||||
