SA60-BCPSS (1981)

Toyota Celica

Production Jul 1981 - Jul 1985
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)CP

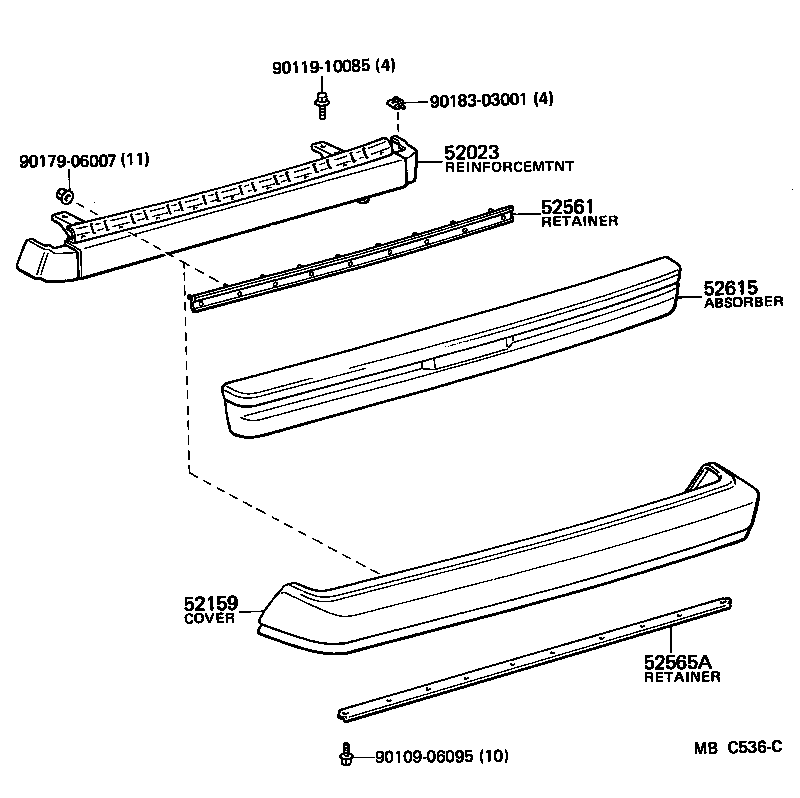

Click highlighted areas on diagram

diagram 52023 52159 52561 52565A 52615 9010906095 9011910085 9017906007 9018303001
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-14080

AA63,RA63,SA60,TA6#..CP

 1
52159 - COVER, REAR BUMPER
52159-14150

AA63,RA63,SA60,TA6#..CP

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-14060

AA63,RA63,SA60,TA6#..CP

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-14060

AA63,RA63,SA60,TA6#..CP

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-14090

AA63,RA63,SA60,TA6#..CP

 1
Common parts
90109-06095
90119-10085
90179-06007
90183-03001
