SA60-BCMZS (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8107- )GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX ; (8308-8507)AA63

Click highlighted areas on diagram

diagram 88453 88460 88460 88460C 88460D 88461A 8846714040 8846714050 8846714050 8846714050 8846714060 8846714060 88470 88470 88470B 88470B 88479 88479 88550 88635A 8868814390 8868814430 8868814540 88716A 88716A 88716B 88716B 8871810050 8871812280 8871812280 8889712120 8889712120 8889712120 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9331514008 9338515010 9338516014 9338516030 9338516030 9338516030 9338516035 9338516040
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-14210

AA63,RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
88460 - CONDENSER ASSY, COOLER
88460-14210

AA63,RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-14560

AA63,SA60

 1
88688-14410

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-14550

AA63,SA60

 1
88688-14400

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12050

AA63,RA63,SA60,TA6#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12050

AA63,RA63,SA60,TA6#

 1
88470B - BOLT, FUSE
90099-04579

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
88470B - BOLT, FUSE
90099-04579

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AA63,GA61,MA6#,RA63,SA60,TA6#

400G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AA63,GA61,MA6#,RA63,SA60,TA6#

400G

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-14730

AA63,RA63,SA60,TA6#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-14730

AA63,RA63,SA60,TA6#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-14740

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
88716-14860

AA63,SA60

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-14740

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
88716-14860

AA63,SA60

 1
Common parts
88467-14040
88467-14050
88467-14060
88688-14390
88688-14430
88688-14540
88718-10050
88718-12280
88897-12120
90179-06032
93315-14008
93385-15010
93385-16014
93385-16030
93385-16035
93385-16040

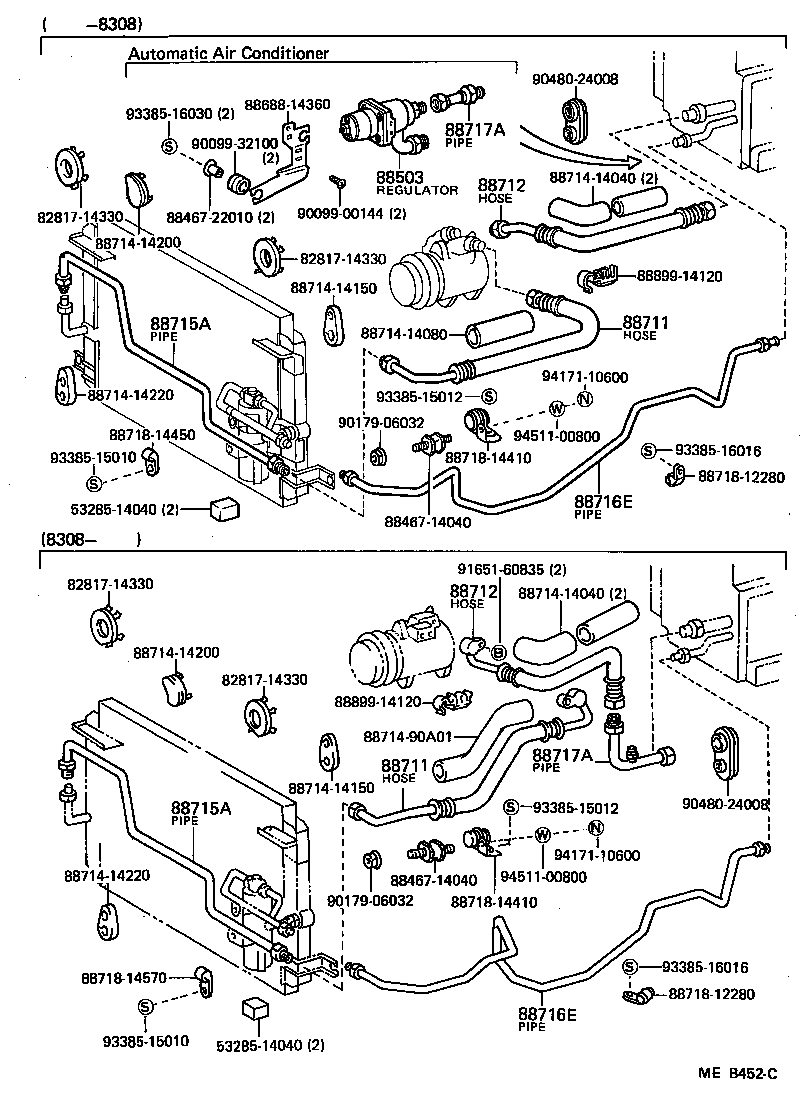

ILLUST NO. 2 OF 2(8107-8507)SA60

Click highlighted areas on diagram

diagram 5328514040 5328514040 8281714330 8281714330 8281714330 8281714330 8846714040 8846714040 8846722010 88503 8868814360 88711 88711 88712 88712 8871414040 8871414040 8871414080 8871414150 8871414150 8871414200 8871414200 8871414220 8871414220 8871490A01 88715A 88715A 88716E 88716E 88717A 88717A 8871812280 8871812280 8871814410 8871814410 8871814450 8871814570 8889914120 8889914120 9009900144 9009932100 9017906032 9017906032 9048024008 9048024008 9165160835 9338515010 9338515010 9338515012 9338515012 9338516016 9338516016 9338516030 9417110600 9417110600 9451100800 9451100800
Part # Description Qty Price
88503 - REGULATOR ASSY, PRESSURE
88503-14070

RA63,SA60

W/*AAC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14470

SA60

 1
88711-14570

SA60

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14470

SA60

 1
88711-14570

SA60

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14710

SA60

 1
88712-14740

SA60

W/*AAC

 1
88712-14890

SA60

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14710

SA60

 1
88712-14740

SA60

W/*AAC

 1
88712-14890

SA60

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14170

SA60

 1
88715-14140

RA63,SA60

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14170

SA60

 1
88715-14140

RA63,SA60

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14761

AA63,SA60

 1
88716-14760

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14761

AA63,SA60

 1
88716-14760

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-14270

SA60

 1
88717-14240

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

W/*AAC

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-14270

SA60

 1
88717-14240

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

W/*AAC

 1
Common parts
53285-14040
82817-14330
88467-14040
88467-22010
88688-14360
88714-14040
88714-14080
88714-14150
88714-14200
88714-14220
88714-90A01
88718-12280
88718-14410
88718-14450
88718-14570
88899-14120
90099-00144
90099-32100
90179-06032
90480-24008
91651-60835
93385-15010
93385-15012
93385-16016
93385-16030
94171-10600
94511-00800
