SA60-BCMSS (1981)
Toyota Celica

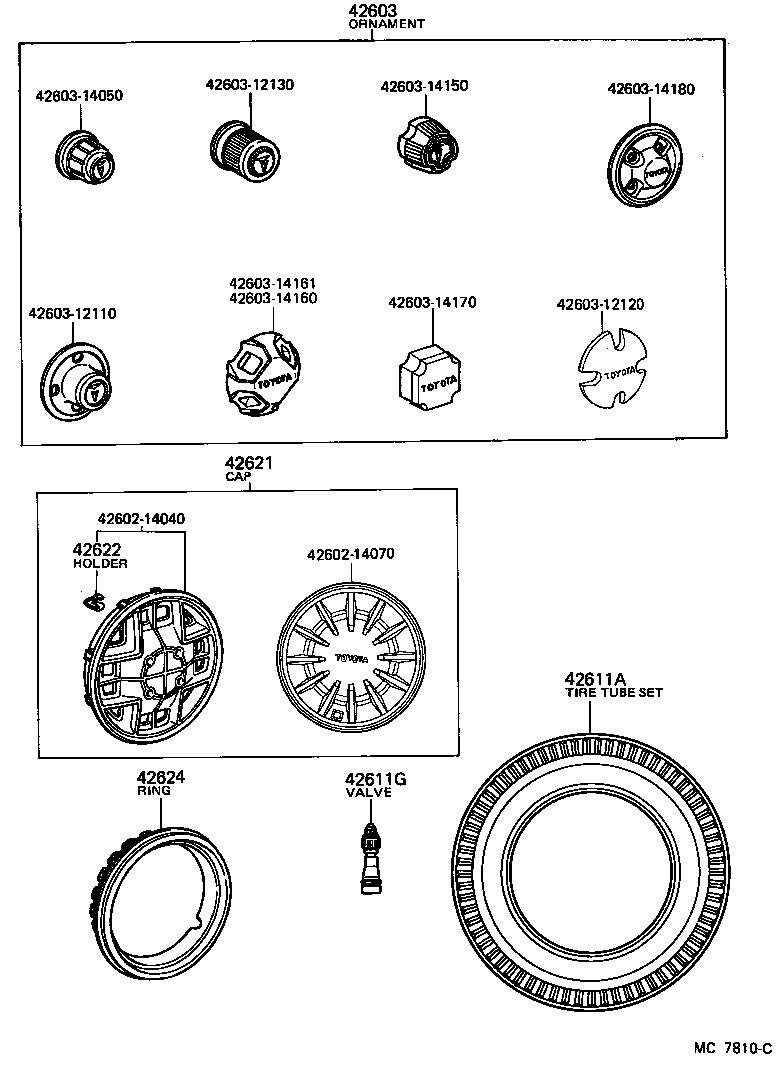

ILLUST NO. 1 OF 2(8107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-12110 |
SA60..ST |
4 | ||
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42652-32030 |
SA60 SPARE,T125/70D14 |
1 | ||
| 42652-12410 |
SA60 165SR13 |
5 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
5 | ||
| Common parts | ||||
| 42602-14040 | ||||
| 42602-14070 | ||||
| 42603-12110 | ||||
| 42603-12120 | ||||
| 42603-12130 | ||||
| 42603-14050 | ||||
| 42603-14150 | ||||
| 42603-14160 | ||||
| 42603-14161 | ||||
| 42603-14170 | ||||
| 42603-14180 | ||||

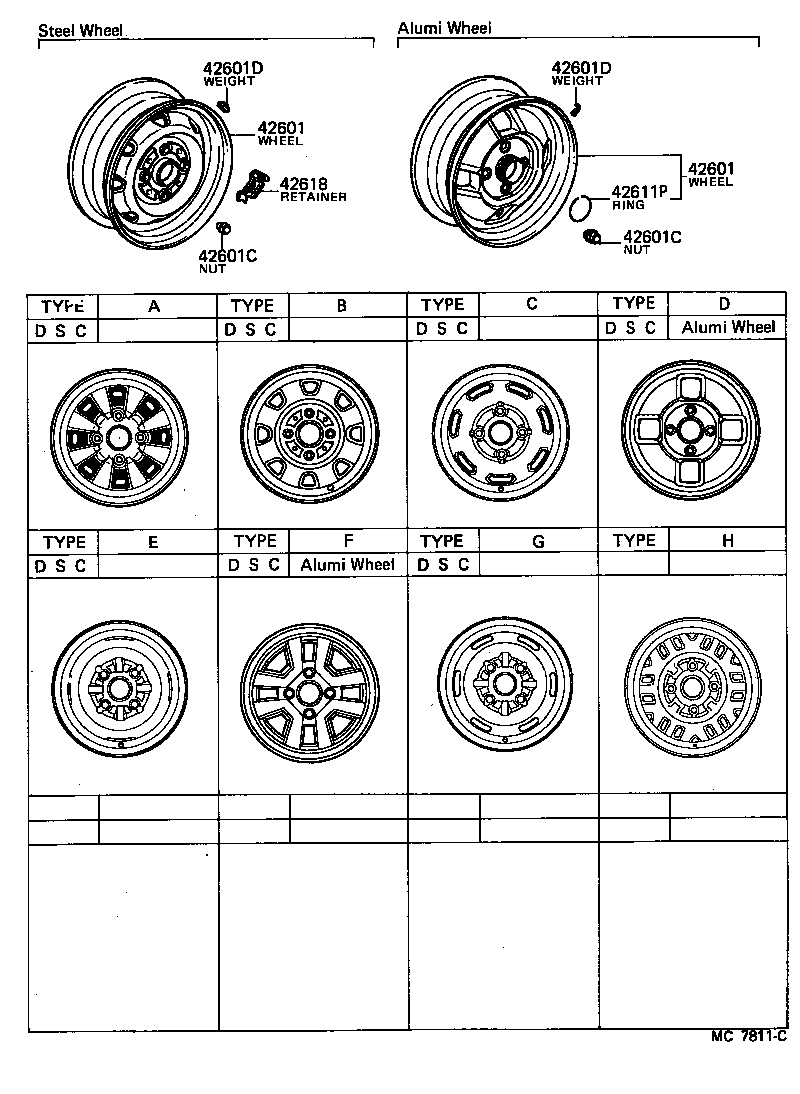

ILLUST NO. 2 OF 2(8107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-12500 |
SA60..ST,SV 13X4.5J,4.5J-13,TYPE B |
5 | ||
| 42611-10190 |
SA60 4T−15,ｽﾍﾟｱﾀｲﾔ,SPARE TIRE |
1 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-12500 |
SA60..ST,SV 13X4.5J,4.5J-13,TYPE B |
5 | ||
| 42611-10190 |
SA60 4T−15,ｽﾍﾟｱﾀｲﾔ,SPARE TIRE |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
GA61,TA63..GTT,L,S,ST,SX;AA63,MA63,RA63,SA60,TA61,64..GT,GTR,GTS,S,ST,SV CAP NUT |
16 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
GA61,TA63..GTT,L,S,ST,SX;AA63,MA63,RA63,SA60,TA61,64..GT,GTR,GTS,S,ST,SV CAP NUT |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03041 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 10G,厚さ=7.5,10G |
1 | ||
| 90942-03017 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 20G,厚さ=8,20G |
1 | ||
| 90942-03022 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 40G,厚さ=9.5,40G |
1 | ||
| 90942-03025 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 50G,厚さ=9.5,50G |
1 | ||
| 90942-03027 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 60G,厚さ=9.5,60G |
1 | ||
| 90942-03029 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 70G,厚さ=9.5,70G |
1 | ||
| 90942-03099 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 25G,25G |
1 | ||
| 90942-03031 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 80G,厚さ=9.5,80G |
1 | ||
| 90942-03020 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 30G,厚さ=10,30G |
1 | ||
| 90942-03098 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 15G,15G |
1 | ||
| 90942-03101 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 45G,45G |
1 | ||
| 90942-03102 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 55G,55G |
1 | ||
| 90942-03109 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 75G,75G |
1 | ||
| 90942-03108 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 65G,65G |
1 | ||
| 90942-03100 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 35G,35G |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03041 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 10G,厚さ=7.5,10G |
1 | ||
| 90942-03017 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 20G,厚さ=8,20G |
1 | ||
| 90942-03022 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 40G,厚さ=9.5,40G |
1 | ||
| 90942-03025 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 50G,厚さ=9.5,50G |
1 | ||
| 90942-03027 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 60G,厚さ=9.5,60G |
1 | ||
| 90942-03029 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 70G,厚さ=9.5,70G |
1 | ||
| 90942-03099 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 25G,25G |
1 | ||
| 90942-03031 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 80G,厚さ=9.5,80G |
1 | ||
| 90942-03020 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 30G,厚さ=10,30G |
1 | ||
| 90942-03098 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 15G,15G |
1 | ||
| 90942-03101 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 45G,45G |
1 | ||
| 90942-03102 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 55G,55G |
1 | ||
| 90942-03109 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 75G,75G |
1 | ||
| 90942-03108 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 65G,65G |
1 | ||
| 90942-03100 |
GA61..L,S;AA63,MA63,RA63,SA60,TA6#..GT,GTR,GTS,GTT,S,ST,SV,SX 35G,35G |
1 | ||
| 42618 - RETAINER, WHEEL CAP | ||||
| 42618-12030 |
SA60..ST |
20 | ||
