SA60-BCMFS (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)1SU

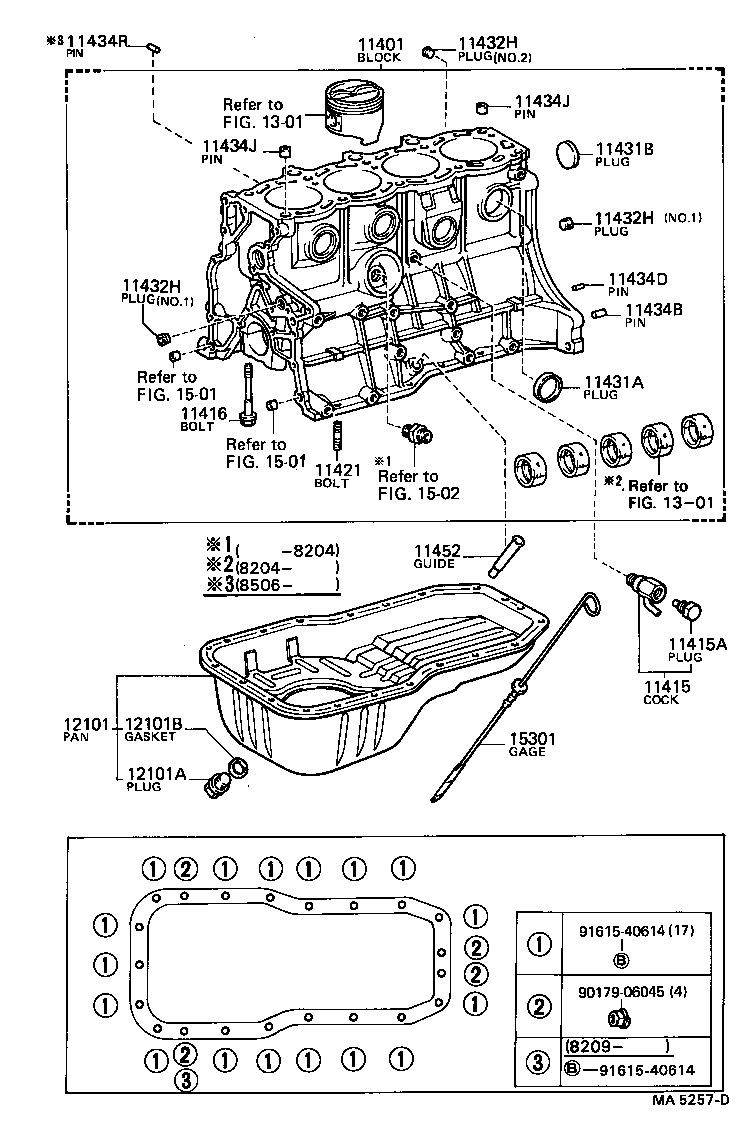

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11421 11431A 11431B 11432H 11432H 11432H 11434B 11434D 11434J 11434J 11434R 11452 12101 12101A 12101B 1301 1301 1501 1501 1502 15301 9017906045 9161540614 9161540614
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69085

1SU..SA60

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09076

1SU..SA60

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90109-14003

1SU..SA60

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

1SU..SA60

*10-1.25PX67-18

 14
11421 - BOLT, STUD(FOR OIL PAN)
90116-06022

1SU..SA60

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1SU..SA60

OD=35

 10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

1SU..SA60

OD=40

 5
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1SU..SA60

NO.1

 2
90344-52003

1SU..SA60

NO.2

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1SU..SA60

NO.1

 2
90344-52003

1SU..SA60

NO.2

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1SU..SA60

NO.1

 2
90344-52003

1SU..SA60

NO.2

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1SU..SA60

長さ=22,外径=10,L=22,OD=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1SU..SA60

長さ=14,外径=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1SU..SA60

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1SU..SA60

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-06003

1SU..SA60

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-63010

1SU..SA60

 1
12101 - PAN SUB-ASSY, OIL
12101-69055

1SU..SA60

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1SU..SA60

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1SU..SA60

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-63010

1SU..SA60

 1
Common parts
90179-06045
91615-40614
Linked diagrams
1301
1501
1502
