SA60-BCKFS (1981)
Toyota Celica

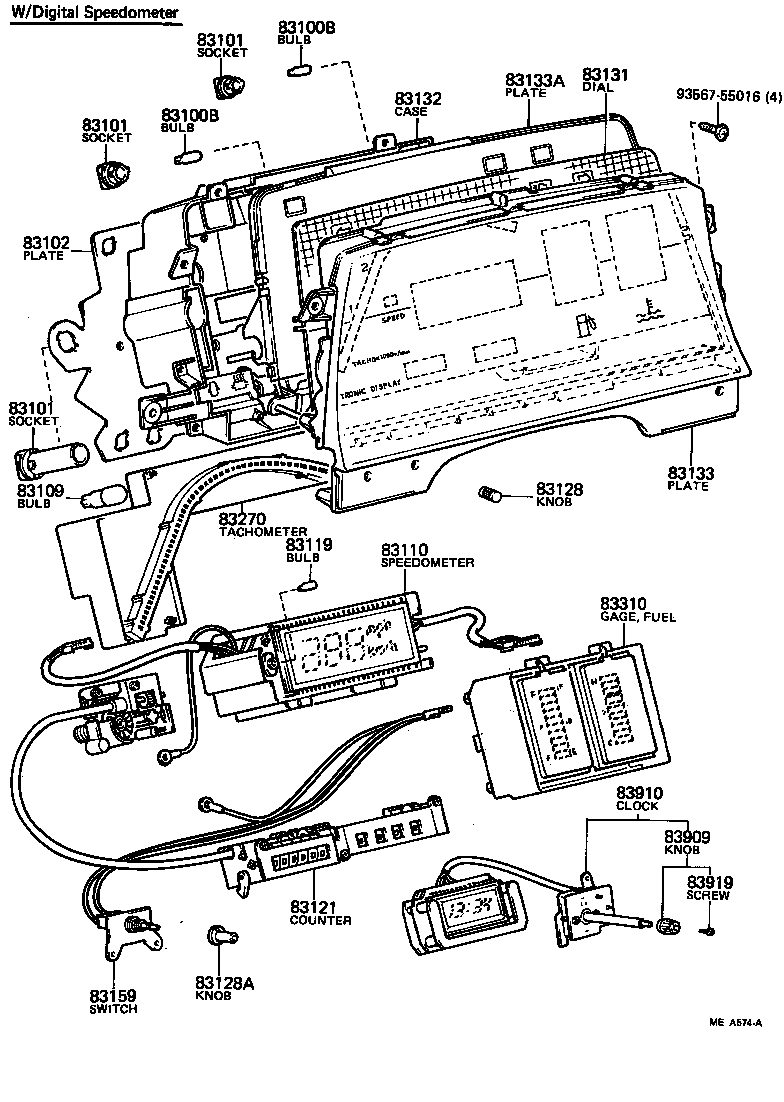

ILLUST NO. 1 OF 2(8107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 3.4W,12V 3.4W |
14 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 3.4W,12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 1.4W |
12 | ||
| 83101-14030 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 1.4W |
12 | ||
| 83101-14030 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 3.4W |
14 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-14610 |
SA60,TA61,63..GTR,ST,SV |
1 | ||
| 83247-14611 |
SA60,TA61..GTR,ST,SV |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-14600 |
SA60,TA63..ST,SV |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-14600 |
SA60,TA63..ST,SV |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14510 |
AA63,GA61,MA63,RA63,SA60,TA6# |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-14110 |
SA60..SV |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-14510 |
SA60..SV |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-14550 |
SA60..SV |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-14510 |
RA63,SA60,TA61,63..GT,GTR,ST,SV,SX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-14510 |
GA61,MA63,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-14530 |
SA60 |
1 | ||
| 83244-14510 |
MA63,RA63,SA60,TA6# |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-14510 |
GA61,MA63,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14300 |
AA63,GA61,MA63,RA63,SA60,TA6#..G,GT,GTS,GTT,L,S,SX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14300 |
AA63,GA61,MA63,RA63,SA60,TA6#..G,GT,GTS,GTT,L,S,SX |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||

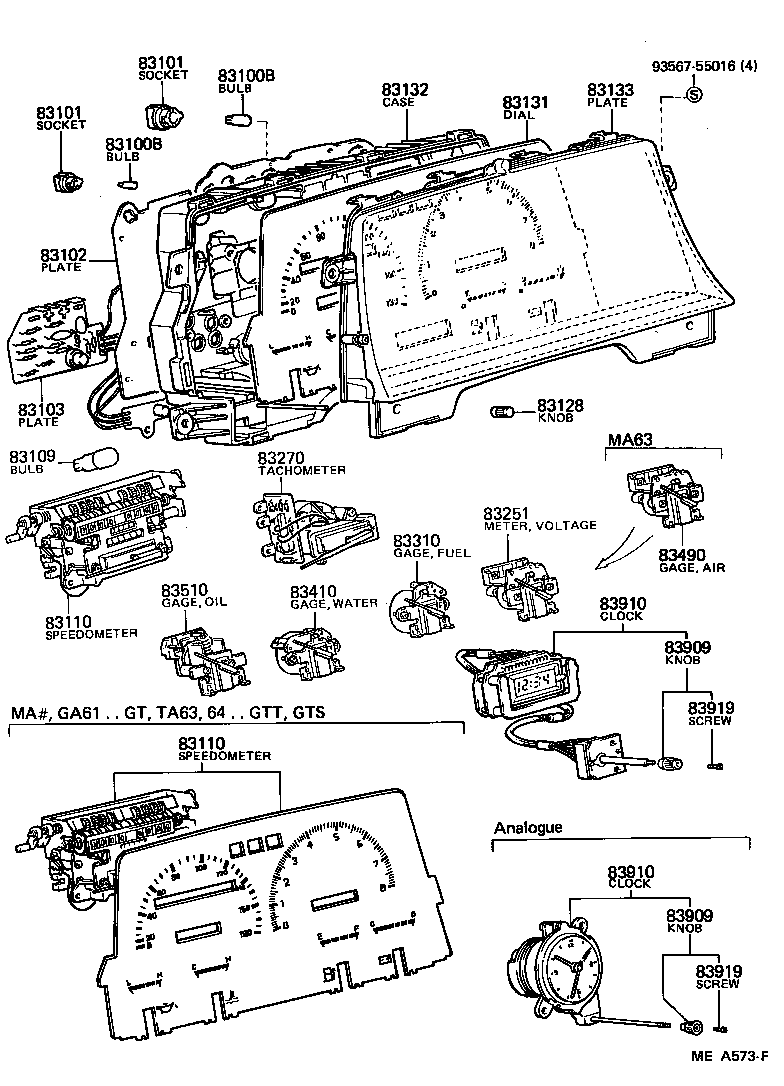

ILLUST NO. 1 OF 2(8107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 3.4W,12V 3.4W |
14 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 3.4W,12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 1.4W |
12 | ||
| 83101-14030 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 1.4W |
12 | ||
| 83101-14030 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 1.4W |
12 | ||
| 83101-14030 |
AA63,GA61,MA6#,RA63,SA60,TA6# 12V 3.4W |
14 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-14610 |
SA60,TA61,63..GTR,ST,SV |
1 | ||
| 83247-14611 |
SA60,TA61..GTR,ST,SV |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-14600 |
SA60,TA63..ST,SV |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14510 |
AA63,GA61,MA63,RA63,SA60,TA6# |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-14110 |
SA60..SV |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-14510 |
SA60..SV |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-14550 |
SA60..SV |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-14510 |
RA63,SA60,TA61,63..GT,GTR,ST,SV,SX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-14510 |
GA61,MA63,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14300 |
AA63,GA61,MA63,RA63,SA60,TA6#..G,GT,GTS,GTT,L,S,SX |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||

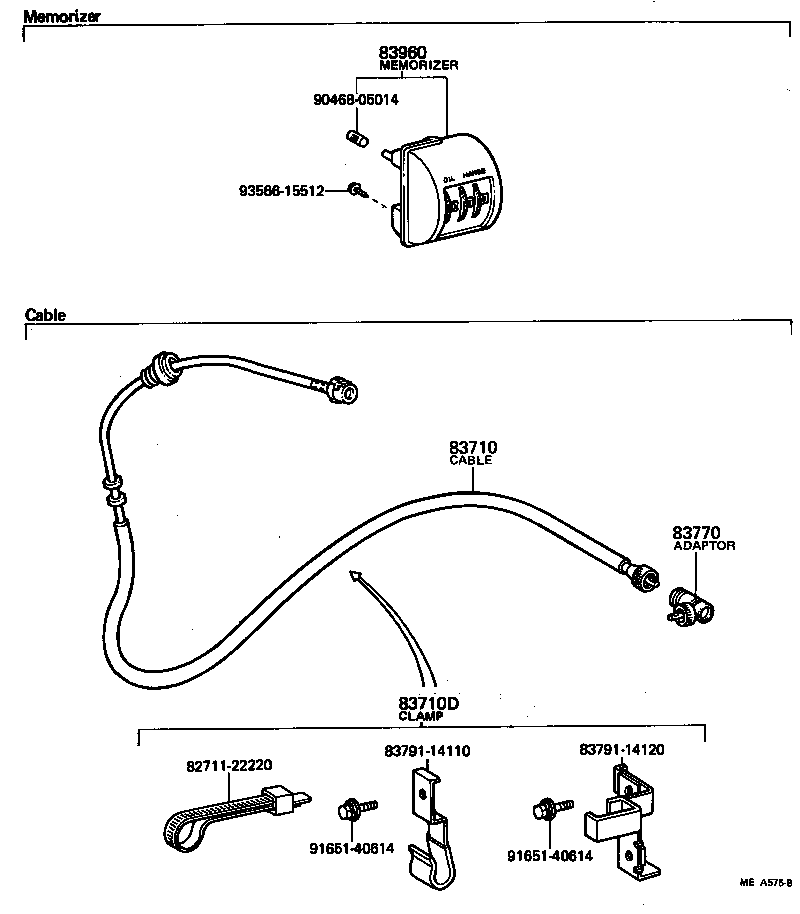

ILLUST NO. 2 OF 2(8107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-14280 |
SA60..MTM |
1 | ||
| 83710D - CLAMP (FOR SPEEDOMETER CABLE) | ||||
| 82711-22220 |
AA63,SA60..MTM |
1 | ||
| 83791-14110 |
SA60 |
1 | ||
| 83960 - MEMORIZER ASSY | ||||
| 83960-14020 |
GA61,MA63,SA60,TA6#..GTR,GTS,GTT,L,S,ST,SV |
1 | ||
| Common parts | ||||
| 82711-22220 | ||||
| 83791-14110 | ||||
| 83791-14120 | ||||
| 90468-05014 | ||||
| 91651-40614 | ||||
| 93566-15512 | ||||
