RA63-BLMQF (1981)
Toyota Celica
Production
Jul 1981
-
Aug 1982
Engine
18RGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8107- )

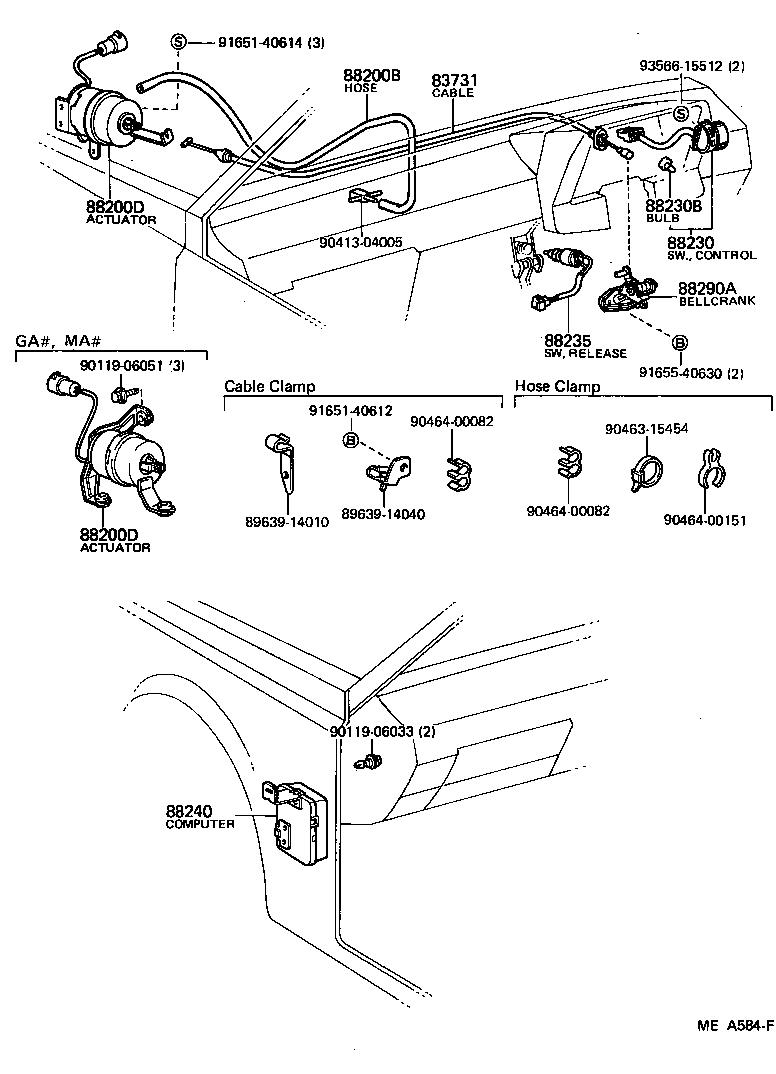

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83731 - CABLE, CRUISE CONTROL | ||||
| 83731-14010 |
RA63,TA63..GT,SX |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 95411-19995 |
RA63,TA63..GT,SX *H,L=950,ﾏｰｸ=#* |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-14030 |
RA63,TA63..GT,SX |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-14030 |
RA63,TA63..GT,SX |
1 | ||
| 88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL | ||||
| 88230-14070 |
GA61,MA61,RA63,TA63..G,GT,S,SX |
1 | ||
| 88230B - BULB, CRUISE CONTROL(AUTO DRIVE) CONTROL SWITCH | ||||
| 90981-11024 |
GA61,MA61,RA63,TA63..G,GT,S,SX 12V 1.4W |
2 | ||
| 88235 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE | ||||
| 88280-35010 |
RA63,TA63..5F..(GT,SX) |
1 | ||
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-14050 |
GA61,MA61,RA63,TA63..G,GT,S,SX |
1 | ||
| 88290A - BELLCRANK ASSY, CRUISE CONTROL | ||||
| 88290-14010 |
MA61,RA63,TA63..GT,SX |
1 | ||
| Common parts | ||||
| 89639-14010 | ||||
| 89639-14040 | ||||
| 90119-06033 | ||||
| 90119-06051 | ||||
| 90413-04005 | ||||
| 90463-15454 | ||||
| 90464-00082 | ||||
| 90464-00151 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91655-40630 | ||||
| 93566-15512 | ||||
