RA63-BCMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

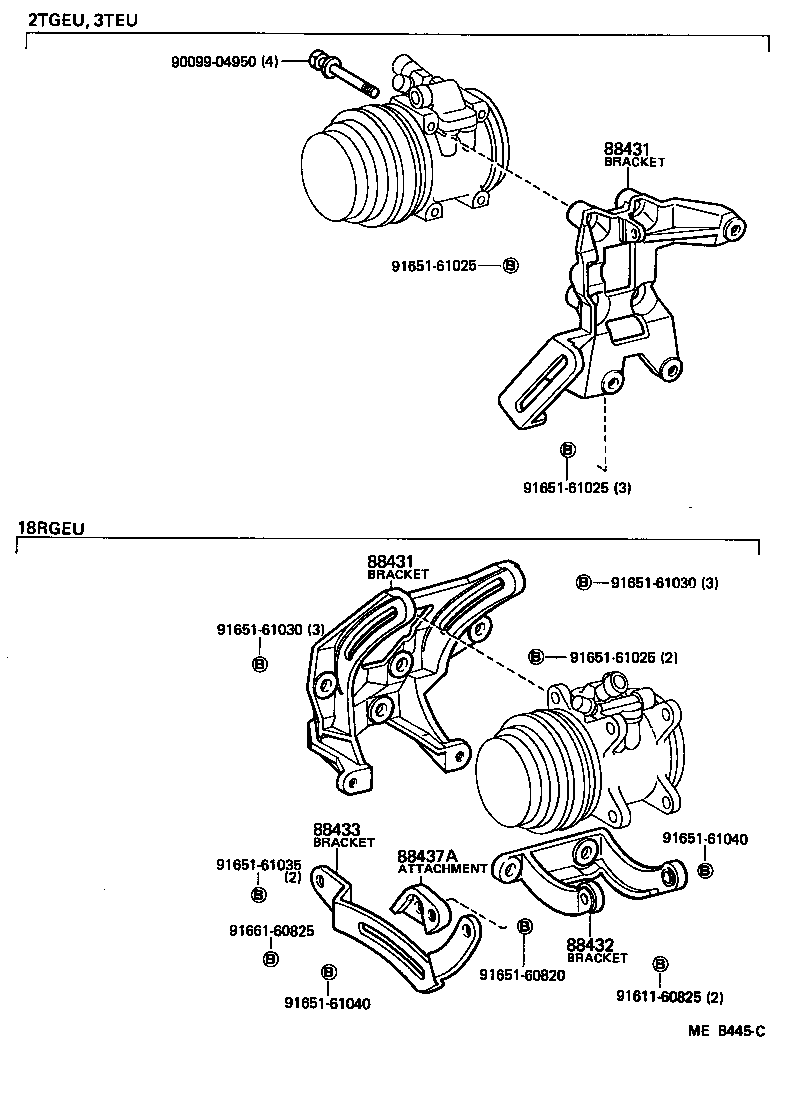

ILLUST NO. 3 OF 3(8107-8308)RA63,TA61,63..GT,GTR,ST,SX

Click highlighted areas on diagram

diagram 88431 88431 88432 88433 88437A 9009904950 9161160825 9165160820 9165161025 9165161025 9165161025 9165161030 9165161030 9165161035 9165161040 9165161040 9166160825
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-14120

TA61,63..GT,GTR,ST,SX

 1
88431-20150

RA63

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-14120

TA61,63..GT,GTR,ST,SX

 1
88431-20150

RA63

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88431-20160

RA63

 1
88433 - BRACKET, COMPRESSOR MOUNTING, NO.3
88437-20100

RA63

 1
88437A - ATTACHMENT, COMPRESSOR
88437-20070

RA63

 1
Common parts
90099-04950
91611-60825
91651-60820
91651-61025
91651-61030
91651-61035
91651-61040
91661-60825

ILLUST NO. 3 OF 3(8107- )MA61 ; (8107- )G,L,S

Click highlighted areas on diagram

diagram 88431 88431 88437A 88595 9009901468 9009901468 9009901477 9009904950 9009904950 9009904950 9009904950 9011910142 9011910142 9011910158 9111160865 9111161030 9111161065 9111270820 9111271025 9165161060 9451100800 9451101000 9461110800 9461111000
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-14120

TA61,63..GT,GTR,ST,SX

 1
88431-20150

RA63

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-14120

TA61,63..GT,GTR,ST,SX

 1
88431-20150

RA63

 1
88437A - ATTACHMENT, COMPRESSOR
88437-20070

RA63

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

MA6#,TA61,63..G,GT,GTR,S,ST,SX

 1
Common parts
90099-01468
90099-01477
90099-04950
90119-10142
90119-10158
91111-60865
91111-61030
91111-61065
91112-70820
91112-71025
91651-61060
94511-00800
94511-01000
94611-10800
94611-11000

ILLUST NO. 2 OF 3(8107- )

Click highlighted areas on diagram

diagram 88301 88302 88310A 88320 88330 88330B 88330C 88403 88595
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-14010

MA61,RA63,TA61;GA61,MA63,TA63..G,L,S,ST,SX

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

MA61,RA63,TA61;GA61,MA63,SA60,TA63,64..G,GTS,GTT,L,S,ST,SV,SX

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-51230

RA63

 1
99322-50950

TA61,63..GT,GTR,ST,SX

 1
88320 - COMPRESSOR ASSY, COOLER
88320-14260

RA63

 1
88320-14330

TA61,63..GT,GTR,ST,SX

 1
88330 - CLUTCH ASSY, MAGNET
88410-14090

MA61,RA63,TA61;GA61,MA63,TA63..G,L,S,ST,SX

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

GA61..G,L,S;AA63,MA6#,RA63,SA60,TA6#

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07114

GA61..G,L,S;AA63,MA6#,RA63,TA6#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14030

GA61..G,L,S;AA63,MA6#,RA63,SA60,TA6#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

MA6#,TA61,63..G,GT,GTR,S,ST,SX

 1

ILLUST NO. 1 OF 3(8107- )

Click highlighted areas on diagram

diagram 1603 16361A 44310A 4503 8719 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00850

18RGEU..RA63

 1
44310A - BELT, V(FOR VANE PUMP)
99332-00875

RA63

長さ=875

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-51230

RA63

 1
99322-50950

TA61,63..GT,GTR,ST,SX

 1
Linked diagrams
1603
4503
8719

ILLUST NO. 1 OF 3(8107- )

Click highlighted areas on diagram

diagram 1603 16361A 44310A 4503 8719 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00850

18RGEU..RA63

 1
44310A - BELT, V(FOR VANE PUMP)
99332-00875

RA63

長さ=875

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-51230

RA63

 1
99322-50950

TA61,63..GT,GTR,ST,SX

 1
Linked diagrams
1603
4503
8719
