RA63-BCMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

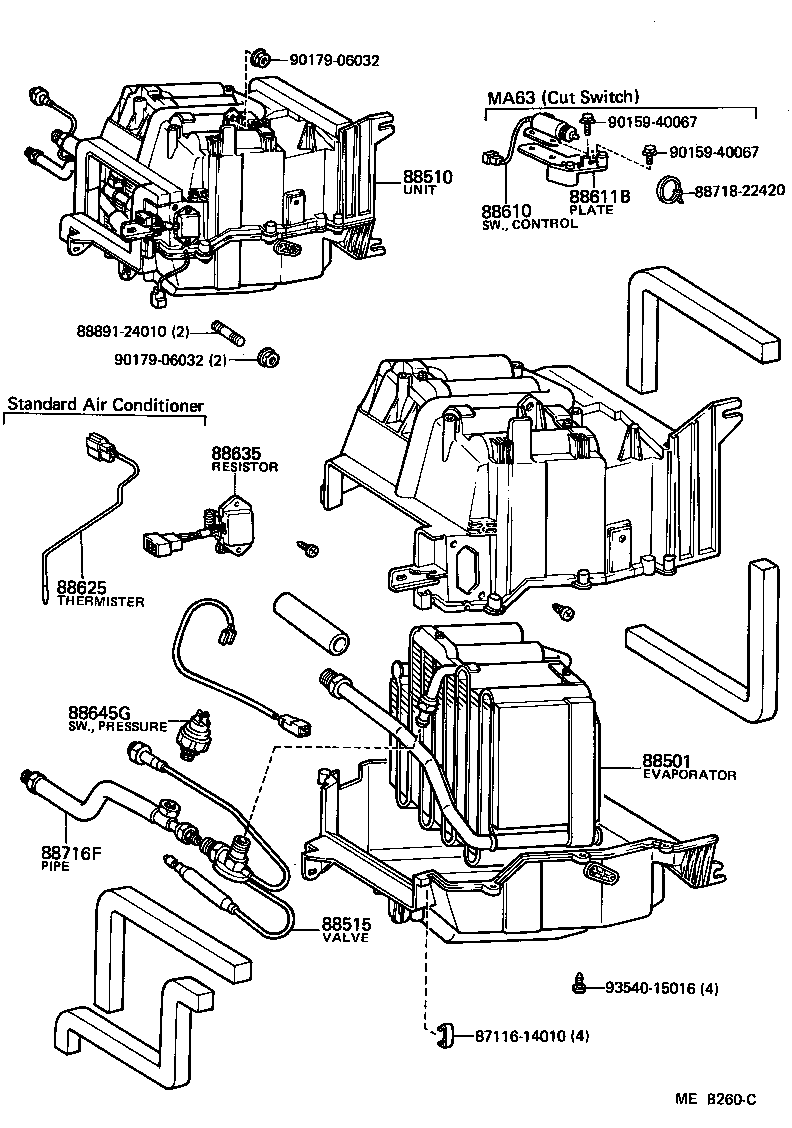

ILLUST NO. 1 OF 2(8107- )

Click highlighted areas on diagram

diagram 8711614010 88501 88510 88515 88610 88611B 88625 88635 88645G 88716F 8871822420 8889124010 9015940067 9015940067 9017906032 9017906032 9354015016
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-14180

GA61,MA61,RA63,SA60,TA6#

 1
88501-14210

GA61,MA61,RA63,SA60,TA6#

W/*AAC

 1
88510 - UNIT ASSY, COOLER
88510-14320

GA61,MA61,RA63,SA60,TA6#

 1
88510-14350

GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX

W/*AAC

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

GA61,MA61,RA63,SA60,TA6#

 1
88515-14040

GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX

W/*AAC

 1
88625 - THERMISTOR, COOLER, NO.1
88625-90A00

GA61,MA61,RA63,SA60,TA6#

STD AIR CONDITIONER

 1
88635 - RESISTOR, COOLER UNIT BLOWER
88635-14050

GA61,MA61,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX

W/*AAC

 1
88645G - SWITCH, PRESSURE
88645-30250

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-24010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
Common parts
87116-14010
88718-22420
88891-24010
90159-40067
90179-06032
93540-15016

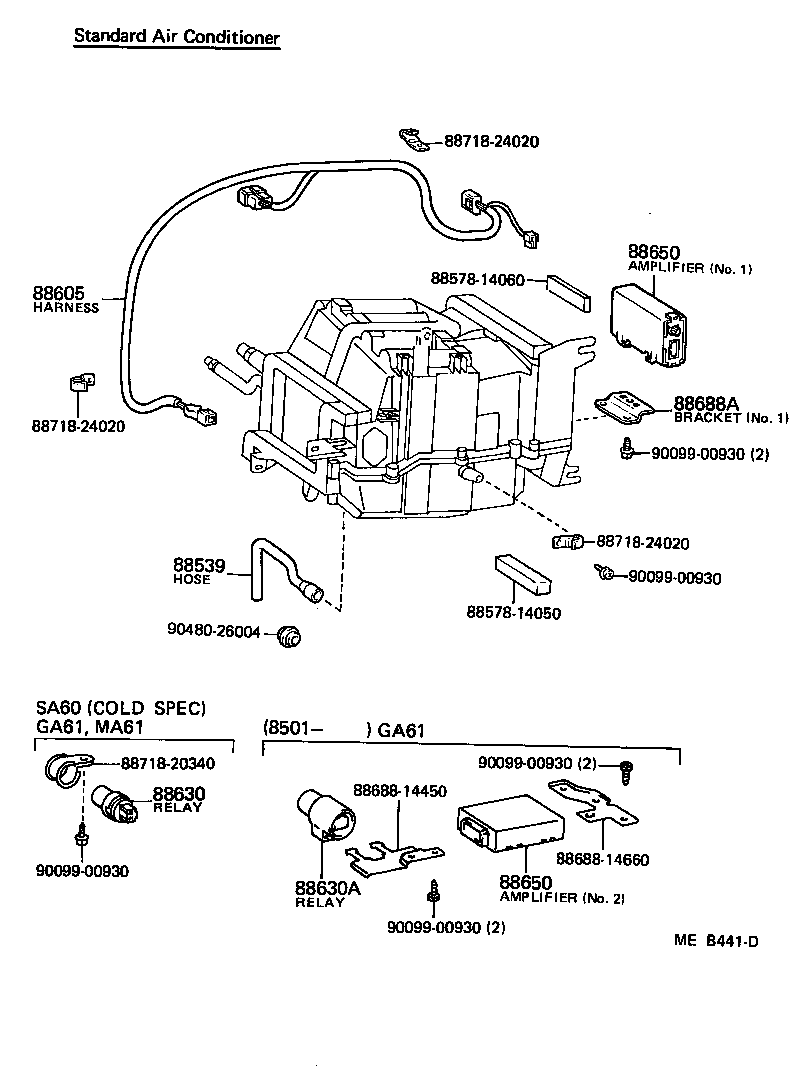

ILLUST NO. 2 OF 2(8107- )

Click highlighted areas on diagram

diagram 88539 8857814050 8857814060 88605 88630 88630A 88650 88650 8868814450 8868814660 88688A 8871820340 8871824020 8871824020 8871824020 9009900930 9009900930 9009900930 9009900930 9009900930 9048026004
Part # Description Qty Price
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-24010

GA61,MA6#,RA63,SA60,TA6#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-14370

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

W/*AAC

 1
88605-14410

RA63,TA6#

 1
88630 - RELAY ASSY, COOLER
90987-03001

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14130

GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX

NO.1,W/*AAC

 1
88650-14150

RA63,TA6#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14130

GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX

NO.1,W/*AAC

 1
88650-14150

RA63,TA6#

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-14320

AA63,GA61,MA6#,RA63,SA60,TA6#

NO.1

 1
Common parts
88578-14050
88578-14060
88688-14450
88688-14660
88718-20340
88718-24020
90099-00930
90480-26004

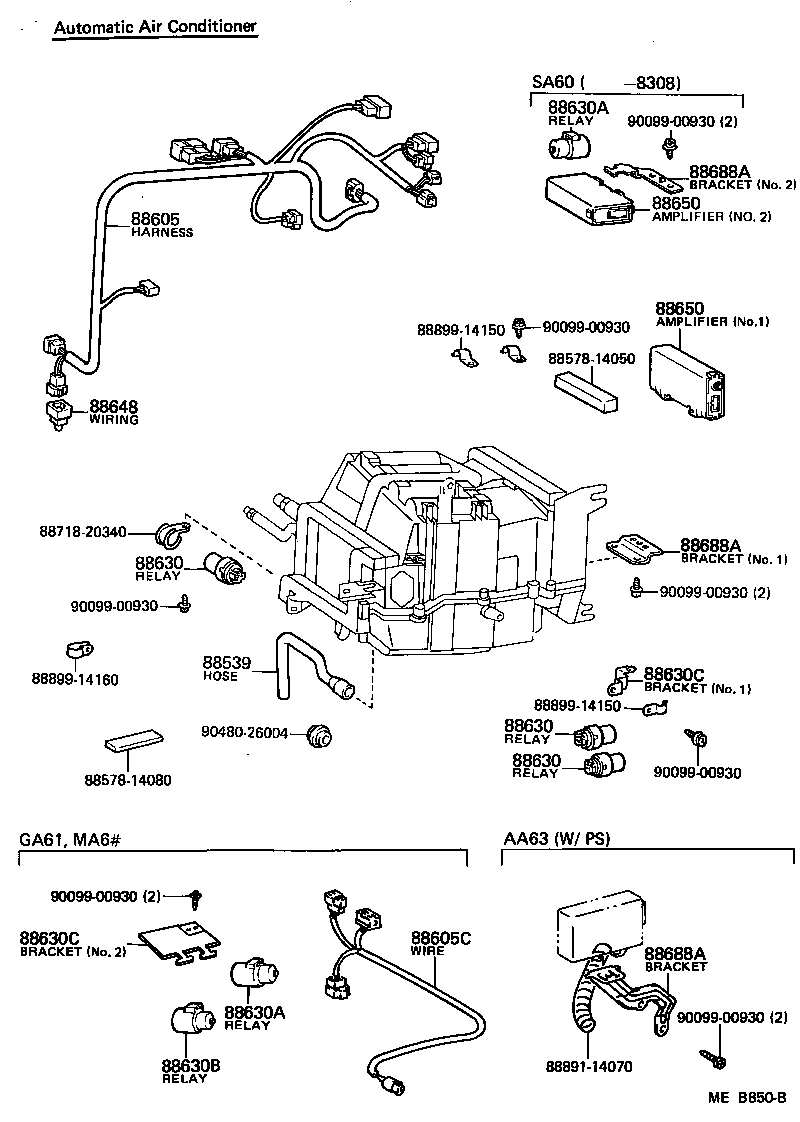

ILLUST NO. 2 OF 2(8107- )

Click highlighted areas on diagram

diagram 88539 8857814050 8857814080 88605 88605C 88630 88630 88630 88630A 88630A 88630B 88630C 88630C 88648 88650 88650 88688A 88688A 88688A 8871820340 8889114070 8889914150 8889914150 8889914160 9009900930 9009900930 9009900930 9009900930 9009900930 9009900930 9009900930 9048026004
Part # Description Qty Price
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-24010

GA61,MA6#,RA63,SA60,TA6#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-14370

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

W/*AAC

 1
88605-14410

RA63,TA6#

 1
88630 - RELAY ASSY, COOLER
90987-03001

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
88630 - RELAY ASSY, COOLER
90987-03001

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
88630 - RELAY ASSY, COOLER
90987-03001

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
88630C - BRACKET, COOLER RELAY
88688-14340

AA63,GA61,MA6#,RA63,SA60,TA6#

W/*AAC,NO.1

 1
88630C - BRACKET, COOLER RELAY
88688-14340

AA63,GA61,MA6#,RA63,SA60,TA6#

W/*AAC,NO.1

 1
88648 - WIRING, COOLER, NO.1
88648-14110

RA63,TA61,63..GT,GTR,ST,SX

W/*AAC

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14130

GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX

NO.1,W/*AAC

 1
88650-14150

RA63,TA6#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14130

GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTR,L,S,ST,SV,SX

NO.1,W/*AAC

 1
88650-14150

RA63,TA6#

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-14320

AA63,GA61,MA6#,RA63,SA60,TA6#

NO.1

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-14320

AA63,GA61,MA6#,RA63,SA60,TA6#

NO.1

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-14320

AA63,GA61,MA6#,RA63,SA60,TA6#

NO.1

 1
Common parts
88578-14050
88578-14080
88718-20340
88891-14070
88899-14150
88899-14160
90099-00930
90480-26004
