RA63-BCMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )

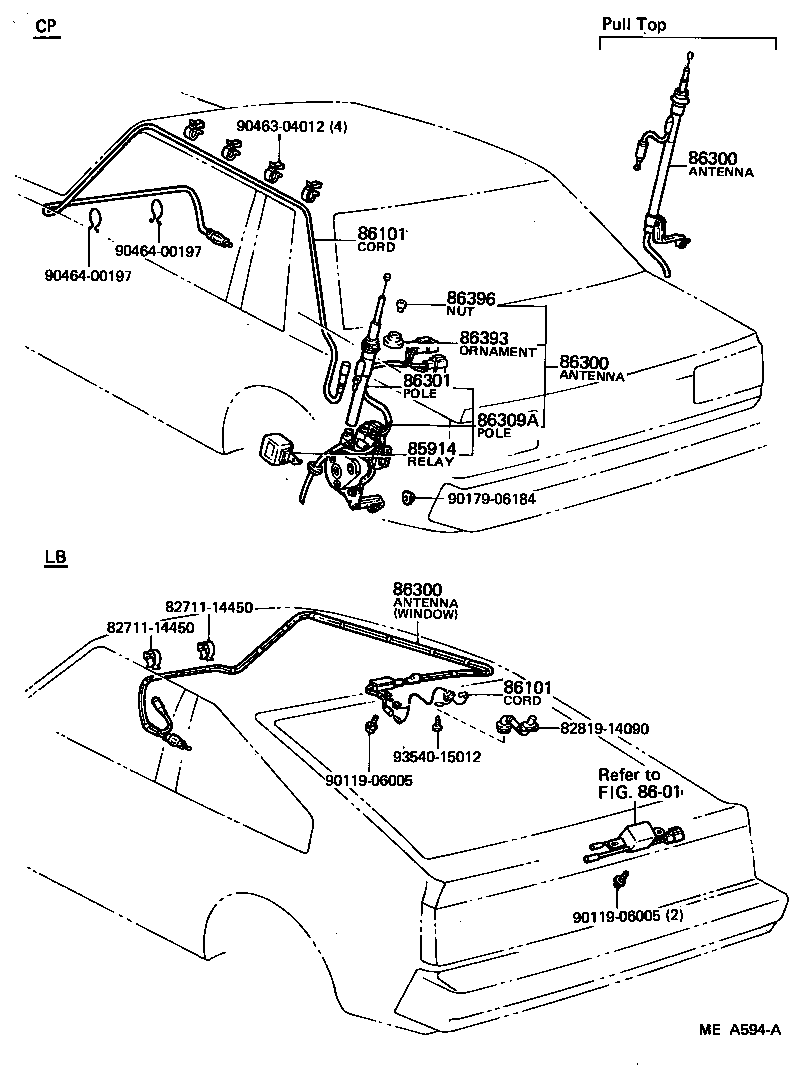

Click highlighted areas on diagram

diagram 8271114450 8271114450 8281914090 85914 8601 86101 86101 86300 86300 86300 86301 86309A 86393 86396 9011906005 9011906005 9017906184 9046304012 9046400197 9046400197 9354015012
Part # Description Qty Price
85914 - RELAY, MOTOR ANTENNA CONTROL
85914-14010

RA63,SA60,TA6#..CP..(4FC,5F)

W/MOTOR DRIVE ANTENNA

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-14280

AA63,RA63,SA60,TA6#..CP

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-14280

AA63,RA63,SA60,TA6#..CP

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-14320

AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX)

MOTOR DRIVE ANTENNA,W/RELAY

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-14320

AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX)

MOTOR DRIVE ANTENNA,W/RELAY

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-14320

AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX)

MOTOR DRIVE ANTENNA,W/RELAY

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-14251

AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX)

W/MOTOR DRIVE ANTENNA

 1
86309A - POLE SUB-ASSY, MOTOR ANTENNA
86309-14190

AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX)

W/MOTOR DRIVE ANTENNA

 1
86393 - ORNAMENT, ANTENNA
86392-14050

AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX)

 1
86396 - NUT, ANTENNA
86396-14040

AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX)

 1
Common parts
82711-14450
82819-14090
90119-06005
90179-06184
90463-04012
90464-00197
93540-15012
Linked diagrams
8601
