RA63-BCMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )

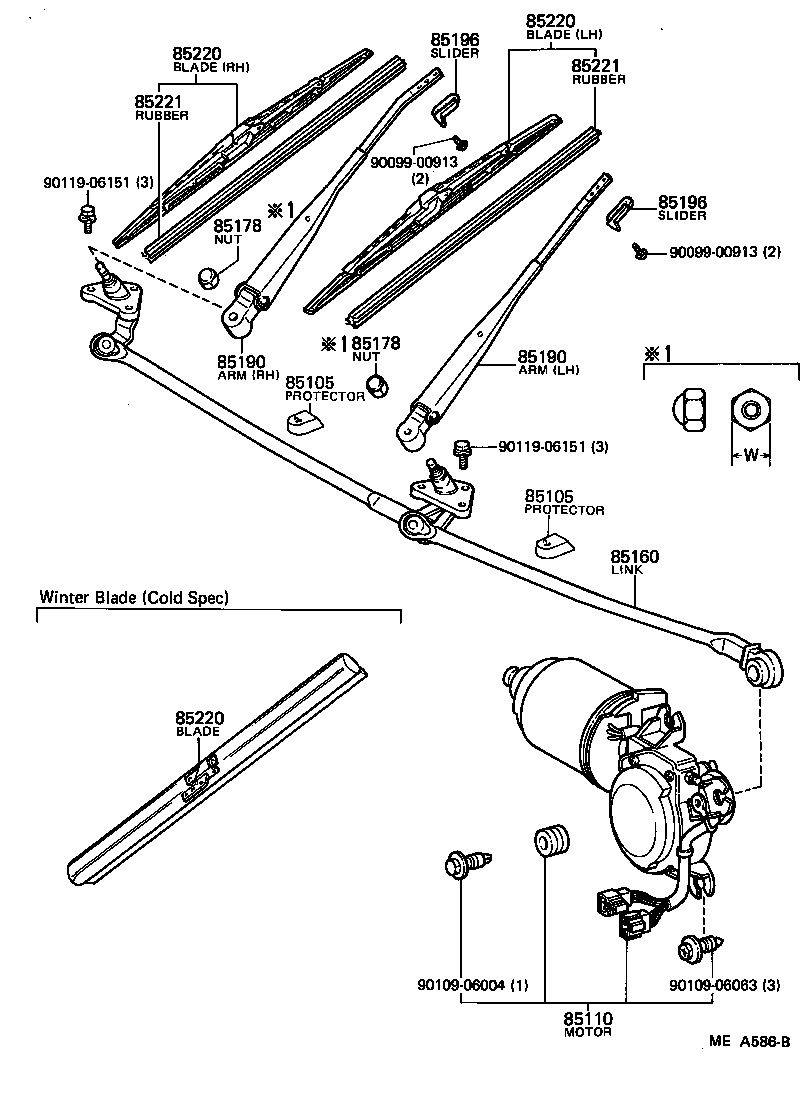

Click highlighted areas on diagram

diagram 85105 85105 85110 85160 85178 85178 85190 85190 85196 85196 85220 85220 85220 85221 85221 9009900913 9009900913 9010906004 9010906063 9011906151 9011906151
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-14200

GA61,MA6#,RA63,TA61,63..G,GT,L,S,SX

W/RISE UP WIPER(W/WIPER ARM SLIDER)

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-14240

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08013

GA61,MA61,RA63,SA60,TA6#

W=14

 2
90176-08029

AA63,GA61,MA6#,RA63,SA60,TA6#

W=12

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08013

GA61,MA61,RA63,SA60,TA6#

W=14

 2
90176-08029

AA63,GA61,MA6#,RA63,SA60,TA6#

W=12

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-14360

GA61,MA6#,RA63,SA60,TA6#

RH

 1
85210-14090

GA61,MA6#,RA63,TA61,63..G,GT,L,S,SX

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-14360

GA61,MA6#,RA63,SA60,TA6#

RH

 1
85210-14090

GA61,MA6#,RA63,TA61,63..G,GT,L,S,SX

LH

 1
85196 - SLIDER, WIPER ARM
85196-14050

GA61,MA61,RA63,TA6#..G,GT,L,S,SX

LH

 1
85196-14040

GA61,MA61,RA63,TA6#..G,GT,L,S,SX

RH

 1
85196 - SLIDER, WIPER ARM
85196-14050

GA61,MA61,RA63,TA6#..G,GT,L,S,SX

LH

 1
85196-14040

GA61,MA61,RA63,TA6#..G,GT,L,S,SX

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-14360

GA61,MA6#,RA63,SA60,TA6#

LH

 1
85220-14310

GA61,MA6#,RA63,SA60,TA6#

RH

 1
85220-24040

AA63,GA61,MA6#,RA63,SA60,TA6#

WINTER BLADE(COLD SPEC)

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-14360

GA61,MA6#,RA63,SA60,TA6#

LH

 1
85220-14310

GA61,MA6#,RA63,SA60,TA6#

RH

 1
85220-24040

AA63,GA61,MA6#,RA63,SA60,TA6#

WINTER BLADE(COLD SPEC)

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-14360

GA61,MA6#,RA63,SA60,TA6#

LH

 1
85220-14310

GA61,MA6#,RA63,SA60,TA6#

RH

 1
85220-24040

AA63,GA61,MA6#,RA63,SA60,TA6#

WINTER BLADE(COLD SPEC)

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30080

GA61,MA6#,RA63,SA60,TA6#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30080

GA61,MA6#,RA63,SA60,TA6#

 2
Common parts
90099-00913
90109-06004
90109-06063
90119-06151
