RA63-BCMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )

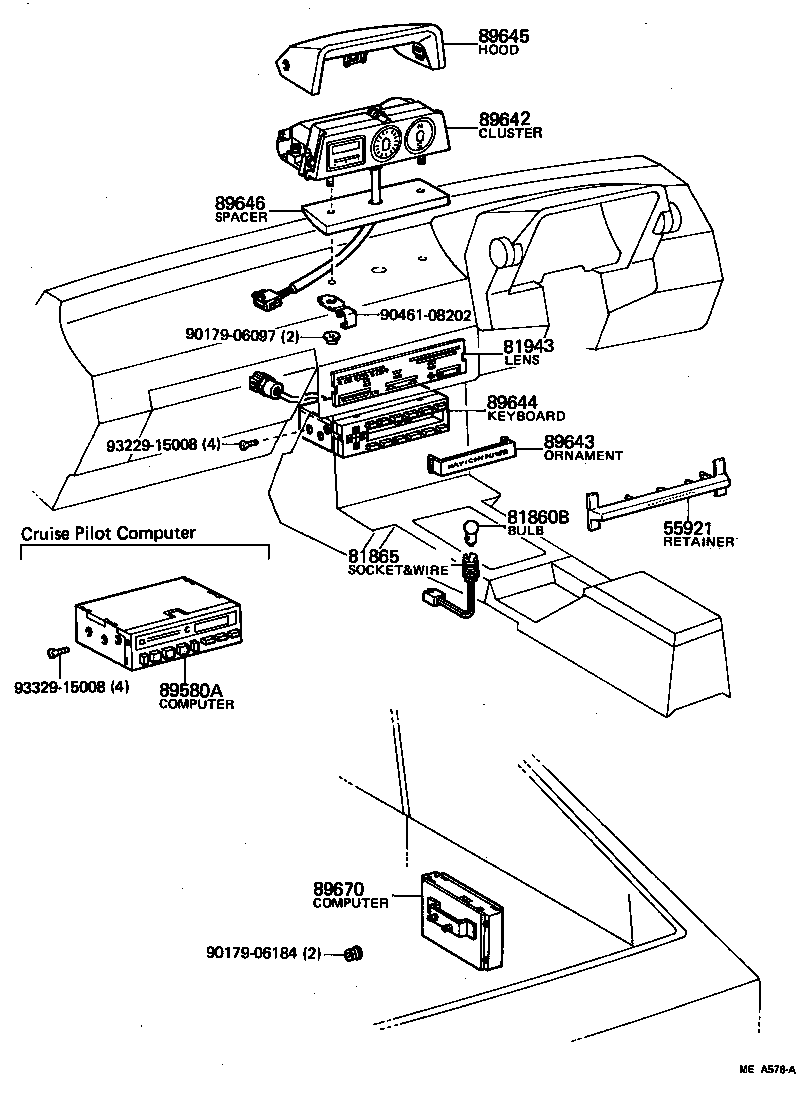

Click highlighted areas on diagram

diagram 55921 81860B 81865 81943 89580A 89642 89643 89644 89645 89646 89670 9017906097 9017906184 9046108202 9322915008 9332915008
Part # Description Qty Price
55921 - RETAINER, HEATER CONTROL
55921-14130

AA63,GA61,MA6#,RA63,SA60,TA6#

AUTOMATIC AIR CONDITIONER

 1
55921-14120

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
81943 - LENS, HEATER CONTROL INDICATOR
81943-14280

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
81943-14290

AA63,GA61,MA6#,RA63,SA60,TA6#

AUTOMATIC AIR CONDITIONER

 1
89580A - COMPUTER ASSY, CRUISE PILOT
89580-14030

RA63

 1
Common parts
90179-06097
90179-06184
90461-08202
93229-15008
93329-15008
