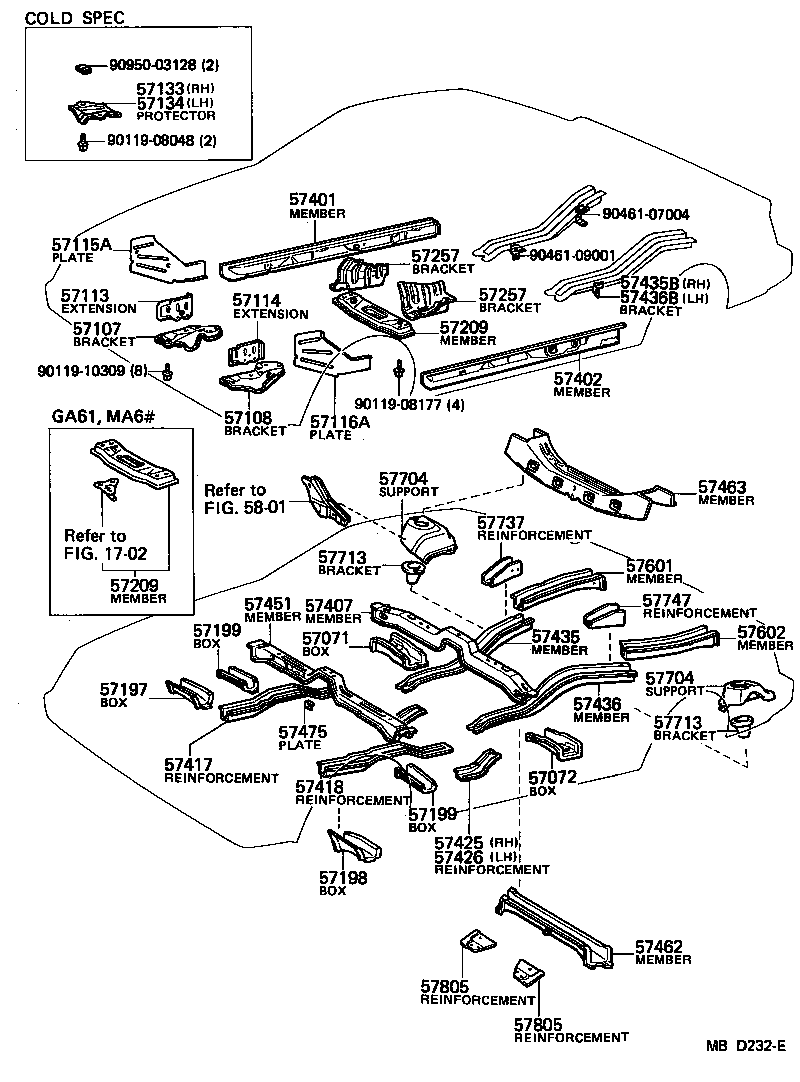

RA63-BCMQF (1981)
Toyota Celica
(8107- )AA63,GA61,MA6#,RA63,TA61,63
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57071 - BOX SUB-ASSY, TORQUE, REAR RH | ||||
| 57071-14030 |
AA63,GA61,MA6#,RA63,TA61,63 |
1 | ||
| 57072 - BOX SUB-ASSY, TORQUE, REAR LH | ||||
| 57072-14030 |
AA63,GA61,MA6#,RA63,TA61,63 |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-14080 |
AA63,RA63,SA60,TA6# |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-14080 |
AA63,RA63,SA60,TA6# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-14090 |
AA63,RA63,SA60,TA6# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-14050 |
AA63,RA63,SA60,TA6# |
1 | ||
| 57133 - PROTECTOR, STRUT BAR BRACKET, RH | ||||
| 57133-14030 |
AA63,RA63,SA60,TA6# COLD SPEC |
1 | ||
| 57134 - PROTECTOR, STRUT BAR BRACKET, LH | ||||
| 57134-14020 |
AA63,RA63,SA60,TA6# COLD SPEC |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-14010 |
AA63,RA63,SA60,TA6# PLANT.A41,A42 |
1 | ||
| 57197-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# PLANT.A51-A54 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# PLANT.A51-A54 |
1 | ||
| 57198-14010 |
AA63,RA63,SA60,TA6# PLANT.A41,A42 |
1 | ||
| 57199 - BOX, TORQUE, FRONT, NO.2 | ||||
| 58173-14010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
2 | ||
| 57199 - BOX, TORQUE, FRONT, NO.2 | ||||
| 58173-14010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
2 | ||
| 57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 57209-14170 |
TA61,63..5F..(GT,GTR,ST,SX) |
1 | ||
| 57209-14190 |
RA63,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 57209-14170 |
TA61,63..5F..(GT,GTR,ST,SX) |
1 | ||
| 57209-14190 |
RA63,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 57257 - BRACKET, ENGINE REAR SUPPORT MEMBER | ||||
| 57258-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# LH |
1 | ||
| 57257-14050 |
AA63,RA63,SA60,TA6#..GT,GTR,GTS,ST,SV,SX RH |
1 | ||
| 57257 - BRACKET, ENGINE REAR SUPPORT MEMBER | ||||
| 57258-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# LH |
1 | ||
| 57257-14050 |
AA63,RA63,SA60,TA6#..GT,GTR,GTS,ST,SV,SX RH |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-14190 |
AA63,GA61,MA6#,RA63,TA61,63 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-14190 |
AA63,GA61,MA6#,RA63,TA61,63 |
1 | ||
| 57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1 | ||||
| 57407-14010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 57435 - MEMBER, CENTER FLOOR SIDE, RH | ||||
| 57435-24010 |
AA63,GA61,MA6#,RA63,TA61,63 |
1 | ||
| 57435B - BRACKET, FLOOR BRAKE HOSE, REAR RH | ||||
| 58289-14020 |
AA63,GA61,MA6#,RA63,TA61,63 |
1 | ||
| 57436 - MEMBER, CENTER FLOOR SIDE, LH | ||||
| 57436-14020 |
AA63,GA61,MA6#,RA63,TA61,63 |
1 | ||
| 57436B - BRACKET, FLOOR BRAKE HOSE, REAR, LH | ||||
| 58299-14010 |
AA63,GA61,MA6#,RA63,TA61,63 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 57462 - MEMBER, CENTER FLOOR CROSS, NO.2 | ||||
| 57405-14100 |
AA63,GA61,MA6#,RA63,TA61,63 |
1 | ||
| 57463 - MEMBER, CENTER FLOOR CROSS, NO.3 | ||||
| 57463-14030 |
AA63,GA61,MA6#,RA63,TA61,63 |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
4 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-14130 |
AA63,RA63,TA61,63..CP |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-14120 |
AA63,RA63,TA61,63..CP |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57723-14030 |
AA63,GA61,MA6#,RA63,TA61,63 RH |
1 | ||
| 57724-14020 |
AA63,GA61,MA6#,RA63,TA61,63 LH |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57723-14030 |
AA63,GA61,MA6#,RA63,TA61,63 RH |
1 | ||
| 57724-14020 |
AA63,GA61,MA6#,RA63,TA61,63 LH |
1 | ||
| 57713 - BRACKET, REAR SPRING BUMPER SUPPORT | ||||
| 57713-14020 |
AA63,GA61,MA6#,RA63,TA61,63 RH |
1 | ||
| 57714-14010 |
AA63,GA61,MA6#,RA63,TA61,63 LH |
1 | ||
| 57713 - BRACKET, REAR SPRING BUMPER SUPPORT | ||||
| 57713-14020 |
AA63,GA61,MA6#,RA63,TA61,63 RH |
1 | ||
| 57714-14010 |
AA63,GA61,MA6#,RA63,TA61,63 LH |
1 | ||
| 57737 - REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, RH | ||||
| 57737-24010 |
AA63,GA61,MA6#,RA63,TA61,63 |
1 | ||
| 57747 - REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, LH | ||||
| 57747-24010 |
AA63,GA61,MA6#,RA63,TA61,63 |
1 | ||
| 57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR | ||||
| 57806-14020 |
AA63,GA61,MA6#,RA63,TA61,63 LH |
1 | ||
| 57805-14020 |
AA63,GA61,MA6#,RA63,TA61,63 RH |
1 | ||
| 57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR | ||||
| 57806-14020 |
AA63,GA61,MA6#,RA63,TA61,63 LH |
1 | ||
| 57805-14020 |
AA63,GA61,MA6#,RA63,TA61,63 RH |
1 | ||
| Common parts | ||||
| 90119-08048 | ||||
| 90119-08177 | ||||
| 90119-10309 | ||||
| 90461-07004 | ||||
| 90461-09001 | ||||
| 90950-03128 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 5801 | ||||
