RA63-BCMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8202-8208)RA63

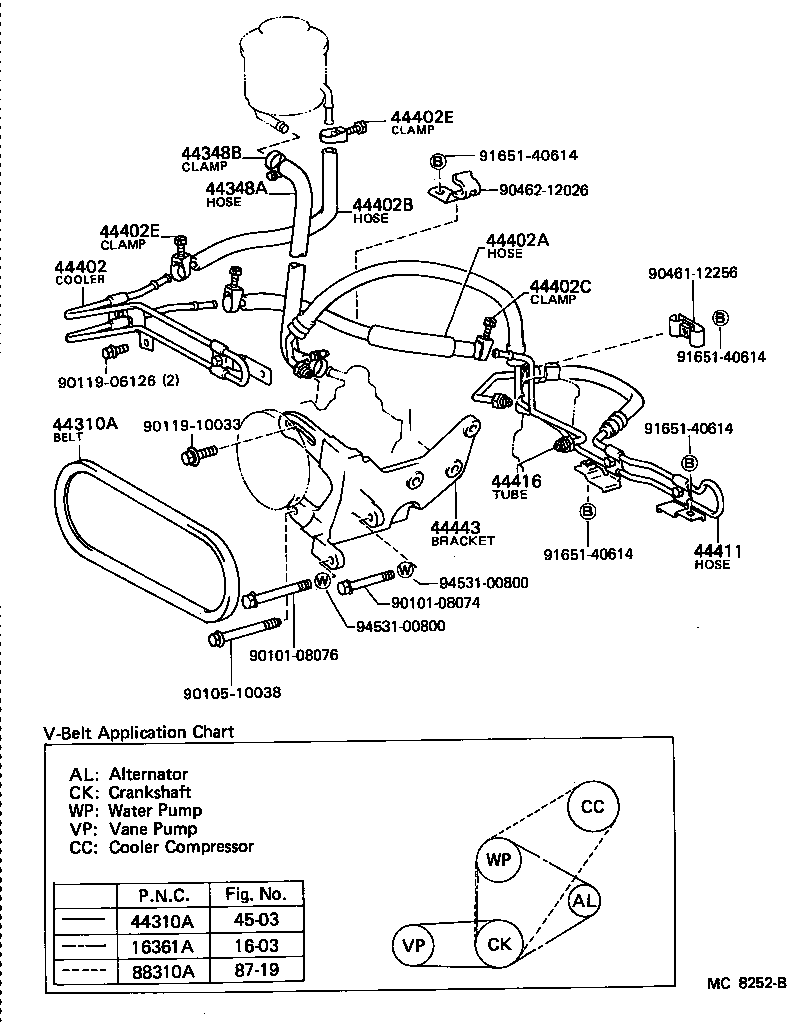

Click highlighted areas on diagram

diagram 1603 16361A 44310A 44310A 44348A 44348B 44402 44402A 44402B 44402C 44402E 44402E 44411 44416 44443 4503 8719 88310A 9010108074 9010108076 9010510038 9011906126 9011910033 9046112256 9046212026 9165140614 9165140614 9165140614 9165140614 9453100800 9453100800
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00850

18RGEU..RA63

 1
44310A - BELT, V(FOR VANE PUMP)
99332-00875

RA63

長さ=875

 1
44310A - BELT, V(FOR VANE PUMP)
99332-00875

RA63

長さ=875

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20040

RA63

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
44412-20040

RA63

 1
44411 - HOSE, PRESSURE FEED
44410-20050

RA63

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20030

RA63

 1
44443 - BRACKET, PUMP
44443-20040

RA63

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-51230

RA63

 1
99322-50950

TA61,63..GT,GTR,ST,SX

 1
Common parts
90101-08074
90101-08076
90105-10038
90119-06126
90119-10033
90461-12256
90462-12026
91651-40614
94531-00800
Linked diagrams
1603
4503
8719
