RA63-BCMQF (1981)
Toyota Celica
Production
Jul 1981
-
Aug 1982
Engine
18RGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8107- )G,S ; (8107- )MA61

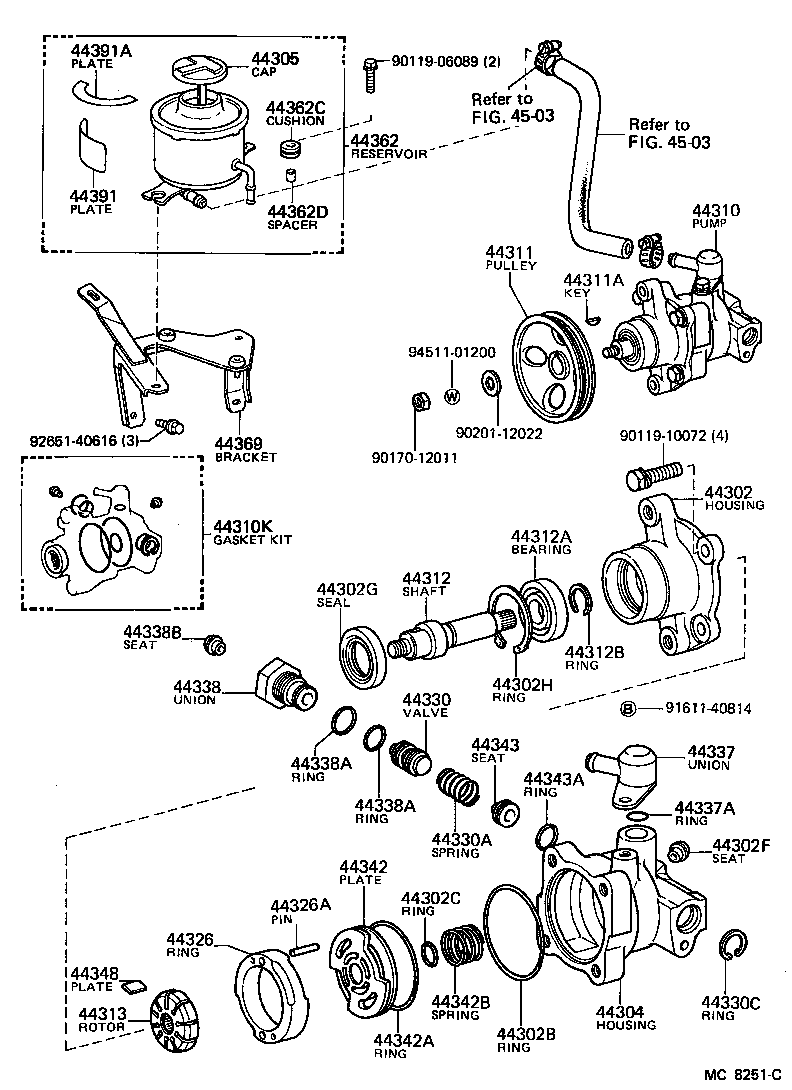

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-20020 |
RA63 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-35090 |
RA63,SA60..GT,ST ﾏｰｸ C |
1 | ||
| 44330-35070 |
RA63,SA60..GT,ST ﾏｰｸ A |
1 | ||
| 44330-35080 |
RA63,SA60..GT,ST ﾏｰｸ B |
1 | ||
| 44330-35110 |
RA63,SA60..GT,ST ﾏｰｸ E |
1 | ||
| 44330-35100 |
RA63,SA60..GT,ST ﾏｰｸ D |
1 | ||
| 44330-35120 |
RA63,SA60..GT,ST ﾏｰｸ F |
1 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44360-20040 |
RA63 |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90170-12011 | ||||
| 90201-12022 | ||||
| 91611-40814 | ||||
| 94511-01200 | ||||
(8202-8208)RA63
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-20020 |
RA63 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-35090 |
RA63,SA60..GT,ST ﾏｰｸ C |
1 | ||
| 44330-35070 |
RA63,SA60..GT,ST ﾏｰｸ A |
1 | ||
| 44330-35080 |
RA63,SA60..GT,ST ﾏｰｸ B |
1 | ||
| 44330-35110 |
RA63,SA60..GT,ST ﾏｰｸ E |
1 | ||
| 44330-35100 |
RA63,SA60..GT,ST ﾏｰｸ D |
1 | ||
| 44330-35120 |
RA63,SA60..GT,ST ﾏｰｸ F |
1 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44360-20040 |
RA63 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-20020 |
RA63 |
1 | ||
| Common parts | ||||
| 90119-06089 | ||||
| 90119-10072 | ||||
| 90170-12011 | ||||
| 90201-12022 | ||||
| 91611-40814 | ||||
| 92651-40616 | ||||
| 94511-01200 | ||||
| Linked diagrams | ||||
| 4503 | ||||
