RA63-BCMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)RA63,TA63,64..5F

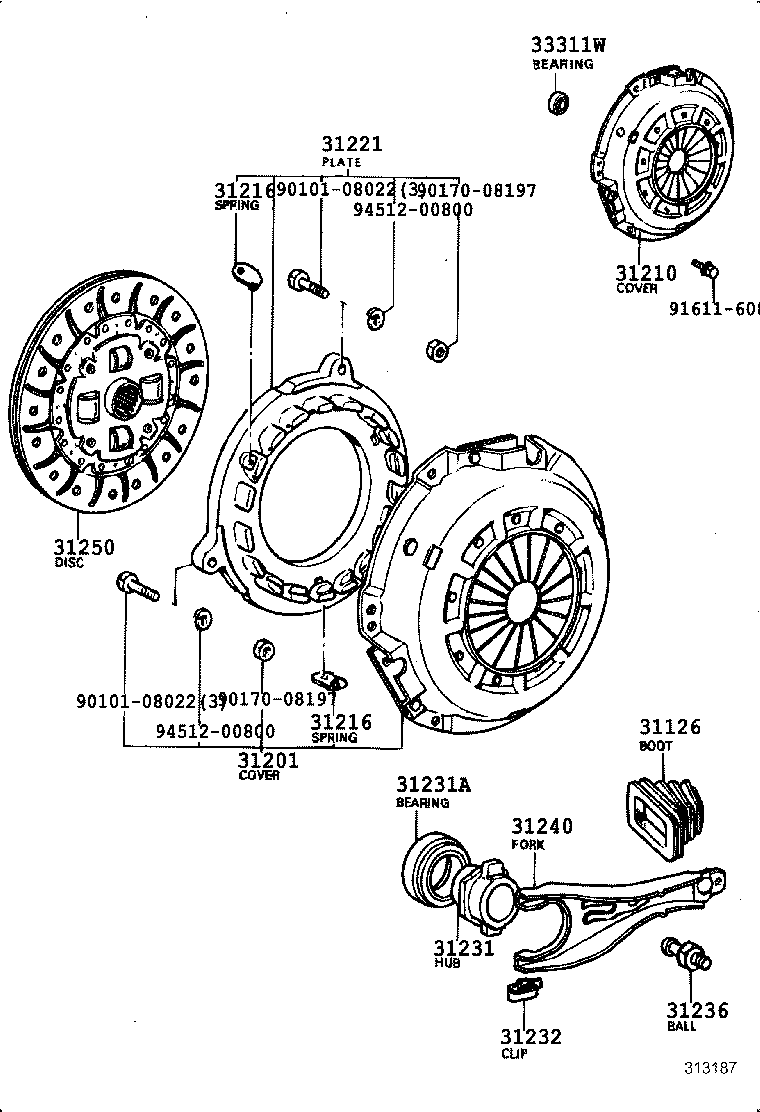

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31236 31240 31250 33311W 9010108022 9010108022 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060

RA63

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29085

RA63;GA61..5F..(G,L,S)

 1
31210 - COVER ASSY, CLUTCH
31210-20170

RA63

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

GA61,RA63,SA60,TA63,64..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

GA61,RA63,SA60,TA63,64..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-29025

RA63

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-20090

RA63,TA63,64..5F..(GT,GTS,GTT)

 1
31231-20081

SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

AA63,GA61,MA61,RA63,SA60,TA6#..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

AA63,GA61,MA61,RA63,SA60,TA6#..MTM

 2
31236 - BALL, RELEASE FORK
31236-30060

AA63,GA61,MA61,RA63,SA60,TA6#..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20070

RA63

 1
31250 - DISC ASSY, CLUTCH
31250-22053

RA63

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

MA61,RA63..5F

 1
Common parts
90101-08022
90170-08197
91611-60816
94512-00800
