RA63-BCMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

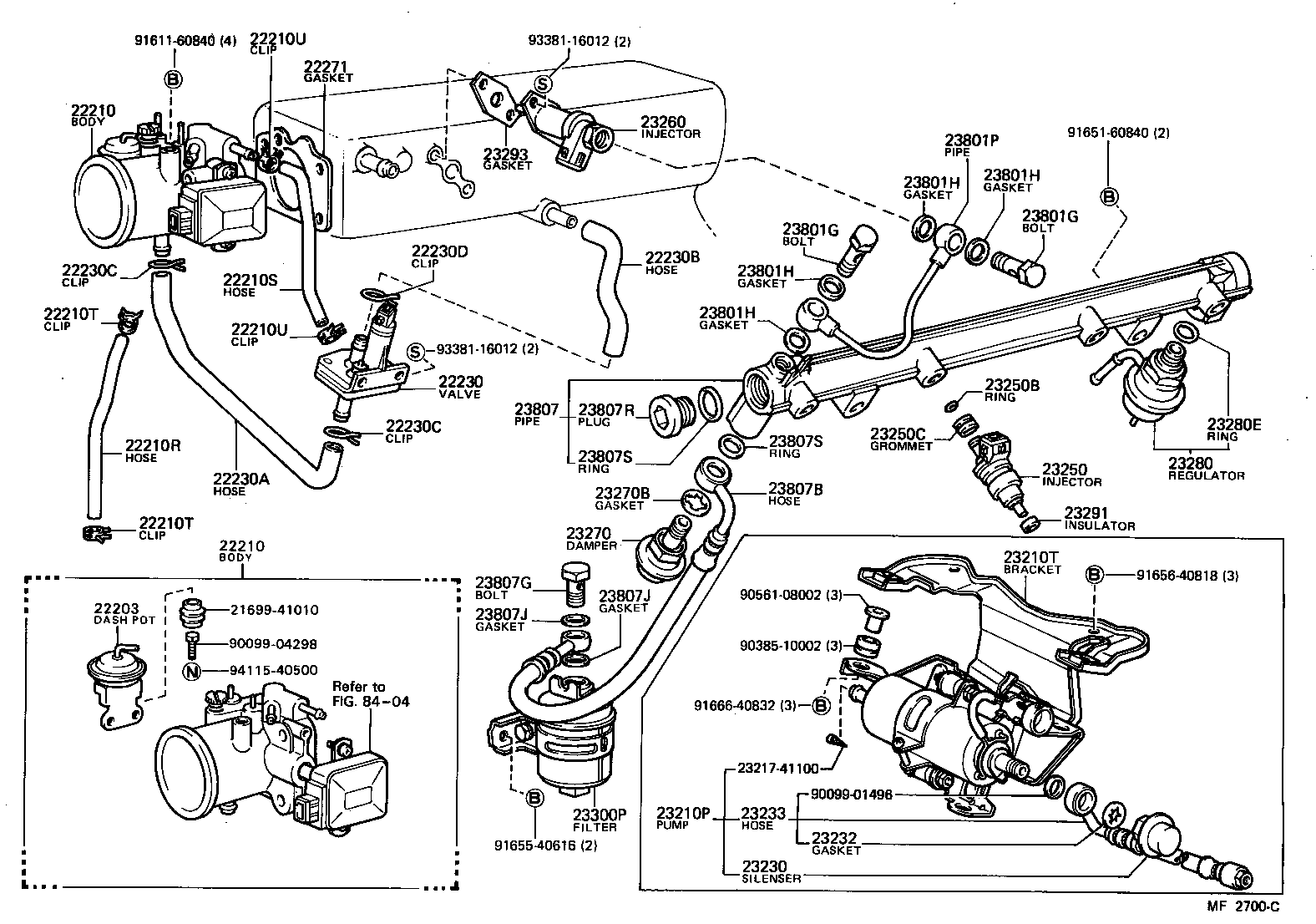

(8107-8208)18RGEU

Click highlighted areas on diagram

diagram 2169941010 22203 22210 22210 22210R 22210S 22210T 22210T 22210U 22210U 22230 22230A 22230B 22230C 22230C 22230D 22271 23210P 23210T 2321741100 23230 23232 23233 23250 23250B 23250C 23260 23270 23270B 23280 23280E 23291 23293 23300P 23801G 23801G 23801H 23801H 23801H 23801H 23801P 23807 23807B 23807G 23807J 23807J 23807R 23807S 23807S 8404 9009901496 9009904298 9038510002 9056108002 9161160840 9165160840 9165540616 9165640818 9166640832 9338116012 9338116012 9411540500
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-34010

18RGEU..RA63

 1
22210 - BODY ASSY, THROTTLE
22210-34070

18RGEU..RA63

 1
22210 - BODY ASSY, THROTTLE
22210-34070

18RGEU..RA63

 1
22210R - HOSE, THROTTLE BODY, NO.1
22232-88271

18RGEU..RA63

 1
22210S - HOSE, THROTTLE BODY, NO.2
22231-88270

18RGEU..RA63

 1
22210T - CLIP(FOR THROTTLE BODY, NO.1)
90467-13001

18RGEU..RA63

 2
22210T - CLIP(FOR THROTTLE BODY, NO.1)
90467-13001

18RGEU..RA63

 2
22210U - CLIP(FOR THROTTLE BODY, NO.2)
90467-13001

18RGEU..RA63

 2
22210U - CLIP(FOR THROTTLE BODY, NO.2)
90467-13001

18RGEU..RA63

 2
22230 - VALVE ASSY, AUXILIARY AIR
22230-34031

18RGEU..RA63

 1
22230A - HOSE, AUXILIARY AIR VALVE, NO.1
22233-88270

18RGEU..RA63

 1
22233-88271

18RGEU..RA63

W/PS

 1
22230B - HOSE, AUXILIARY AIR VALVE, NO.2
22234-88270

18RGEU..RA63

 1
22234-88271

18RGEU..RA63

W/PS

 1
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-20020

18RGEU..RA63

 2
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-20020

18RGEU..RA63

 2
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-20020

18RGEU..RA63

W/PS

 2
90467-21152

18RGEU..RA63

 2
22271 - GASKET, THROTTLE BODY
22271-88270

18RGEU..RA63

 1
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-70020

18RGEU..RA63

 1
23210-70021

18RGEU..RA63

 1
23210T - BRACKET, FUEL PUMP
23265-70010

18RGEU..RA63

 1
23230 - SILENCER ASSY
23230-26080

18RGEU..RA63

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-26080

18RGEU..RA63

 1
23233 - HOSE, FUEL PUMP
90999-99094

18RGEU..RA63

 1
90999-99090

18RGEU..RA63

 1
23250 - INJECTOR ASSY, FUEL
23250-34030

18RGEU..RA63

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

18RGEU..RA63

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

18RGEU..RA63

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-34040

18RGEU..RA63

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-52011

18RGEU..RA63

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-28010

18RGEU..RA63

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-26020

18RGEU..RA63

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-15001

18RGEU..RA63

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

18RGEU..RA63

 6
23293 - GASKET, COLD START INJECTOR
23293-34020

18RGEU..RA63

 1
23300P - FILTER, FUEL(FOR EFI)
23300-34110

18RGEU..RA63

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-10008

18RGEU..RA63

 2
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-10008

18RGEU..RA63

 2
23801H - GASKET(FOR FUEL PIPE)
90099-01459

18RGEU..RA63

 4
23801H - GASKET(FOR FUEL PIPE)
90099-01459

18RGEU..RA63

 4
23801H - GASKET(FOR FUEL PIPE)
90099-01459

18RGEU..RA63

 4
23801H - GASKET(FOR FUEL PIPE)
90099-01459

18RGEU..RA63

 4
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-88270

18RGEU..RA63

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-88272

18RGEU..RA63

 1
23807B - HOSE, FUEL DELIVERY PIPE
90923-01254

18RGEU..RA63

 1
23807G - BOLT, UNION PIPE FUEL DELIVARY INLET
90401-12097

18RGEU..RA63

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12005

18RGEU..RA63

 2
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12005

18RGEU..RA63

 2
23807R - PLUG, FUEL DELIVARY PIPE
90072-34110

18RGEU..RA63

 2
23807S - RING, O(FOR FUEL DELIVARY PIPE)
90430-12005

18RGEU..RA63

MAIN HOSE

 1
90072-30117

18RGEU..RA63

DELIVERY PIPE

 2
23807S - RING, O(FOR FUEL DELIVARY PIPE)
90430-12005

18RGEU..RA63

MAIN HOSE

 1
90072-30117

18RGEU..RA63

DELIVERY PIPE

 2
Common parts
21699-41010
23217-41100
90099-01496
90099-04298
90385-10002
90561-08002
91611-60840
91651-60840
91655-40616
91656-40818
91666-40832
93381-16012
94115-40500
Linked diagrams
8404

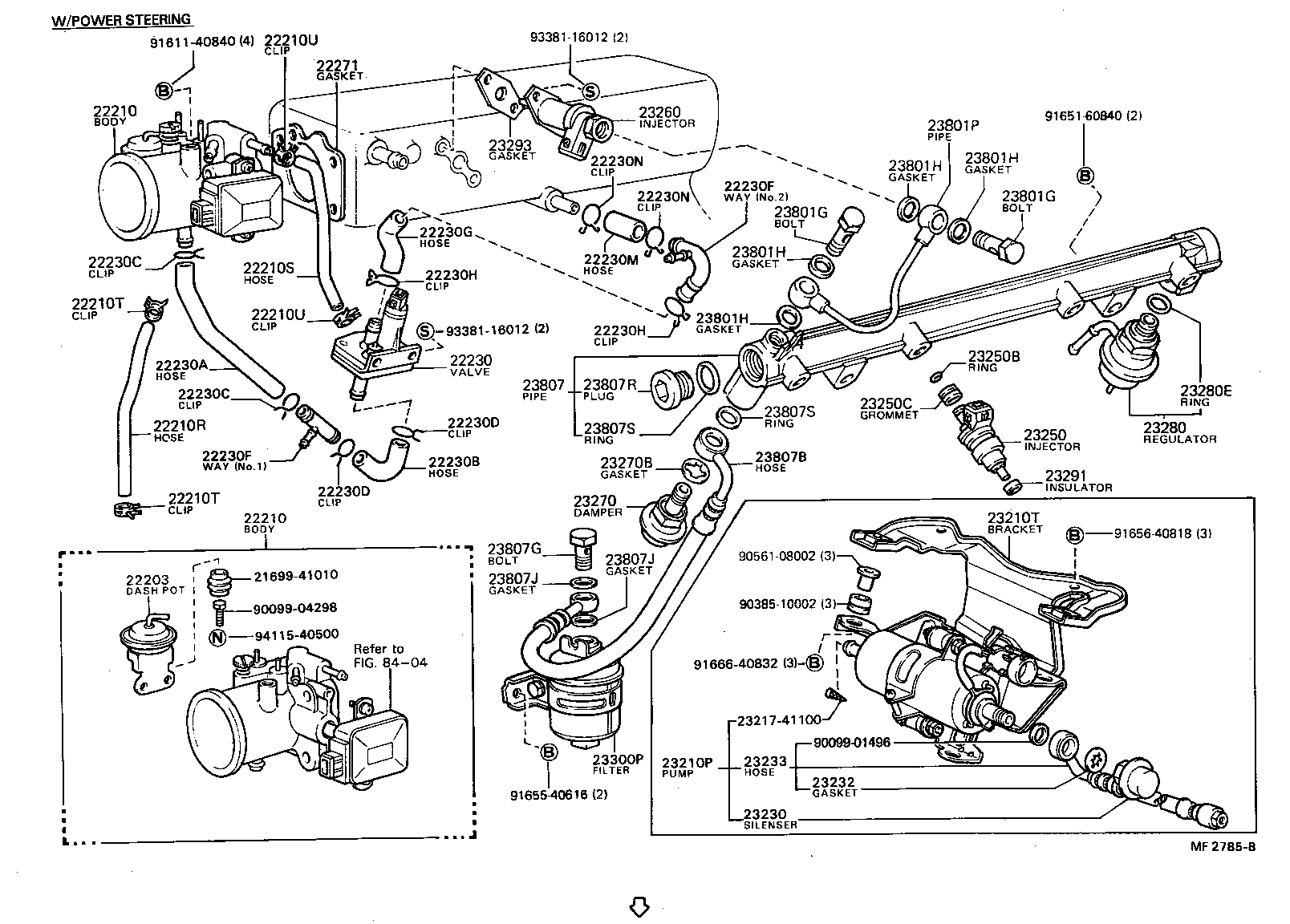

(8202-8208)18RGEU

Click highlighted areas on diagram

diagram 2169941010 22203 22210 22210 22210R 22210S 22210T 22210T 22210U 22210U 22230 22230A 22230B 22230C 22230C 22230D 22230D 22230F 22230F 22230G 22230H 22230H 22230M 22230N 22230N 22271 23210P 23210T 2321741100 23230 23232 23233 23250 23250B 23250C 23260 23270 23270B 23280 23280E 23291 23293 23300P 23801G 23801G 23801H 23801H 23801H 23801H 23801P 23807 23807B 23807G 23807J 23807J 23807R 23807S 23807S 8404 9009901496 9009904298 9038510002 9056108002 9161140840 9165160840 9165540616 9165640818 9166640832 9338116012 9338116012 9411540500
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-34010

18RGEU..RA63

 1
22210 - BODY ASSY, THROTTLE
22210-34070

18RGEU..RA63

 1
22210 - BODY ASSY, THROTTLE
22210-34070

18RGEU..RA63

 1
22210R - HOSE, THROTTLE BODY, NO.1
22232-88271

18RGEU..RA63

 1
22210S - HOSE, THROTTLE BODY, NO.2
22231-88270

18RGEU..RA63

 1
22210T - CLIP(FOR THROTTLE BODY, NO.1)
90467-13001

18RGEU..RA63

 2
22210T - CLIP(FOR THROTTLE BODY, NO.1)
90467-13001

18RGEU..RA63

 2
22210U - CLIP(FOR THROTTLE BODY, NO.2)
90467-13001

18RGEU..RA63

 2
22210U - CLIP(FOR THROTTLE BODY, NO.2)
90467-13001

18RGEU..RA63

 2
22230 - VALVE ASSY, AUXILIARY AIR
22230-34031

18RGEU..RA63

 1
22230A - HOSE, AUXILIARY AIR VALVE, NO.1
22233-88270

18RGEU..RA63

 1
22233-88271

18RGEU..RA63

W/PS

 1
22230B - HOSE, AUXILIARY AIR VALVE, NO.2
22234-88270

18RGEU..RA63

 1
22234-88271

18RGEU..RA63

W/PS

 1
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-20020

18RGEU..RA63

 2
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-20020

18RGEU..RA63

 2
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-20020

18RGEU..RA63

W/PS

 2
90467-21152

18RGEU..RA63

 2
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-20020

18RGEU..RA63

W/PS

 2
90467-21152

18RGEU..RA63

 2
22230F - WAY, 3, AUXILIARY AIR VALVE HOSE
90413-14010

18RGEU..RA63

NO.1,W/PS

 1
90413-14011

18RGEU..RA63

NO.2,W/PS

 1
22230F - WAY, 3, AUXILIARY AIR VALVE HOSE
90413-14010

18RGEU..RA63

NO.1,W/PS

 1
90413-14011

18RGEU..RA63

NO.2,W/PS

 1
22230G - HOSE, AUXILIARY AIR VALVE, NO.3
22236-88270

18RGEU..RA63

W/PS

 1
22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3
90467-21152

18RGEU..RA63

W/PS

 2
22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3
90467-21152

18RGEU..RA63

W/PS

 2
22230M - HOSE, AUXILIARY AIR VALVE, NO.4
22237-88270

18RGEU..RA63

W/PS

 1
22230N - CLIP, AUXILIARY AIR VALVE, NO.4
90467-21152

18RGEU..RA63

W/PS

 2
22230N - CLIP, AUXILIARY AIR VALVE, NO.4
90467-21152

18RGEU..RA63

W/PS

 2
22271 - GASKET, THROTTLE BODY
22271-88270

18RGEU..RA63

 1
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-70020

18RGEU..RA63

 1
23210-70021

18RGEU..RA63

 1
23210T - BRACKET, FUEL PUMP
23265-70010

18RGEU..RA63

 1
23230 - SILENCER ASSY
23230-26080

18RGEU..RA63

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-26080

18RGEU..RA63

 1
23233 - HOSE, FUEL PUMP
90999-99094

18RGEU..RA63

 1
90999-99090

18RGEU..RA63

 1
23250 - INJECTOR ASSY, FUEL
23250-34030

18RGEU..RA63

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

18RGEU..RA63

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

18RGEU..RA63

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-34040

18RGEU..RA63

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-52011

18RGEU..RA63

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-28010

18RGEU..RA63

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-26020

18RGEU..RA63

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-15001

18RGEU..RA63

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

18RGEU..RA63

 6
23293 - GASKET, COLD START INJECTOR
23293-34020

18RGEU..RA63

 1
23300P - FILTER, FUEL(FOR EFI)
23300-34110

18RGEU..RA63

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-10008

18RGEU..RA63

 2
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-10008

18RGEU..RA63

 2
23801H - GASKET(FOR FUEL PIPE)
90099-01459

18RGEU..RA63

 4
23801H - GASKET(FOR FUEL PIPE)
90099-01459

18RGEU..RA63

 4
23801H - GASKET(FOR FUEL PIPE)
90099-01459

18RGEU..RA63

 4
23801H - GASKET(FOR FUEL PIPE)
90099-01459

18RGEU..RA63

 4
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-88270

18RGEU..RA63

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-88272

18RGEU..RA63

 1
23807B - HOSE, FUEL DELIVERY PIPE
90923-01254

18RGEU..RA63

 1
23807G - BOLT, UNION PIPE FUEL DELIVARY INLET
90401-12097

18RGEU..RA63

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12005

18RGEU..RA63

 2
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12005

18RGEU..RA63

 2
23807R - PLUG, FUEL DELIVARY PIPE
90072-34110

18RGEU..RA63

 2
23807S - RING, O(FOR FUEL DELIVARY PIPE)
90430-12005

18RGEU..RA63

MAIN HOSE

 1
90072-30117

18RGEU..RA63

DELIVERY PIPE

 2
23807S - RING, O(FOR FUEL DELIVARY PIPE)
90430-12005

18RGEU..RA63

MAIN HOSE

 1
90072-30117

18RGEU..RA63

DELIVERY PIPE

 2
Common parts
21699-41010
23217-41100
90099-01496
90099-04298
90385-10002
90561-08002
91611-40840
91651-60840
91655-40616
91656-40818
91666-40832
93381-16012
94115-40500
Linked diagrams
8404
