RA63-BCMQF (1981)
Toyota Celica
Production
Jul 1981
-
Aug 1982
Engine
18RGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8107-8208)18RGEU

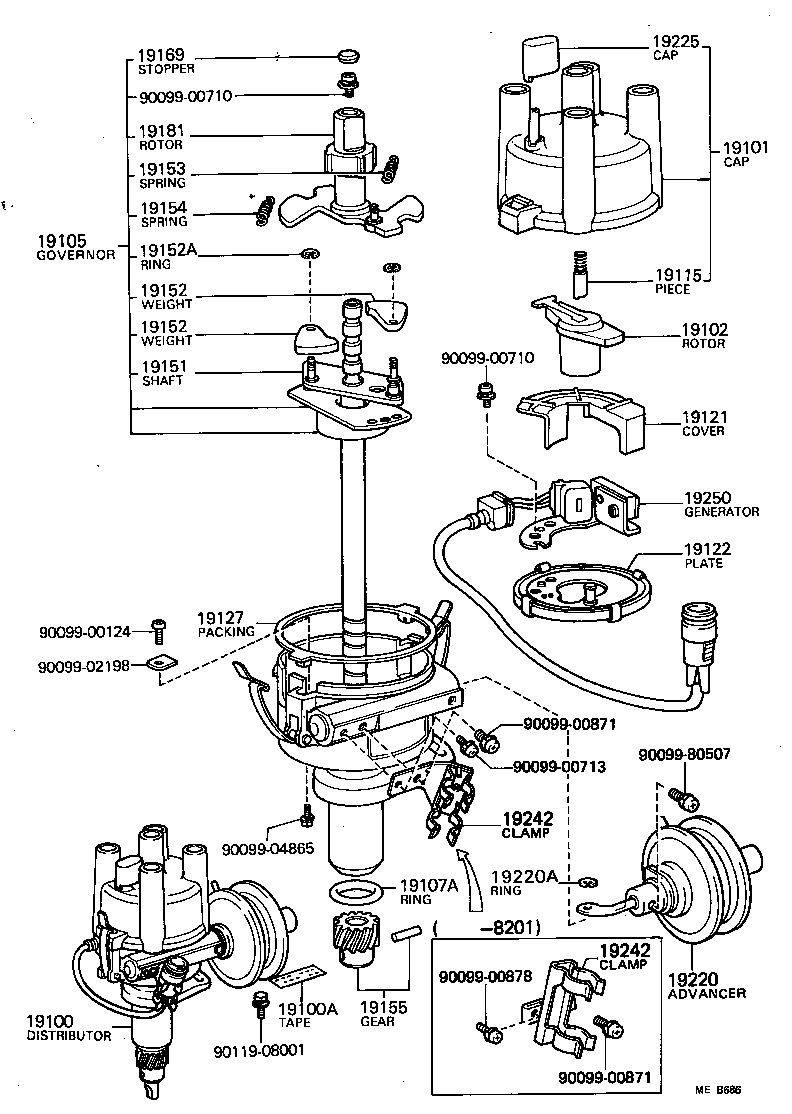

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-88273 |
18RGEU..RA63 |
1 | ||
| 19100-88272 |
18RGEU..RA63 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
18RGEU..RA63 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-25070 |
18RGEU..RA63 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-26150 |
18RGEU..RA63 |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-88270 |
18RGEU..RA63 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
18RGEU..RA63 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
18RGEU..RA63 |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-27020 |
18RGEU..RA63 |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-88262 |
18RGEU..RA63 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-88251 |
18RGEU..RA63 |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-88251 |
18RGEU..RA63 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
18RGEU..RA63 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
18RGEU..RA63 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
18RGEU..RA63 |
4 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-88270 |
18RGEU..RA63 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19153-88270 |
18RGEU..RA63 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-33011 |
18RGEU..RA63 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
18RGEU..RA63 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-26260 |
18RGEU..RA63 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-88273 |
18RGEU..RA63 |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
18RGEU..RA63 |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-25070 |
18RGEU..RA63 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-88272 |
18RGEU..RA63 |
1 | ||
| 19242-88273 |
18RGEU..RA63 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-88272 |
18RGEU..RA63 |
1 | ||
| 19242-88273 |
18RGEU..RA63 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-88272 |
18RGEU..RA63 |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00713 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-02198 | ||||
| 90099-04865 | ||||
| 90099-80507 | ||||
| 90119-08001 | ||||
