RA63-BCMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8208)18RGEU

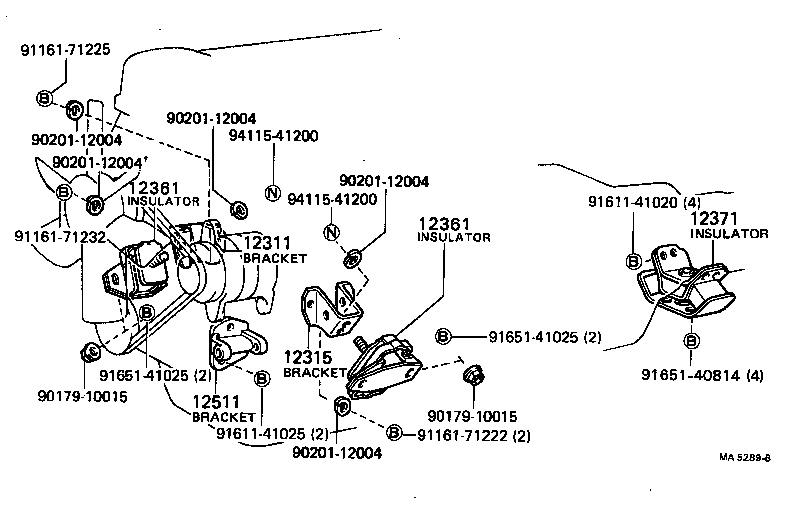

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 9017910015 9017910015 9020112004 9020112004 9020112004 9020112004 9020112004 9116171222 9116171225 9116171232 9161141020 9161141025 9165140814 9165141025 9165141025 9411541200 9411541200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-34020

18RGEU..RA63

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-34040

18RGEU..RA63

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-36012

18RGEU..RA63

RH

 1
12362-36012

18RGEU..RA63

LH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-36012

18RGEU..RA63

RH

 1
12362-36012

18RGEU..RA63

LH

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

18RGEU..RA63

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-33011

18RGEU..RA63

 1
Common parts
90179-10015
90201-12004
91161-71222
91161-71225
91161-71232
91611-41020
91611-41025
91651-40814
91651-41025
94115-41200
