MA63-BLPST (1982)
Toyota Celica
Production
Feb 1982
-
Dec 1985
Engine
MTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

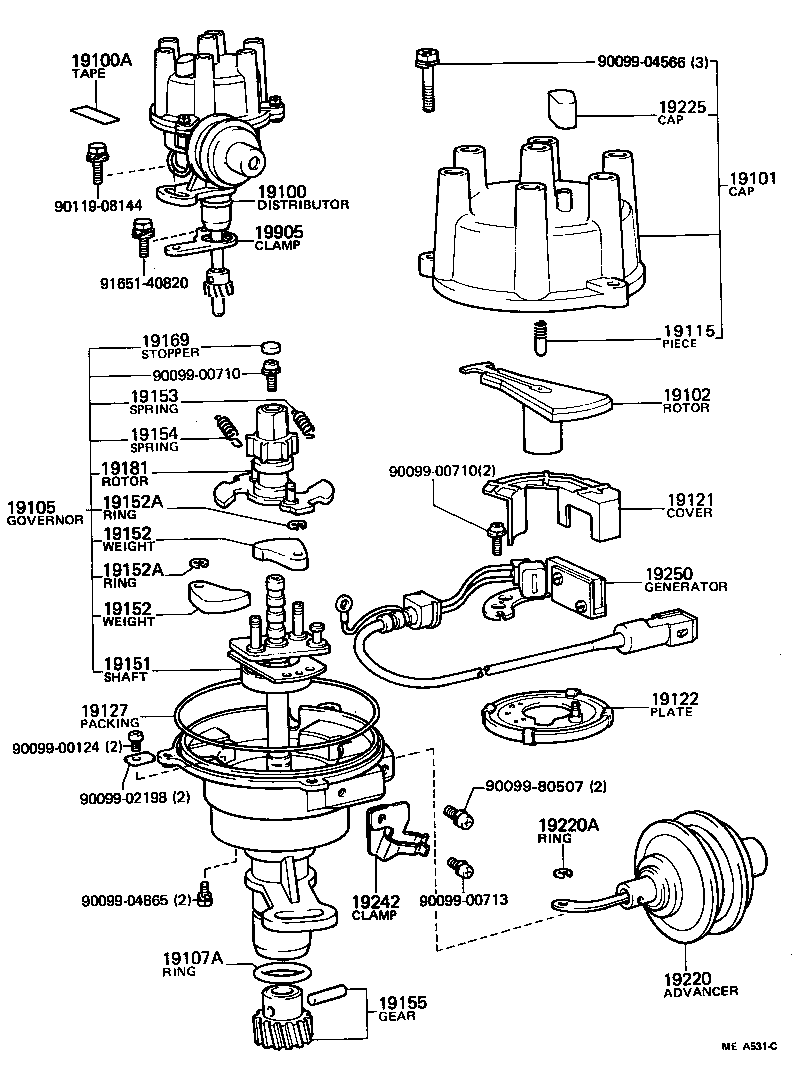

(8202-8308)MTEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-41240 |
MTEU..MA63 |
1 | ||
| 19100-41250 |
MTEU..MA63 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
5MGEU,MTEU..MA6# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-41250 |
MTEU..MA63 |
1 | ||
| 19101-41240 |
MTEU..MA63 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-41250 |
MTEU..MA63 |
1 | ||
| 19102-41240 |
MTEU..MA63 |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-41250 |
MTEU..MA63 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14018 |
5MGEU,MTEU..MA6# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
5MGEU,MTEU..MA6# |
2 | ||
| 19115-88280 |
MTEU..MA63 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-27020 |
5MGEU,MTEU..MA6# |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-88262 |
5MGEU,MTEU..MA6# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-52050 |
MTEU..MA63 |
1 | ||
| 19127-45190 |
MTEU..MA63 |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-41250 |
MTEU..MA63 |
1 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-41250 |
MTEU..MA63 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-41250 |
MTEU..MA63 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-45190 |
MTEU..MA63 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
5MGEU,MTEU..MA6# |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-41250 |
MTEU..MA63 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-41250 |
MTEU..MA63 |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
5MGEU,MTEU..MA6# |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-41140 |
5MGEU,MTEU..MA6# |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-61102 |
MTEU..MA63 |
1 | ||
| 19242-43050 |
MTEU..MA63 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-41250 |
MTEU..MA63 |
1 | ||
| 19905 - CLAMP SUB-ASSY, DISTRIBUTOR | ||||
| 19955-45020 |
MTEU..MA63 |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00713 | ||||
| 90099-02198 | ||||
| 90099-04566 | ||||
| 90099-04865 | ||||
| 90099-80507 | ||||
| 90119-08144 | ||||
| 91651-40820 | ||||

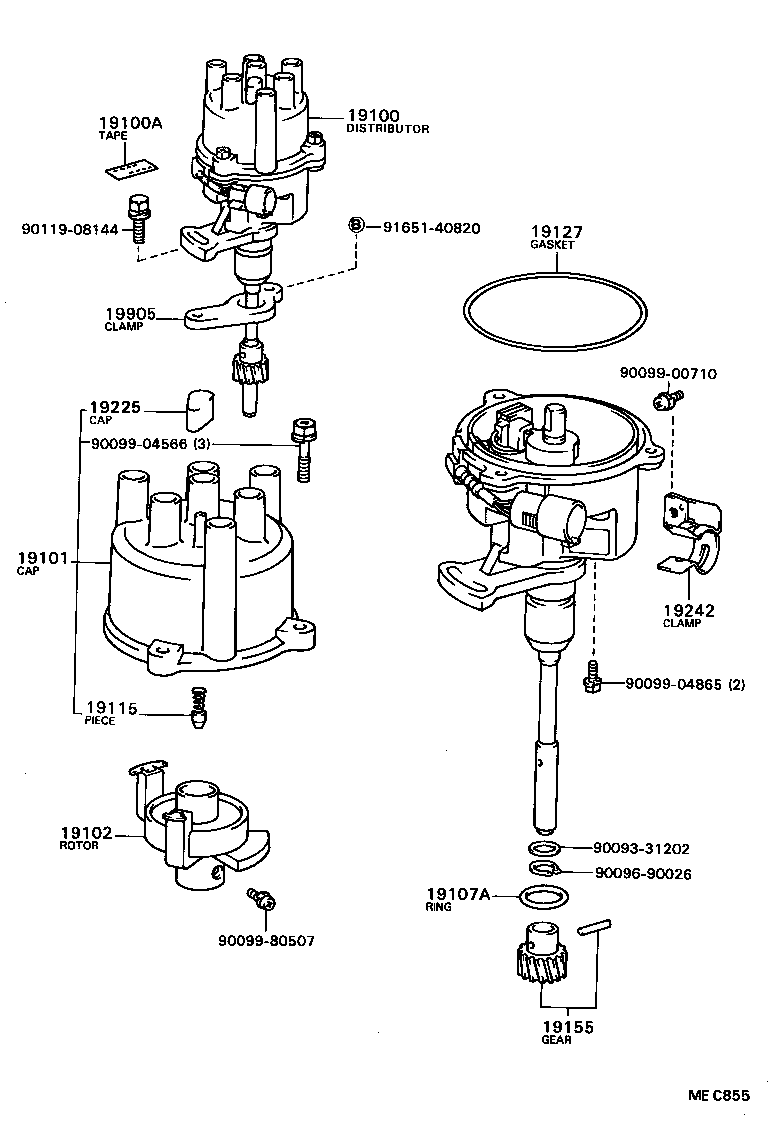

(8308- )MTEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-41240 |
MTEU..MA63 |
1 | ||
| 19100-41250 |
MTEU..MA63 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
5MGEU,MTEU..MA6# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-41250 |
MTEU..MA63 |
1 | ||
| 19101-41240 |
MTEU..MA63 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-41250 |
MTEU..MA63 |
1 | ||
| 19102-41240 |
MTEU..MA63 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14018 |
5MGEU,MTEU..MA6# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
5MGEU,MTEU..MA6# |
2 | ||
| 19115-88280 |
MTEU..MA63 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-52050 |
MTEU..MA63 |
1 | ||
| 19127-45190 |
MTEU..MA63 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-45190 |
MTEU..MA63 |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-41140 |
5MGEU,MTEU..MA6# |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-61102 |
MTEU..MA63 |
1 | ||
| 19242-43050 |
MTEU..MA63 |
1 | ||
| 19905 - CLAMP SUB-ASSY, DISTRIBUTOR | ||||
| 19955-45020 |
MTEU..MA63 |
1 | ||
| Common parts | ||||
| 90093-31202 | ||||
| 90096-90026 | ||||
| 90099-00710 | ||||
| 90099-04566 | ||||
| 90099-04865 | ||||
| 90099-80507 | ||||
| 90119-08144 | ||||
| 91651-40820 | ||||
