MA61-BLMQF (1981)

Toyota Celica

Production Jul 1981 - Dec 1985
Engine 5MGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8308)

Click highlighted areas on diagram

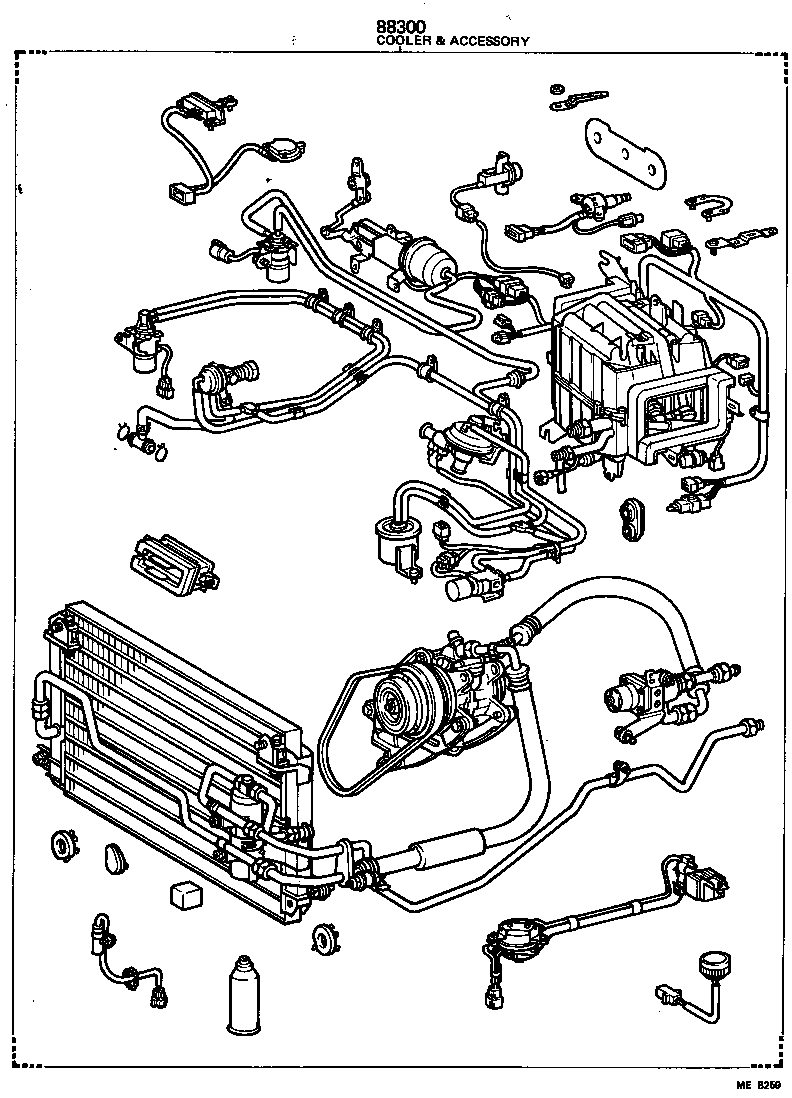

diagram 88300
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-1B830

MA61

 1
88300-1D070

MA61

*AAC

 1
88300-1D071

MA61

*AAC

 1
88300-1B831

MA61

 1

(8308- )

Click highlighted areas on diagram

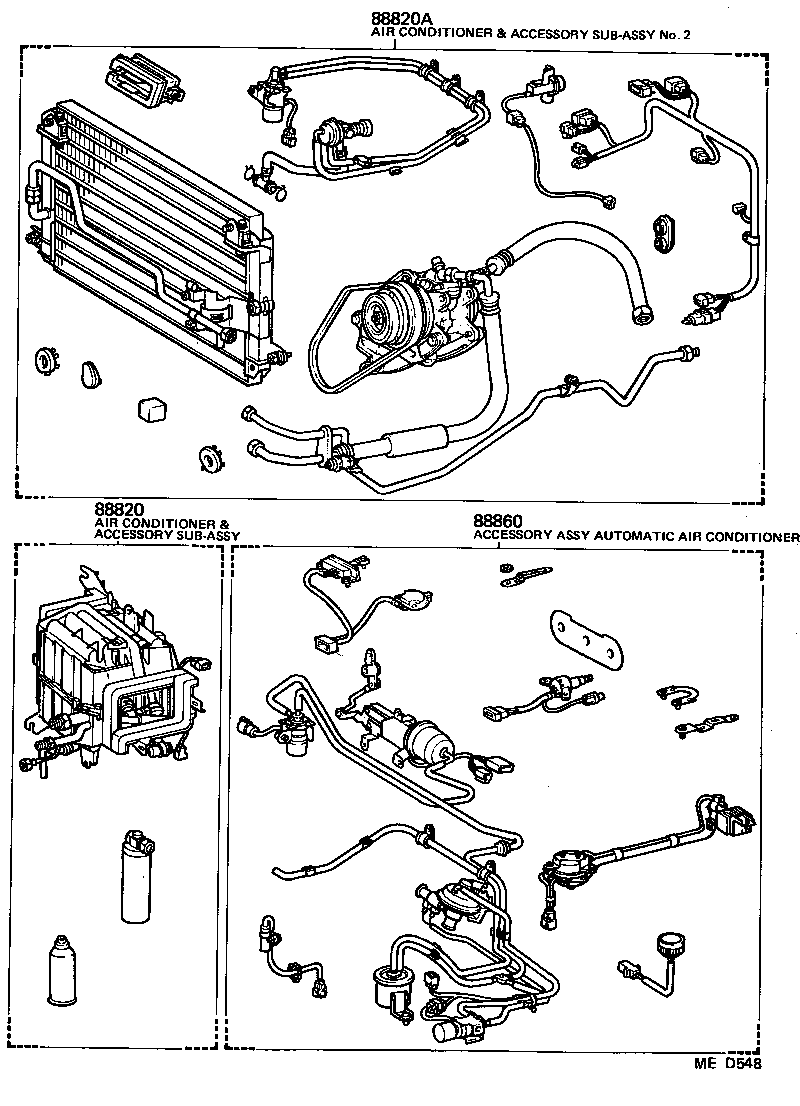

diagram 88820 88820A 88860
Part # Description Qty Price
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-14030

GA61,MA61

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-14140

MA61

 1
88860 - ACCESSORY ASSY, AUTOMATIC AIR CONDITIONER
88860-14120

MA61

 1
