MA61-BLMQF (1981)

Toyota Celica

Production Jul 1981 - Dec 1985
Engine 5MGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )

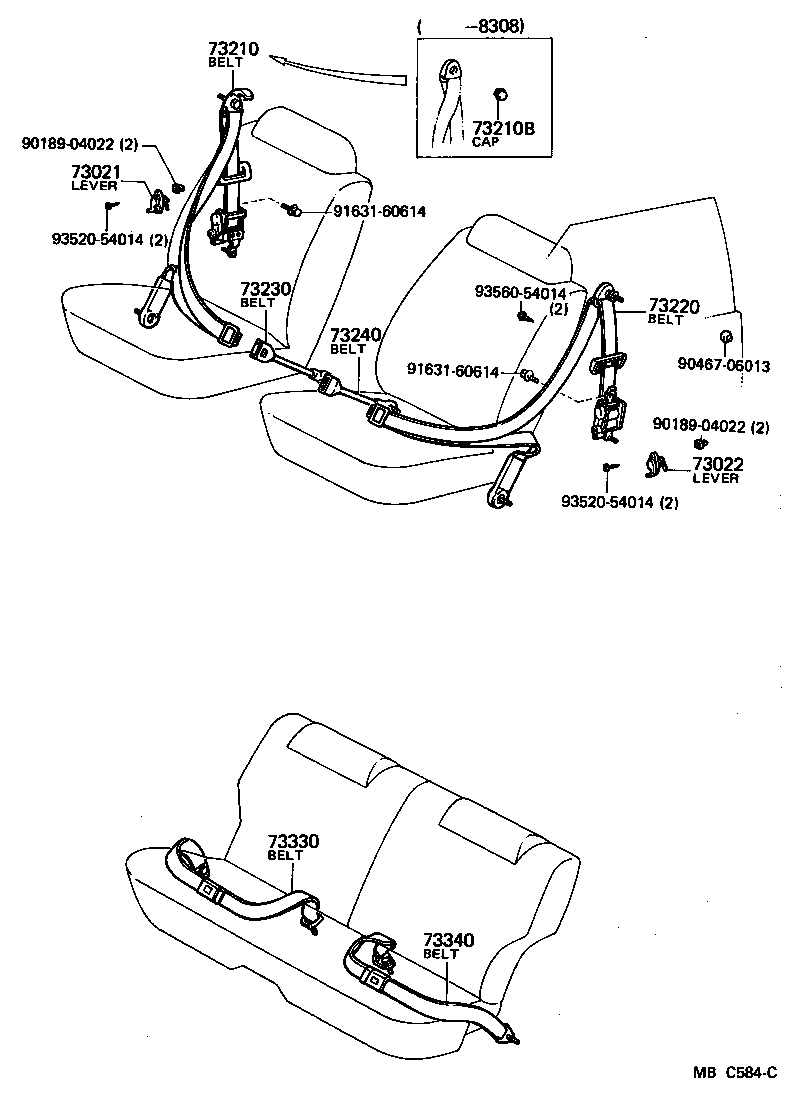

Click highlighted areas on diagram

diagram 73021 73022 73210 73210B 73220 73230 73240 73330 73340 9018904022 9018904022 9046706013 9163160614 9163160614 9352054014 9352054014 9356054014
Part # Description Qty Price
73021 - LEVER SUB-ASSY, SEAT BELT COMFORT, RH
73021-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
73022 - LEVER SUB-ASSY, SEAT BELT COMFORT, LH
73022-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1423004

GA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)

BLUE,BLUE,TRIM8#

 1
73210-1423104

GA61,MA6#,SA60,TA61..LB..(G,GT,L,S,ST)

BLUE,BLUE,TRIM8#

 1
73210-1423002

GA61,MA6#

TERRA COTTA,RED/MAROON,TRIM3#

 1
73210-1423202

GA61,MA6#

TERRA COTTA,RED/MAROON,TRIM3#

 1
73210-1423102

GA61,MA6#

TERRA COTTA,RED/MAROON,TRIM3#

 1
73210-1423101

GA61,MA6#,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73210-1423201

GA61,MA6#,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73210-1423204

GA61,MA6#,SA60,TA61..LB..(G,GT,L,S,ST)

BLUE,BLUE,TRIM8#

 1
73210-1423001

GA61,MA6#,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73210-1434104

AA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX

BLUE,BLUE,TRIM8#

 1
73210-1434101

AA63,GA61,MA6#,SA60,TA63

BLACK,BLACK,TRIM2#

 1
73210-1434102

GA61,MA6#

DEEP MAROON,DEEP MAROON,TRIM3#

 1
73210-1434002

GA61,MA6#

DEEP MAROON,RED/MAROON,TRIM3#

 1
73210-1434004

AA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX

BLUE,BLUE,TRIM8#

 1
73210-1434001

AA63,GA61,MA6#,SA60,TA63

BLACK,BLACK,TRIM2#

 1
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201014

GA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)

BLUE,BLUE,TRIM8#

 2
73178-1201012

GA61,MA6#

TERRA COTTA,RED/MAROON,TRIM3#

 2
73178-1201011

GA61,MA6#,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 2
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1417001

GA61,MA6#,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73220-1417002

GA61,MA6#

TERRA COTTA,RED/MAROON,TRIM3#

 1
73220-1417102

GA61,MA6#

TERRA COTTA,RED/MAROON,TRIM3#

 1
73220-1417202

GA61,MA6#

TERRA COTTA,RED/MAROON,TRIM3#

 1
73220-1417101

GA61,MA6#,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73220-1417104

GA61,MA6#,SA60,TA61..LB..(G,GT,L,S,ST)

BLUE,BLUE,TRIM8#

 1
73220-1428001

AA63,GA61,MA6#,SA60,TA63

BLACK,BLACK,TRIM2#

 1
73220-1417204

GA61,MA6#,SA60,TA61..LB..(G,GT,L,S,ST)

BLUE,BLUE,TRIM8#

 1
73220-1417201

GA61,MA6#,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73220-1417004

GA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)

BLUE,BLUE,TRIM8#

 1
73220-1428004

AA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX

BLUE,BLUE,TRIM8#

 1
73220-1428101

AA63,GA61,MA6#,SA60,TA63

BLACK,BLACK,TRIM2#

 1
73220-1428002

GA61,MA6#

DEEP MAROON,RED/MAROON,TRIM3#

 1
73220-1428102

GA61,MA6#

DEEP MAROON,DEEP MAROON,TRIM3#

 1
73220-1428104

AA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX

BLUE,BLUE,TRIM8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1422002

GA61,MA6#

TERRA COTTA,RED/MAROON,TRIM3#

 1
73230-1431002

GA61,MA6#

DEEP MAROON,RED/MAROON,TRIM3#

 1
73230-1431004

AA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX

BLUE,BLUE,TRIM8#

 1
73230-1422004

GA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)

BLUE,BLUE,TRIM8#

 1
73230-1422001

GA61,MA6#,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73230-1431001

AA63,GA61,MA6#,SA60,TA63

BLACK,BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-1422002

GA61,MA6#

TERRA COTTA,RED/MAROON,TRIM3#

 1
73230-1431004

AA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX

BLUE,BLUE,TRIM8#

 1
73230-1431001

AA63,GA61,MA6#,SA60,TA63

BLACK,BLACK,TRIM2#

 1
73230-1422001

GA61,MA6#,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73230-1431002

GA61,MA6#

DEEP MAROON,RED/MAROON,TRIM3#

 1
73230-1422004

GA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)

BLUE,BLUE,TRIM8#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-1413002

GA61,MA6#

TERRA COTTA,RED/MAROON,TRIM3#

 1
73330-1413004

GA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)

BLUE,BLUE,TRIM8#

 1
73330-1416004

AA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX

BLUE,BLUE,TRIM8#

 1
73330-1416001

AA63,GA61,MA6#,SA60,TA63

BLACK,BLACK,TRIM2#

 1
73330-1416002

GA61,MA6#

DEEP MAROON,RED/MAROON,TRIM3#

 1
73330-1413001

GA61,MA6#,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-1413002

GA61,MA6#

TERRA COTTA,RED/MAROON,TRIM3#

 1
73330-1413004

GA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)

BLUE,BLUE,TRIM8#

 1
73330-1413001

GA61,MA6#,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73330-1416001

AA63,GA61,MA6#,SA60,TA63

BLACK,BLACK,TRIM2#

 1
73330-1416004

AA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX

BLUE,BLUE,TRIM8#

 1
73330-1416002

GA61,MA6#

DEEP MAROON,RED/MAROON,TRIM3#

 1
Common parts
90189-04022
90467-06013
91631-60614
93520-54014
93560-54014
