MA61-BLMQF (1981)
Toyota Celica

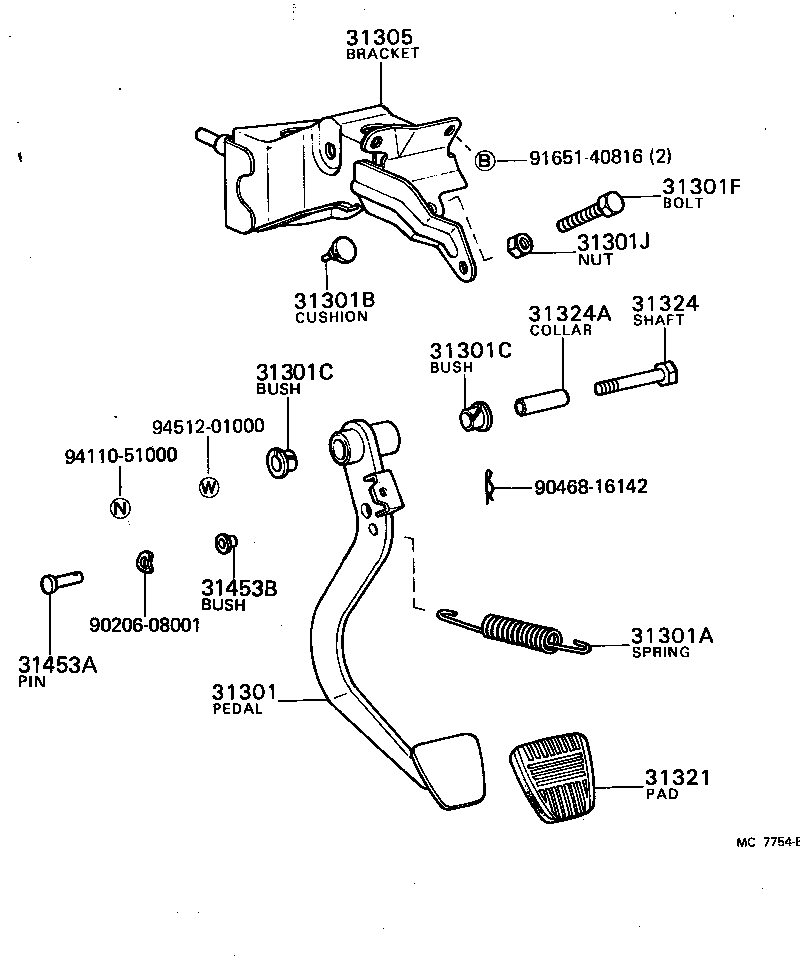

ILLUST NO. 1 OF 2(8107- )5F..G,L,S ; (8107- )RA63,SA60,TA61,63..MTM..GT,GTR,ST,SV,SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-24010 |
GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31301-24030 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-20005 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-07010 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM |
2 | ||
| 90386-13015 |
GA61,MA61..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM |
2 | ||
| 90386-13015 |
GA61,MA61..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10109 |
GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 90101-10105 |
AA63,GA61,MA61,TA63..5F..(GT,GTT) |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-10114 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31305 - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-24020 |
GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 55107-14100 |
AA63,GA61,MA61,TA63..5F..(GT,GTT) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10021 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91651-40816 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||

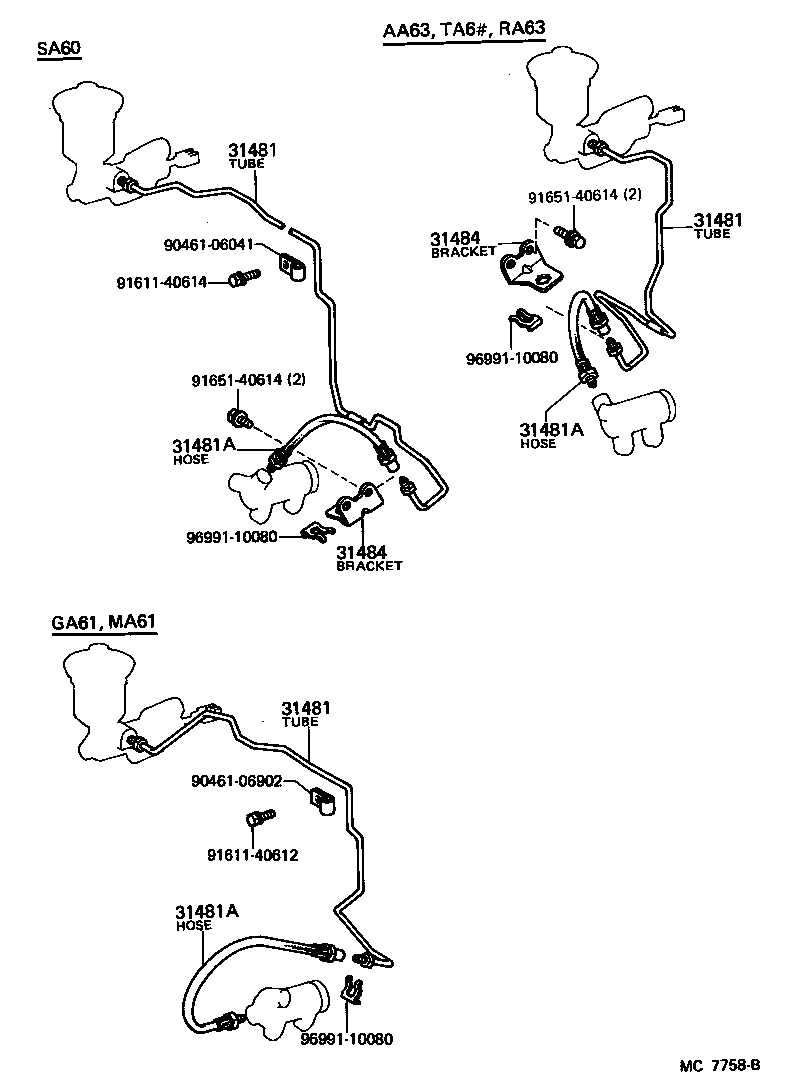

ILLUST NO. 2 OF 2(8107- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-24010 |
MA61..5F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-24010 |
MA61..5F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-24010 |
MA61..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96940-33505 |
MA61..5F |
1 | ||
| 96812-50340 |
GA61,MA61..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96940-33505 |
MA61..5F |
1 | ||
| 96812-50340 |
GA61,MA61..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96940-33505 |
MA61..5F |
1 | ||
| 96812-50340 |
GA61,MA61..5F |
1 | ||
| Common parts | ||||
| 90461-06041 | ||||
| 90461-06902 | ||||
| 91611-40612 | ||||
| 91611-40614 | ||||
| 91651-40614 | ||||
| 96991-10080 | ||||

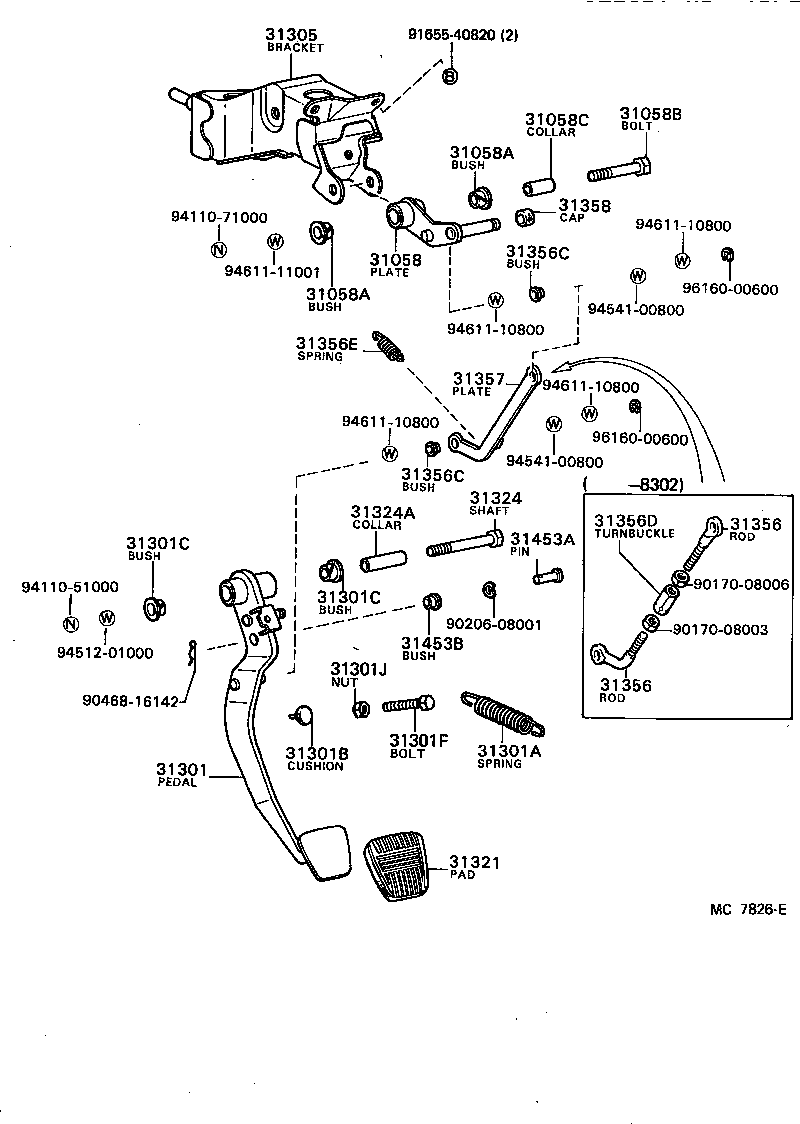

ILLUST NO. 1 OF 2(8107- )AA63,GA61,MA61,TA63,64..5F..GT,GTS,GTT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31058 - PLATE SUB-ASSY, OVER CENTER | ||||
| 31058-24010 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31058A - BUSH(FOR OVER CENTER PLATE) | ||||
| 90386-13192 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
2 | ||
| 31058A - BUSH(FOR OVER CENTER PLATE) | ||||
| 90386-13192 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
2 | ||
| 31058B - BOLT(FOR OVER CENTER PLATE) | ||||
| 90101-10072 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31058C - COLLAR(FOR OVER CENTER PLATE) | ||||
| 90387-10038 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-24010 |
GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31301-24030 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-20005 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-07010 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM |
2 | ||
| 90386-13015 |
GA61,MA61..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM |
2 | ||
| 90386-13015 |
GA61,MA61..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10109 |
GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 90101-10105 |
AA63,GA61,MA61,TA63..5F..(GT,GTT) |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-10114 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31305 - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-24020 |
GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 55107-14100 |
AA63,GA61,MA61,TA63..5F..(GT,GTT) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10021 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM |
1 | ||
| 31356 - ROD, OVER CENTER ADJUSTING | ||||
| 31357-24010 |
GA61,MA61,TA63,64..5F..(GT,GTS,GTT) LWR |
1 | ||
| 31357-24020 |
GA61,MA61,TA63,64..5F..(GT,GTS,GTT) UPR |
1 | ||
| 31356 - ROD, OVER CENTER ADJUSTING | ||||
| 31357-24010 |
GA61,MA61,TA63,64..5F..(GT,GTS,GTT) LWR |
1 | ||
| 31357-24020 |
GA61,MA61,TA63,64..5F..(GT,GTS,GTT) UPR |
1 | ||
| 31356C - BUSH(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90386-08014 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
2 | ||
| 31356C - BUSH(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90386-08014 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
2 | ||
| 31356D - TURNBUCKLE(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90587-08001 |
GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31356E - SPRING(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90506-09024 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2 | ||||
| 31357-24030 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) LWR |
1 | ||
| 31358 - CAP, OVER CENTER SPRING | ||||
| 31358-14010 |
AA63,GA61,MA61,TA63,64..5F..(GT,GTS,GTT) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AA63,GA61,MA61,RA63,SA60,TA6#..MTM |
1 | ||
| Common parts | ||||
| 90170-08003 | ||||
| 90170-08006 | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91655-40820 | ||||
| 94110-51000 | ||||
| 94110-71000 | ||||
| 94512-01000 | ||||
| 94541-00800 | ||||
| 94611-10800 | ||||
| 94611-11001 | ||||
| 96160-00600 | ||||
