MA61-BLMQF (1981)
Toyota Celica
(8107- )5MGEU

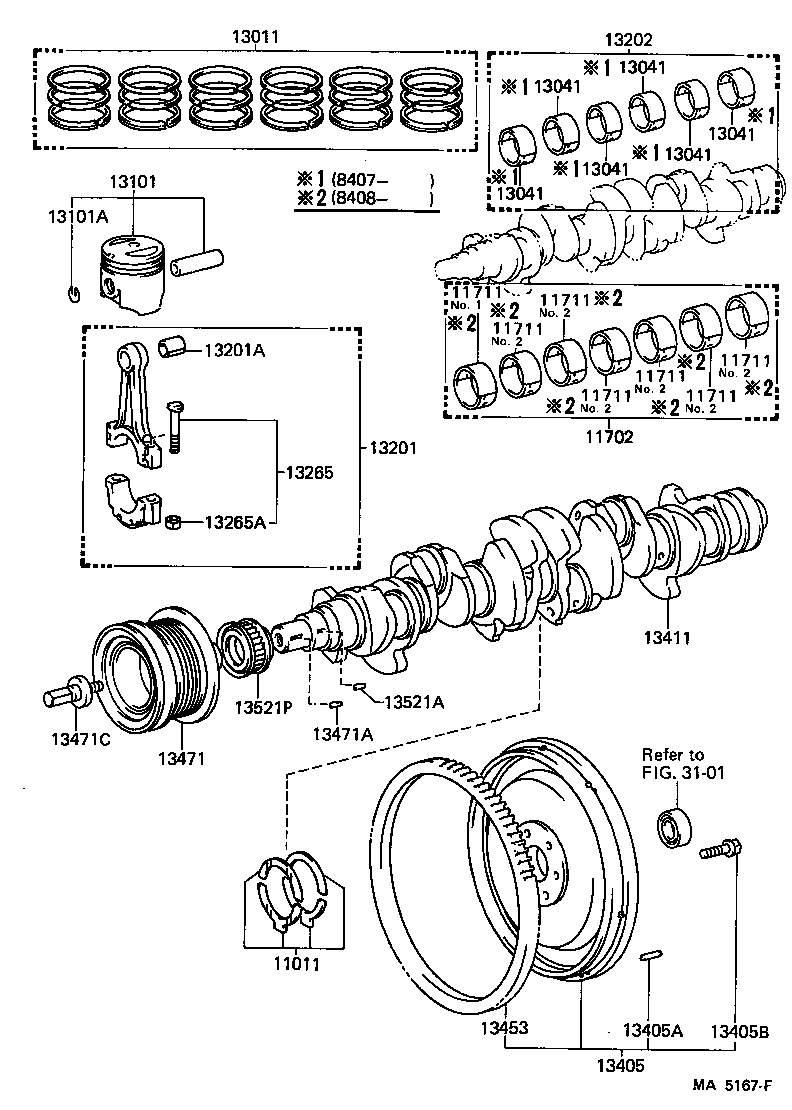

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-43010 |
5MGEU,MTEU..MA6# STD,STD |
1 | ||
| 11012-43010 |
5MGEU,MTEU..MA6# O/S 0.125,O/S 0.125 |
1 | ||
| 11013-43010 |
5MGEU,MTEU..MA6# O/S 0.250,O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-45011 |
5MGEU,MTEU..MA6# U/S 0.25,U/S 0.25 |
1 | ||
| 11702-45011 |
5MGEU,MTEU..MA6# STD,STD |
1 | ||
| 11705-43010 |
5MGEU,MTEU..MA6# U/S 0.50,U/S 0.50 |
1 | ||
| 11704-43010 |
5MGEU,MTEU..MA6# U/S 0.25,U/S 0.25 |
1 | ||
| 11703-45011 |
5MGEU,MTEU..MA6# U/S 0.05,U/S 0.05 |
1 | ||
| 11705-45011 |
5MGEU,MTEU..MA6# U/S 0.50,U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301001 |
5MGEU,MTEU..MA6# NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301002 |
5MGEU,MTEU..MA6# NO.1,MARK"2",MARK 2 |
1 | ||
| 11071-4301004 |
5MGEU,MTEU..MA6# NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301001 |
5MGEU,MTEU..MA6# NO.2,MARK"1",MARK 1 |
6 | ||
| 11071-4301005 |
5MGEU,MTEU..MA6# NO.1,MARK"5",MARK 5 |
1 | ||
| 11701-4301005 |
5MGEU,MTEU..MA6# NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301003 |
5MGEU,MTEU..MA6# NO.1,MARK"3",MARK 3 |
1 | ||
| 11701-4301002 |
5MGEU,MTEU..MA6# NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301004 |
5MGEU,MTEU..MA6# NO.2,MARK"4",MARK 4 |
6 | ||
| 11701-4301003 |
5MGEU,MTEU..MA6# NO.2,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301001 |
5MGEU,MTEU..MA6# NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301002 |
5MGEU,MTEU..MA6# NO.1,MARK"2",MARK 2 |
1 | ||
| 11071-4301004 |
5MGEU,MTEU..MA6# NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301001 |
5MGEU,MTEU..MA6# NO.2,MARK"1",MARK 1 |
6 | ||
| 11071-4301005 |
5MGEU,MTEU..MA6# NO.1,MARK"5",MARK 5 |
1 | ||
| 11701-4301005 |
5MGEU,MTEU..MA6# NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301003 |
5MGEU,MTEU..MA6# NO.1,MARK"3",MARK 3 |
1 | ||
| 11701-4301002 |
5MGEU,MTEU..MA6# NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301004 |
5MGEU,MTEU..MA6# NO.2,MARK"4",MARK 4 |
6 | ||
| 11701-4301003 |
5MGEU,MTEU..MA6# NO.2,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301001 |
5MGEU,MTEU..MA6# NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301002 |
5MGEU,MTEU..MA6# NO.1,MARK"2",MARK 2 |
1 | ||
| 11071-4301004 |
5MGEU,MTEU..MA6# NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301001 |
5MGEU,MTEU..MA6# NO.2,MARK"1",MARK 1 |
6 | ||
| 11071-4301005 |
5MGEU,MTEU..MA6# NO.1,MARK"5",MARK 5 |
1 | ||
| 11701-4301005 |
5MGEU,MTEU..MA6# NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301003 |
5MGEU,MTEU..MA6# NO.1,MARK"3",MARK 3 |
1 | ||
| 11701-4301002 |
5MGEU,MTEU..MA6# NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301004 |
5MGEU,MTEU..MA6# NO.2,MARK"4",MARK 4 |
6 | ||
| 11701-4301003 |
5MGEU,MTEU..MA6# NO.2,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301001 |
5MGEU,MTEU..MA6# NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301002 |
5MGEU,MTEU..MA6# NO.1,MARK"2",MARK 2 |
1 | ||
| 11071-4301004 |
5MGEU,MTEU..MA6# NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301001 |
5MGEU,MTEU..MA6# NO.2,MARK"1",MARK 1 |
6 | ||
| 11071-4301005 |
5MGEU,MTEU..MA6# NO.1,MARK"5",MARK 5 |
1 | ||
| 11701-4301005 |
5MGEU,MTEU..MA6# NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301003 |
5MGEU,MTEU..MA6# NO.1,MARK"3",MARK 3 |
1 | ||
| 11701-4301002 |
5MGEU,MTEU..MA6# NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301004 |
5MGEU,MTEU..MA6# NO.2,MARK"4",MARK 4 |
6 | ||
| 11701-4301003 |
5MGEU,MTEU..MA6# NO.2,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301001 |
5MGEU,MTEU..MA6# NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301002 |
5MGEU,MTEU..MA6# NO.1,MARK"2",MARK 2 |
1 | ||
| 11071-4301004 |
5MGEU,MTEU..MA6# NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301001 |
5MGEU,MTEU..MA6# NO.2,MARK"1",MARK 1 |
6 | ||
| 11071-4301005 |
5MGEU,MTEU..MA6# NO.1,MARK"5",MARK 5 |
1 | ||
| 11701-4301005 |
5MGEU,MTEU..MA6# NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301003 |
5MGEU,MTEU..MA6# NO.1,MARK"3",MARK 3 |
1 | ||
| 11701-4301002 |
5MGEU,MTEU..MA6# NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301004 |
5MGEU,MTEU..MA6# NO.2,MARK"4",MARK 4 |
6 | ||
| 11701-4301003 |
5MGEU,MTEU..MA6# NO.2,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301001 |
5MGEU,MTEU..MA6# NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301002 |
5MGEU,MTEU..MA6# NO.1,MARK"2",MARK 2 |
1 | ||
| 11071-4301004 |
5MGEU,MTEU..MA6# NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301001 |
5MGEU,MTEU..MA6# NO.2,MARK"1",MARK 1 |
6 | ||
| 11071-4301005 |
5MGEU,MTEU..MA6# NO.1,MARK"5",MARK 5 |
1 | ||
| 11701-4301005 |
5MGEU,MTEU..MA6# NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301003 |
5MGEU,MTEU..MA6# NO.1,MARK"3",MARK 3 |
1 | ||
| 11701-4301002 |
5MGEU,MTEU..MA6# NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301004 |
5MGEU,MTEU..MA6# NO.2,MARK"4",MARK 4 |
6 | ||
| 11701-4301003 |
5MGEU,MTEU..MA6# NO.2,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301001 |
5MGEU,MTEU..MA6# NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301002 |
5MGEU,MTEU..MA6# NO.1,MARK"2",MARK 2 |
1 | ||
| 11071-4301004 |
5MGEU,MTEU..MA6# NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301001 |
5MGEU,MTEU..MA6# NO.2,MARK"1",MARK 1 |
6 | ||
| 11071-4301005 |
5MGEU,MTEU..MA6# NO.1,MARK"5",MARK 5 |
1 | ||
| 11701-4301005 |
5MGEU,MTEU..MA6# NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301003 |
5MGEU,MTEU..MA6# NO.1,MARK"3",MARK 3 |
1 | ||
| 11701-4301002 |
5MGEU,MTEU..MA6# NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301004 |
5MGEU,MTEU..MA6# NO.2,MARK"4",MARK 4 |
6 | ||
| 11701-4301003 |
5MGEU,MTEU..MA6# NO.2,MARK"3",MARK 3 |
6 | ||
| 13011 - RING SET, PISTON | ||||
| 13014-43050 |
5MGEU..MA61 O/S 0.75 |
1 | ||
| 13011-43050 |
5MGEU..MA61 STD |
1 | ||
| 13013-43050 |
5MGEU..MA61 O/S 0.50 |
1 | ||
| 13015-43050 |
5MGEU..MA61 O/S 1.00 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5MGEU..MA61 MARK"1",MARK 1 |
6 | ||
| 13041-4201003 |
5MGEU..MA61 MARK"3",MARK 3 |
6 | ||
| 13041-4201005 |
5MGEU..MA61 MARK"5",MARK 5 |
6 | ||
| 13041-4201004 |
5MGEU..MA61 MARK"4",MARK 4 |
6 | ||
| 13041-4201002 |
5MGEU..MA61 MARK"2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5MGEU..MA61 MARK"1",MARK 1 |
6 | ||
| 13041-4201003 |
5MGEU..MA61 MARK"3",MARK 3 |
6 | ||
| 13041-4201005 |
5MGEU..MA61 MARK"5",MARK 5 |
6 | ||
| 13041-4201004 |
5MGEU..MA61 MARK"4",MARK 4 |
6 | ||
| 13041-4201002 |
5MGEU..MA61 MARK"2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5MGEU..MA61 MARK"1",MARK 1 |
6 | ||
| 13041-4201003 |
5MGEU..MA61 MARK"3",MARK 3 |
6 | ||
| 13041-4201005 |
5MGEU..MA61 MARK"5",MARK 5 |
6 | ||
| 13041-4201004 |
5MGEU..MA61 MARK"4",MARK 4 |
6 | ||
| 13041-4201002 |
5MGEU..MA61 MARK"2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5MGEU..MA61 MARK"1",MARK 1 |
6 | ||
| 13041-4201003 |
5MGEU..MA61 MARK"3",MARK 3 |
6 | ||
| 13041-4201005 |
5MGEU..MA61 MARK"5",MARK 5 |
6 | ||
| 13041-4201004 |
5MGEU..MA61 MARK"4",MARK 4 |
6 | ||
| 13041-4201002 |
5MGEU..MA61 MARK"2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5MGEU..MA61 MARK"1",MARK 1 |
6 | ||
| 13041-4201003 |
5MGEU..MA61 MARK"3",MARK 3 |
6 | ||
| 13041-4201005 |
5MGEU..MA61 MARK"5",MARK 5 |
6 | ||
| 13041-4201004 |
5MGEU..MA61 MARK"4",MARK 4 |
6 | ||
| 13041-4201002 |
5MGEU..MA61 MARK"2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5MGEU..MA61 MARK"1",MARK 1 |
6 | ||
| 13041-4201003 |
5MGEU..MA61 MARK"3",MARK 3 |
6 | ||
| 13041-4201005 |
5MGEU..MA61 MARK"5",MARK 5 |
6 | ||
| 13041-4201004 |
5MGEU..MA61 MARK"4",MARK 4 |
6 | ||
| 13041-4201002 |
5MGEU..MA61 MARK"2",MARK 2 |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13104-43050 |
5MGEU..MA61 O/S 0.75 |
6 | ||
| 13103-43050 |
5MGEU..MA61 O/S 0.50 |
6 | ||
| 13105-43050 |
5MGEU..MA61 O/S 1.00 |
6 | ||
| 13104-43060 |
5MGEU..MA61 O/S 0.75 |
6 | ||
| 13101-43050 |
5MGEU..MA61 STD |
6 | ||
| 13105-43060 |
5MGEU..MA61 O/S 1.00 |
6 | ||
| 13103-43060 |
5MGEU..MA61 O/S 0.50 |
6 | ||
| 13101-43040 |
5MGEU..MA61 STD |
6 | ||
| 13101-43051 |
5MGEU..MA61 STD,STD |
6 | ||
| 13105-43061 |
5MGEU..MA61 O/S 1.00,O/S 1.00 |
6 | ||
| 13104-43061 |
5MGEU..MA61 O/S 0.75,O/S 0.75 |
6 | ||
| 13103-43061 |
5MGEU..MA61 O/S 0.50,O/S 0.50 |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25052 |
5MGEU,MTEU..MA6# |
12 | ||
| 90521-25001 |
5MGEU,MTEU..MA6# |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-43011 |
5MGEU..MA61 |
6 | ||
| 13201-45010 |
5MGEU..MA61 |
6 | ||
| 13201-49025 |
5MGEU..MA61 |
6 | ||
| 13201-43010 |
5MGEU..MA61 |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73066 |
5MGEU,MTEU..MA6# |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13203-45011 |
5MGEU,MTEU..MA6# U/S 0.05,U/S 0.05 |
1 | ||
| 13205-42010 |
5MGEU..MA61 U/S 0.50,U/S 0.50 |
1 | ||
| 13204-45011 |
5MGEU,MTEU..MA6# U/S 0.25,U/S 0.25 |
1 | ||
| 13202-45011 |
5MGEU,MTEU..MA6# STD,STD |
1 | ||
| 13204-42010 |
5MGEU..MA61 U/S 0.25,U/S 0.25 |
1 | ||
| 13205-45011 |
5MGEU,MTEU..MA6# U/S 0.50,U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-49025 |
5MGEU..MA61 |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
5MGEU..MA61 |
12 | ||
| 90170-09195 |
5MGEU..MA61 |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-49175 |
5MGEU..MA61..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
5MGEU..MA61..5F 長さ=23,外径=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
5MGEU..MA61..5F *10-1.25PX26-18 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-45012 |
5MGEU..MA61 |
1 | ||
| 13411-45013 |
5MGEU..MA61 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
5MGEU..MA61..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-43010 |
5MGEU..MA61 |
1 | ||
| 13407-43011 |
5MGEU..MA61 |
1 | ||
| 13407-43020 |
5MGEU..MA61 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05001 |
5MGEU,MTEU..MA6# |
1 | ||
| 90280-05003 |
5MGEU,MTEU..MA6# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16002 |
5MGEU,MTEU..MA6# *16-1.5PX26-21 |
1 | ||
| 90105-16011 |
5MGEU,MTEU..MA6# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05003 |
5MGEU,MTEU..MA6# |
1 | ||
| 90280-05010 |
5MGEU,MTEU..MA6# |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-43010 |
5MGEU..MA61 |
1 | ||
| 13521-43020 |
5MGEU..MA61 |
1 | ||
| Linked diagrams | ||||
| 3101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
