GA61-BLPQE (1981)

Toyota Celica

Production Jul 1981 - Dec 1985
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )

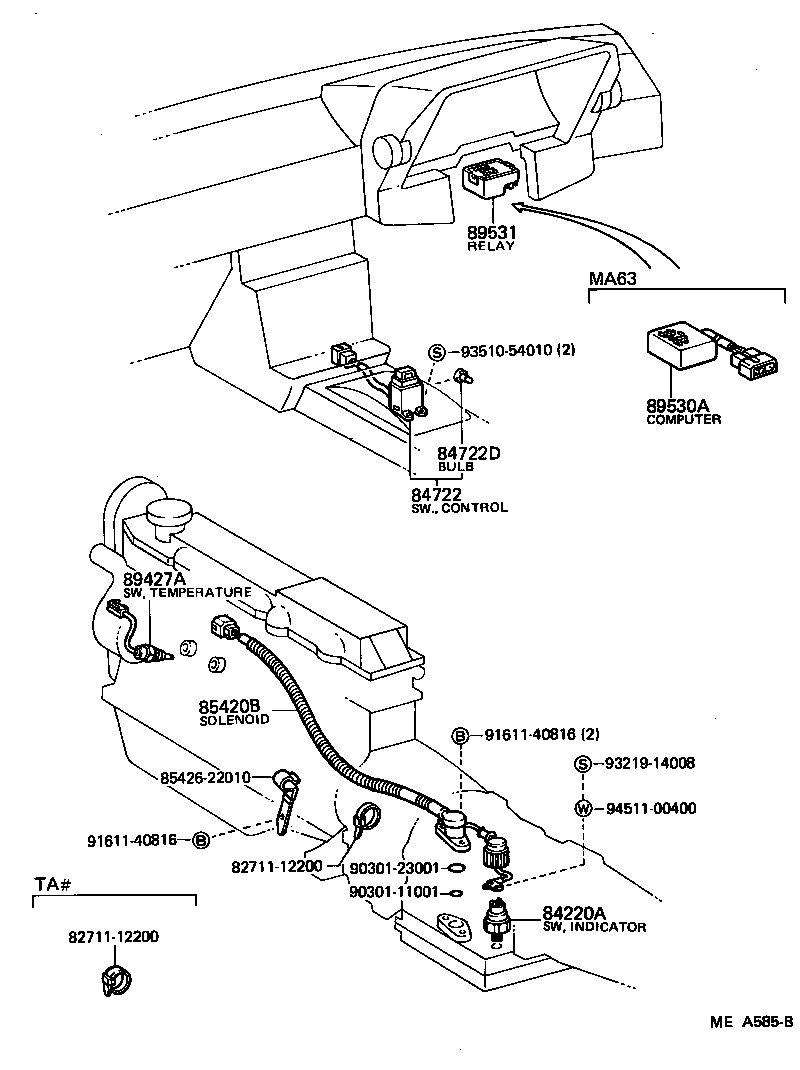

Click highlighted areas on diagram

diagram 8271112200 8271112200 84220A 84722 84722D 85420B 8542622010 89427A 89530A 89531 9030111001 9030123001 9161140816 9161140816 9321914008 9351054010 9451100400
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

GA61,MA63,SA60,TA63..4FC

 1
84220-30050

GA61,MA6#,SA60,TA63..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-14060

GA61,MA6#,SA60,TA63..4FC

 1
84722-14060

GA61,MA63,SA60,TA63..4FC

 1
84722D - BULB, TRANSMISSION CONTROL SWITCH
90981-11024

GA61,MA6#,SA60,TA63..4FC

12V 1.4W

 1
90981-11024

GA61,MA63,SA60,TA63..4FC

12V 1.4W

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-22040

GA61,MA6#,SA60..4FC

 1
85420-22040

GA61,MA63..4FC

 1
85420-22040

GA61,MA63,SA60..4FC

 1
89427A - SWITCH, TEMPERATURE
89428-30050

GA61,MA63..4FC

MARK=70B

 1
89428-30050

GA61,MA6#..4FC

MARK=70B

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-22030

GA61,MA61,SA60,TA63..4FC

 1
89531-14050

GA61,SA60,TA63..4FC

 1
Common parts
82711-12200
85426-22010
90301-11001
90301-23001
91611-40816
93219-14008
93510-54010
94511-00400
