GA61-BLMSE (1981)

Toyota Celica

Production Jul 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )GA61,MA6#,SA60

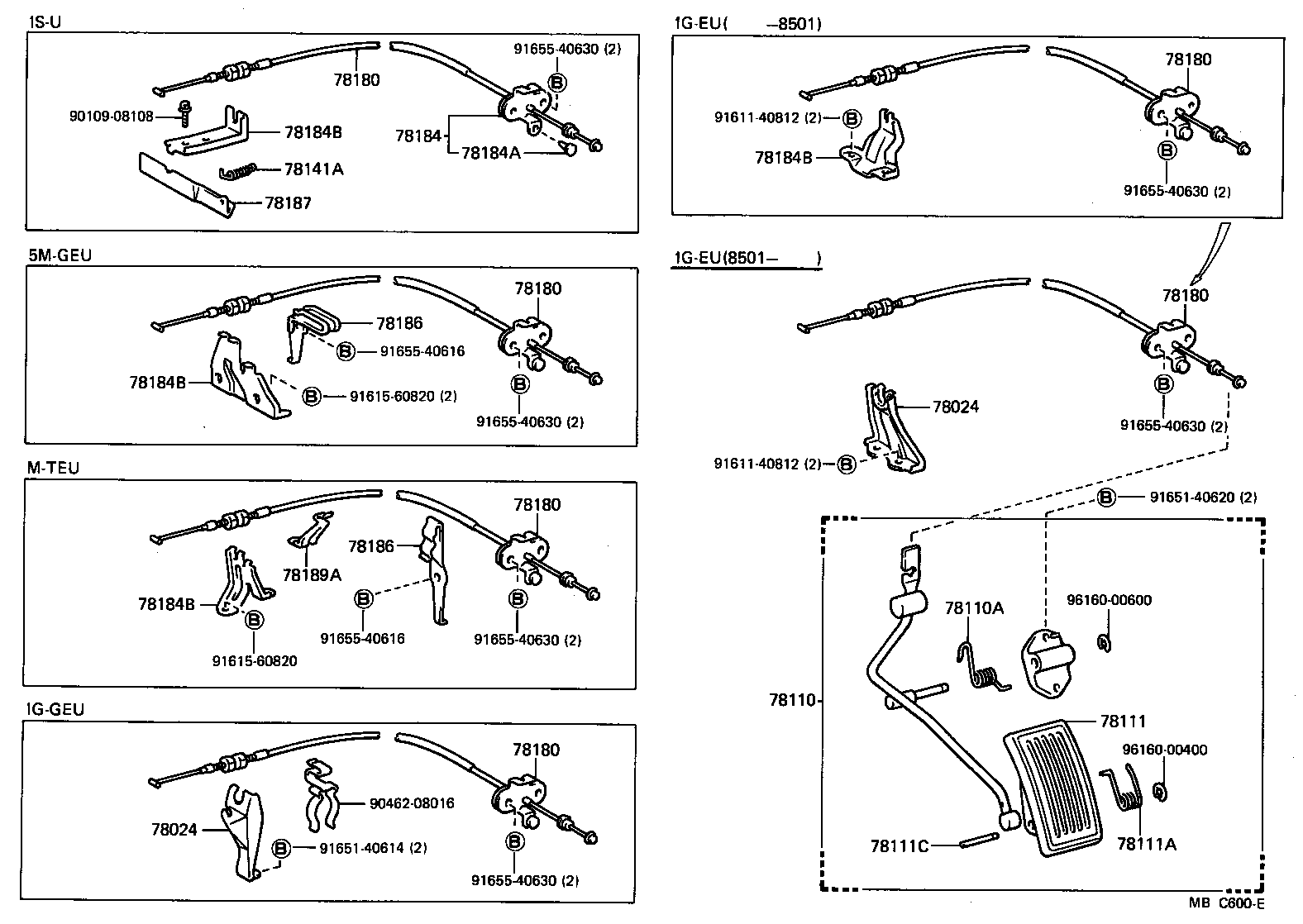

Click highlighted areas on diagram

diagram 78024 78024 78110 78110A 78111 78111A 78111C 78141A 78180 78180 78180 78180 78180 78180 78184 78184A 78184B 78184B 78184B 78184B 78186 78186 78187 78189A 9010908108 9046208016 9161140812 9161140812 9161560820 9161560820 9165140614 9165140620 9165540616 9165540616 9165540630 9165540630 9165540630 9165540630 9165540630 9165540630 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GA61..G,S

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GA61..G,S

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-14310

GA61,MA61,SA60..MTM

 1
78120-14310

GA61..5F

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036

GA61..5F

 1
90508-26036

GA61,MA61,SA60..MTM

 1
78111 - PEDAL, ACCELERATOR
78111-12100

GA61,MA6#,SA60

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

GA61,MA6#,SA60

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GA61,MA6#,SA60

 1
78180 - WIRE ASSY, ACCELERATOR
78180-24011

GA61..G,S

 1
78180-24010

GA61..G,L,S

 1
78180 - WIRE ASSY, ACCELERATOR
78180-24011

GA61..G,S

 1
78180-24010

GA61..G,L,S

 1
78180 - WIRE ASSY, ACCELERATOR
78180-24011

GA61..G,S

 1
78180-24010

GA61..G,L,S

 1
78180 - WIRE ASSY, ACCELERATOR
78180-24011

GA61..G,S

 1
78180-24010

GA61..G,L,S

 1
78180 - WIRE ASSY, ACCELERATOR
78180-24011

GA61..G,S

 1
78180-24010

GA61..G,L,S

 1
78180 - WIRE ASSY, ACCELERATOR
78180-24011

GA61..G,S

 1
78180-24010

GA61..G,L,S

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-22040

GA61..G,L,S

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-22040

GA61..G,L,S

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-22040

GA61..G,L,S

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-22040

GA61..G,L,S

 1
Common parts
90109-08108
90462-08016
91611-40812
91615-60820
91651-40614
91651-40620
91655-40616
91655-40630
96160-00400
96160-00600
