GA61-BLMQE (1981)

Toyota Celica

Production Jul 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )

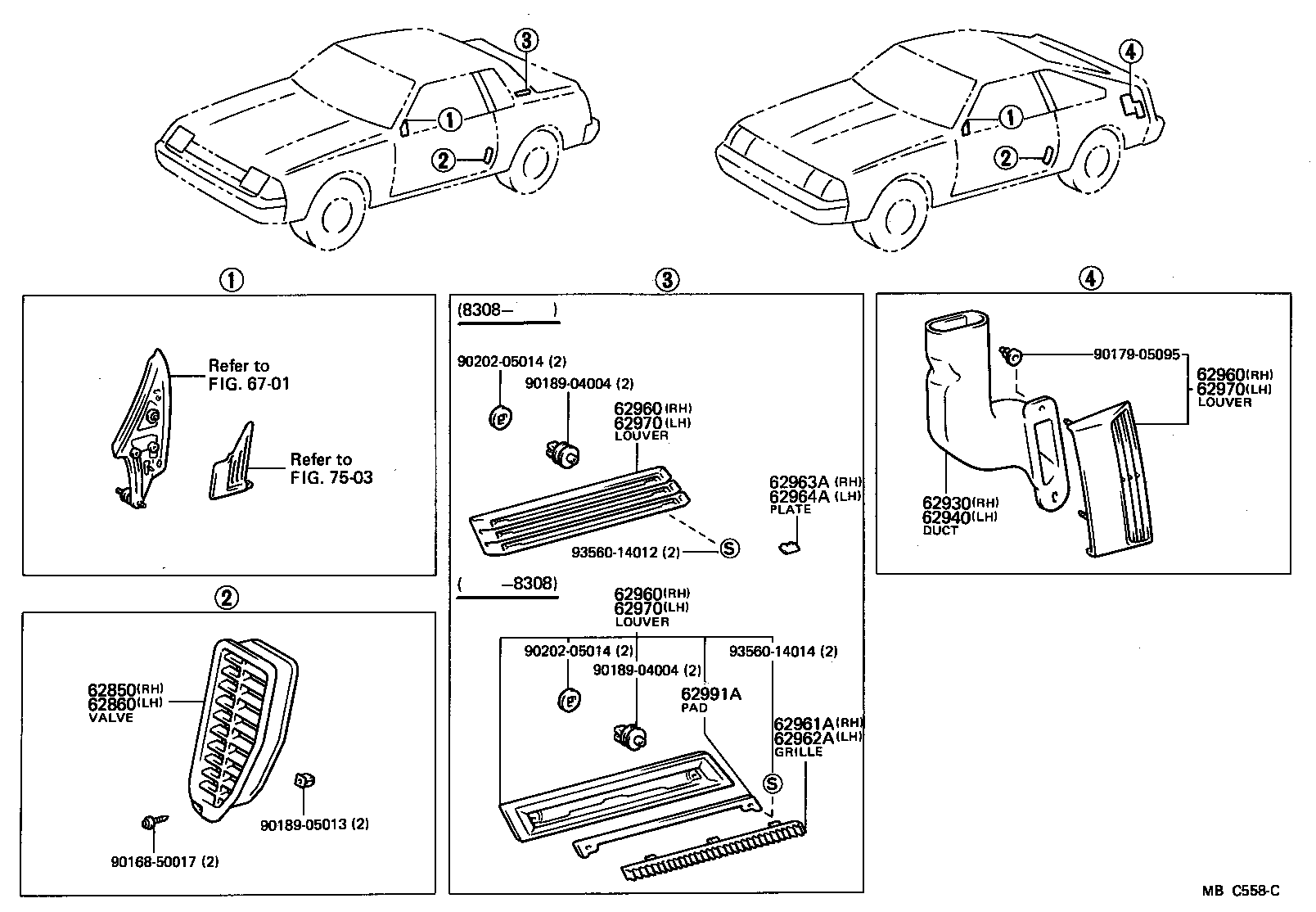

Click highlighted areas on diagram

diagram 62850 62860 62930 62940 62960 62960 62960 62961A 62962A 62963A 62964A 62970 62970 62970 62991A 6701 7503 9016850017 9017905095 9018904004 9018904004 9018905013 9020205014 9020205014 9356014012 9356014014
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-14040

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62860-14030

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
62930 - DUCT ASSY, ROOF SIDE VENT, RH
62930-14040

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

 1
62940 - DUCT ASSY, ROOF SIDE VENT, LH
62940-14030

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62905-19265

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62905-19265

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62905-19265

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62906-19245

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62906-19245

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62906-19245

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

 1
Common parts
90168-50017
90179-05095
90189-04004
90189-05013
90202-05014
93560-14012
93560-14014
Linked diagrams
6701
7503
