GA61-BLMQE (1981)

Toyota Celica

Production Jul 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )GA61,MA6#

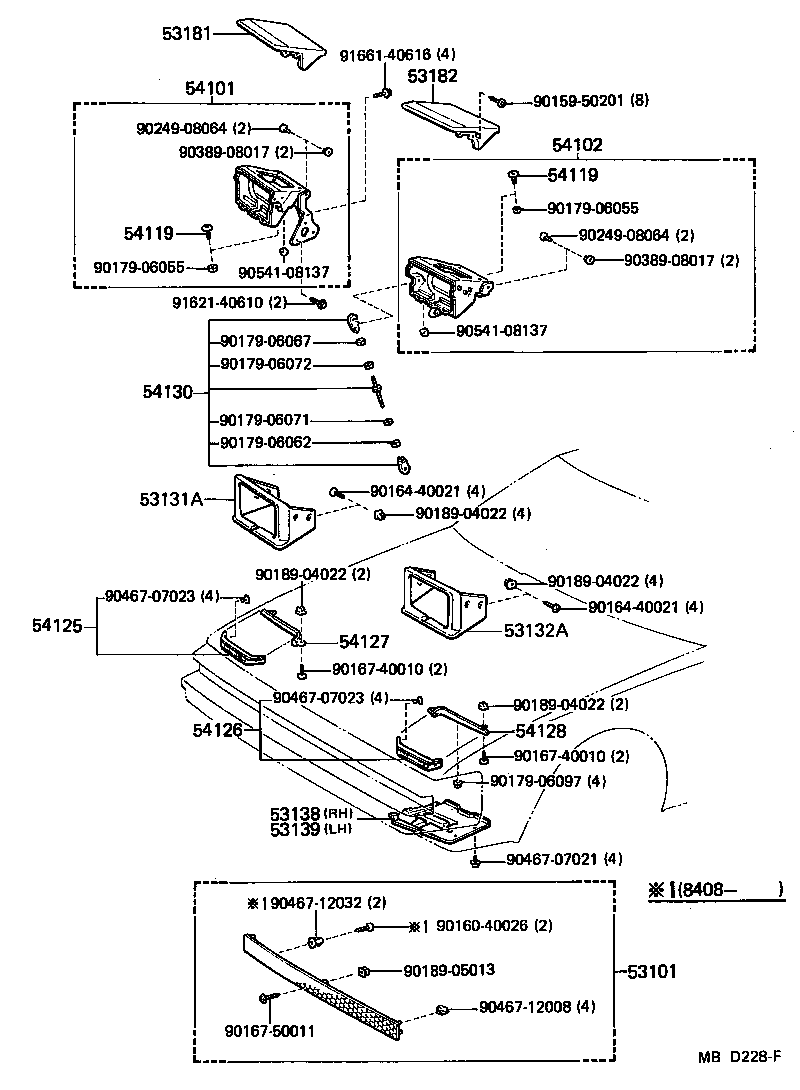

Click highlighted areas on diagram

diagram 53101 53131A 53132A 53138 53139 53181 53182 54101 54102 54119 54119 54125 54126 54127 54128 54130 9015950201 9016040026 9016440021 9016440021 9016740010 9016740010 9016750011 9017906055 9017906055 9017906062 9017906067 9017906071 9017906072 9017906097 9018904022 9018904022 9018904022 9018904022 9018905013 9024908064 9024908064 9038908017 9038908017 9046707021 9046707023 9046707023 9046712008 9046712032 9054108137 9054108137 9162140610 9166140616
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-19495

GA61,MA6#

 1
53101-19496

GA61,MA6#

 1
53131A - DOOR, HEADLAMP, RH
53131-14260

GA61,MA6#

 1
53132A - DOOR, HEADLAMP, LH
53132-14260

GA61,MA6#

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53138-14070

GA61,MA6#

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-14100

GA61,MA6#

 1
53181 - COVER, HEADLAMP, RH
53181-14020

GA61,MA6#

 1
53182 - COVER, HEADLAMP, LH
53182-14020

GA61,MA6#

 1
54101 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, RH
54110-14020

GA61,MA6#

 1
54102 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, LH
54120-14020

GA61,MA6#

 1
54119 - STOP, RETRACTABLE HEADLAMP LINK
54119-14020

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
54119-14020

GA61,MA6#

 2
54119 - STOP, RETRACTABLE HEADLAMP LINK
54119-14020

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
54119-14020

GA61,MA6#

 2
54125 - PROTECTOR, RETRACTABLE HEADLAMP, NO.1 RH
54125-14010

GA61,MA61

 1
54125-14011

GA61,MA6#

 1
54126 - PROTECTOR, RETRACTABLE HEADLAMP, NO.1 LH
54126-14010

GA61,MA61

 1
54126-14011

GA61,MA6#

 1
54127 - PROTECTOR, RETRACTABLE HEADLAMP, NO.2 RH
54127-14010

GA61,MA6#

 1
54128 - PROTECTOR, RETRACTABLE HEADLAMP, NO.2 LH
54128-14010

GA61,MA6#

 1
54130 - ROD ASSY, RETRACTABLE HEADLAMP
54130-14020

GA61,MA6#

 2
Common parts
90159-50201
90160-40026
90164-40021
90167-40010
90167-50011
90179-06055
90179-06062
90179-06067
90179-06071
90179-06072
90179-06097
90189-04022
90189-05013
90249-08064
90389-08017
90467-07021
90467-07023
90467-12008
90467-12032
90541-08137
91621-40610
91661-40616
