GA61-BLMNE (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8308)GA61,MA6#

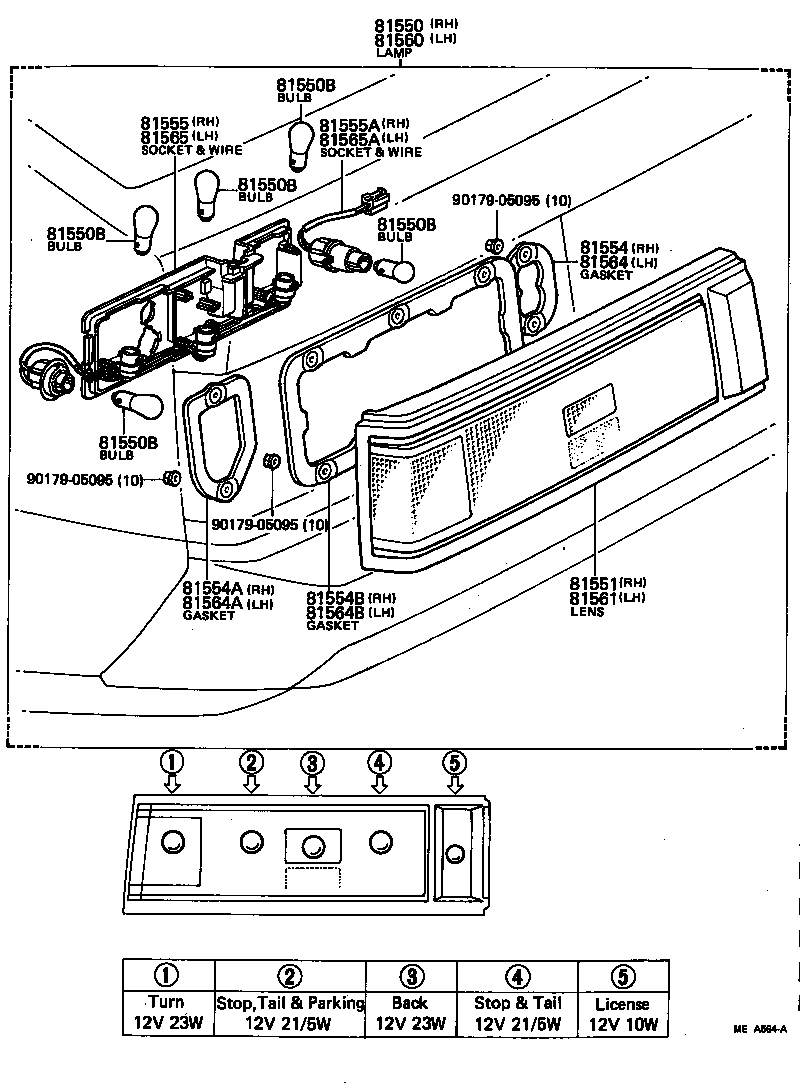

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81550B 81551 81554 81554A 81554B 81555 81555A 81560 81561 81564 81564A 81564B 81565 81565A 9017905095 9017905095 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80207

GA61,MA6#

 1
81550-80105

GA61,MA6#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 23W,12V 23W

 4
99132-11100

GA61,MA6#

12V 10W,12V 10W

 2
99132-21210

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 23W,12V 23W

 4
99132-11100

GA61,MA6#

12V 10W,12V 10W

 2
99132-21210

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 23W,12V 23W

 4
99132-11100

GA61,MA6#

12V 10W,12V 10W

 2
99132-21210

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 23W,12V 23W

 4
99132-11100

GA61,MA6#

12V 10W,12V 10W

 2
99132-21210

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 23W,12V 23W

 4
99132-11100

GA61,MA6#

12V 10W,12V 10W

 2
99132-21210

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 21/5W,12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-14620

GA61,MA6#

 1
81551-14510

GA61,MA6#

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-14510

GA61,MA6#

 1
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81554-14510

GA61,MA6#

 1
81554B - GASKET, REAR COMBINATION LAMP BODY, NO.2 RH
81558-14510

GA61,MA6#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-14510

GA61,MA6#

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81557-14510

GA61,MA6#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80109

GA61,MA6#

 1
81560-80212

GA61,MA6#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-14510

GA61,MA6#

 1
81561-14620

GA61,MA6#

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81552-14510

GA61,MA6#

 1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81554-14510

GA61,MA6#

 1
81564B - GASKET, REAR COMBINATION LAMP BODY, NO.2 LH
81558-14510

GA61,MA6#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-14510

GA61,MA6#

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81557-14510

GA61,MA6#

 1
Common parts
90179-05095
