GA61-BLMNE (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )GA61,MA6#

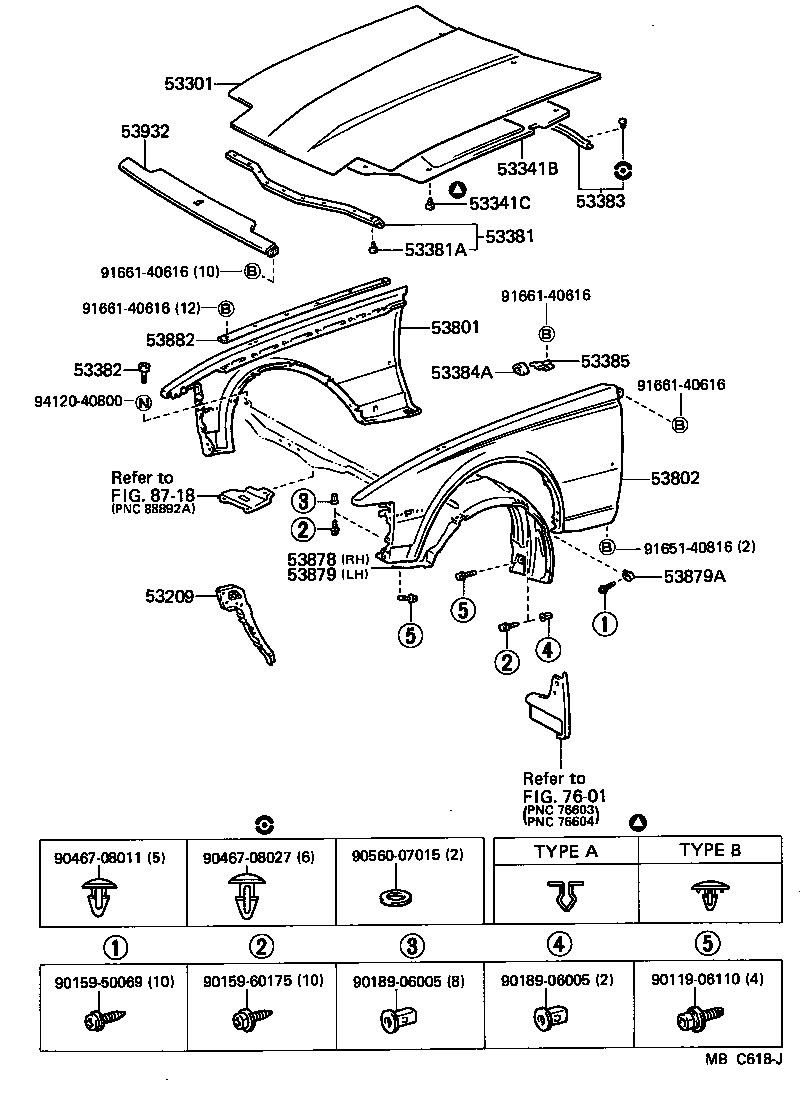

Click highlighted areas on diagram

diagram 53209 53301 53341B 53341C 53381 53381A 53382 53383 53384A 53385 53801 53802 53878 53879 53879A 53882 53932 7601 8718 9011906110 9015950069 9015960175 9018906005 9018906005 9046708011 9046708027 9056007015 9165140816 9166140616 9166140616 9166140616 9166140616 9412040800
Part # Description Qty Price
53209 - BRACE SUB-ASSY, HOOD LOCK
53217-14040

GA61,MA6#

 1
53301 - HOOD SUB-ASSY
53301-14240

GA61,MA6#

 1
53341B - INSULATOR, HOOD
53341-14040

GA61,MA61

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09006

GA61,MA61

 15
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-14110

GA61,MA6#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

GA61,MA6#

 9
53382 - BUMPER, HOOD, FRONT
53382-20011

AA63,GA61,MA6#,RA63,SA60,TA6#

 4
53383 - SEAL, HOOD TO COWL TOP
53383-14080

GA61,MA61,RA63,SA60,TA6#

 1
53384A - BUMPER, FENDER TO HOOD
53384-14030

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
53385 - RETAINER, HOOD, BUMPER
53386-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

RH

 1
53385-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

LH

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-14710

GA61,MA6#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-14700

GA61,MA6#

 1
53878 - LINER, FRONT FENDER, RH
53875-14150

GA61,MA6#

 1
53879 - LINER, FRONT FENDER, LH
53876-14150

GA61,MA6#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AA63,GA61,MA6#,RA63,SA60,TA61,63

 10
53882 - PACKING, FRONT FENDER MAIN
53882-14100

GA61,MA6#

 2
53932 - PANEL SUB-ASSY, FRONT END
53903-14020

GA61,MA61..G,GT

 1
53903-14010

MA63;GA61..L,S

 1
Common parts
90119-06110
90159-50069
90159-60175
90189-06005
90467-08011
90467-08027
90560-07015
91651-40816
91661-40616
94120-40800
Linked diagrams
7601
8718
