AT160-BLPVF (1985)
Toyota Celica

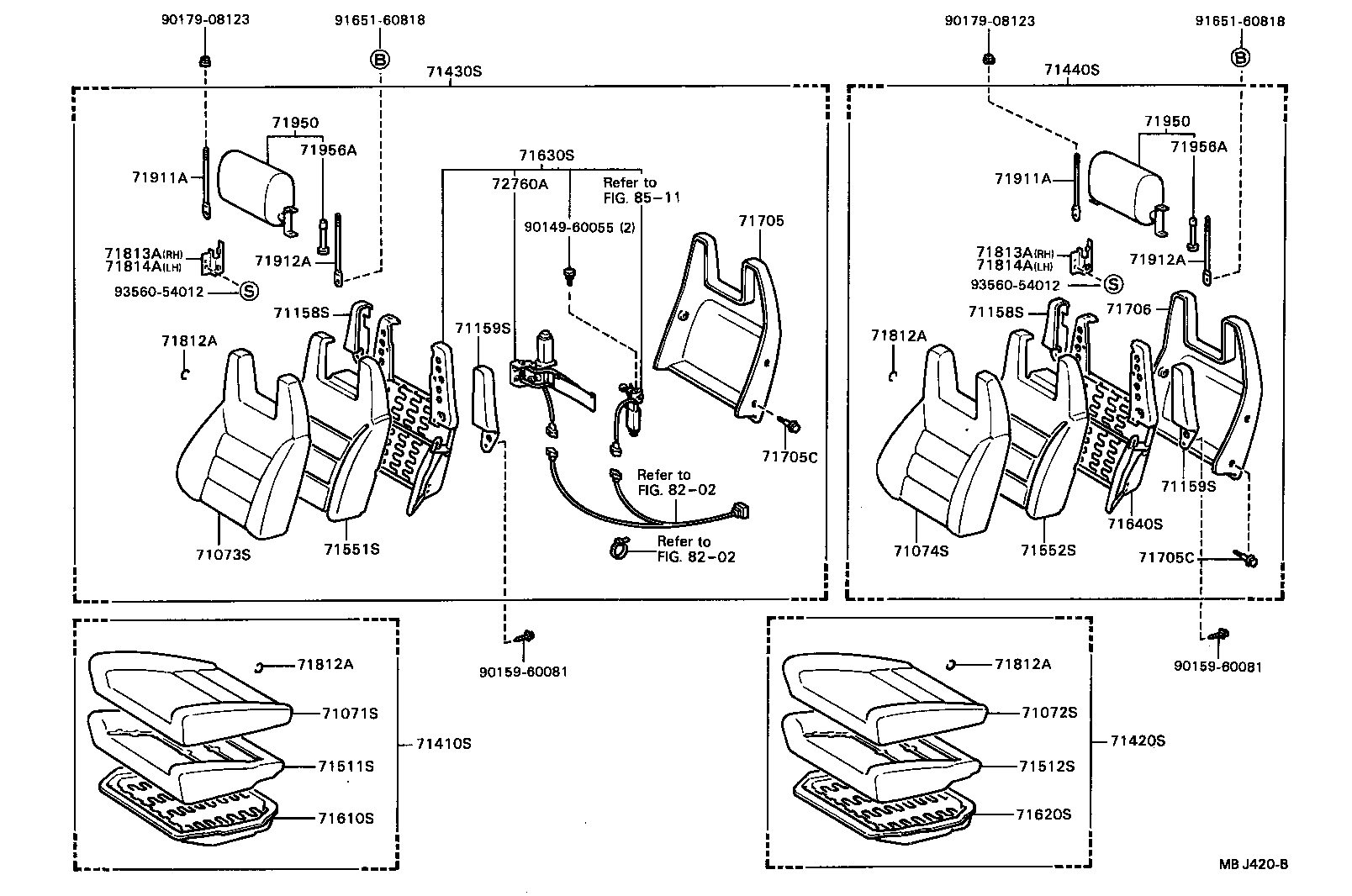

ILLUST NO. 1 OF 2(8508- )AT160,ST162,165
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B59003 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2B79003 |
AT160,ST162 W/8-WAY *SPS,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2B79103 |
AT160,ST162 W/8-WAY *SPS,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2B59104 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B79103 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2B59004 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B79104 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B79004 |
AT160,ST162 W/8-WAY *SPS,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B59103 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2B79104 |
AT160,ST162 W/8-WAY *SPS,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2B22103 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2B22004 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B22104 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B22003 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2B20104 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B20103 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B53004 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B53003 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2B53104 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B53103 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B15103 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2B15003 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2B15004 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074-2B15104 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-20130 |
AT160,ST162,165 |
2 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-20130 |
AT160,ST162,165 |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-20080 |
AT160,ST162,165 |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-20080 |
AT160,ST162,165 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B68004 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B68003 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2B68103 |
AT160,ST162 FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B68104 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2B15004 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420-2B15104 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420-2B15103 |
AT160,ST162 FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2B15003 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B66004 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B66103 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2B66003 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2B66104 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2B41003 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2B41103 |
AT160,ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2B41104 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-2B41004 |
AT160,ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20410 |
AT160,ST162,165 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20410 |
AT160,ST162,165 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20370 |
AT160,ST162,165 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20370 |
AT160,ST162,165 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20350 |
AT160,ST162,165 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20300 |
AT160,ST162,165 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20420 |
AT160,ST162 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-20420 |
AT160,ST162,165 |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2007004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71705-2007003 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004303 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
8 | ||
| 90149-5004304 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
8 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004303 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
8 | ||
| 90149-5004304 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
8 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2007004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71705-2007003 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT160,ST16# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT160,ST16# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT160,ST16# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT160,ST16# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-2001004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71813-2001003 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-2001004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71813-2001003 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-2001004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71814-2001003 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-2001004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71814-2001003 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
AT160,ST162,165 |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
AT160,ST162,165 |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
AT160,ST162,165 |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
AT160,ST162,165 |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2058003 |
AT160,ST162 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2058004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2058003 |
AT160,ST162 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2058004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1401014 |
AT160,ST162 ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408014 |
AT160,ST162 ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408001 |
AT160,ST162,165 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71931-1401001 |
AT160,ST162,165 ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1401014 |
AT160,ST162 ﾛｯｸ無,W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408014 |
AT160,ST162 ﾛｯｸ付,W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408001 |
AT160,ST162,165 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71931-1401001 |
AT160,ST162,165 ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-20070 |
AT160,ST162,165 |
1 | ||
| Common parts | ||||
| 90149-60055 | ||||
| 90159-60081 | ||||
| 90179-08123 | ||||
| 91651-60818 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8511 | ||||

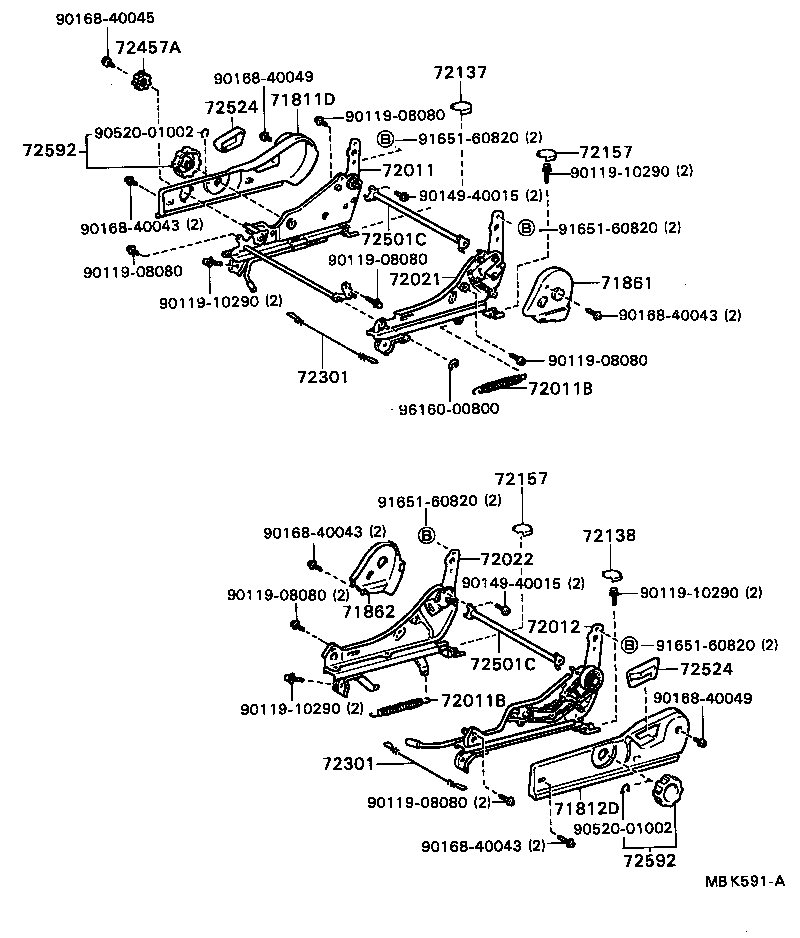

ILLUST NO. 2 OF 2(8508- )AT160,ST162,165
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2012003 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-2012004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2007004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-2007003 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2003004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71861-2003003 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2003003 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71862-2003004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20010 |
AT160,ST162 |
1 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90507-18014 |
AT160,ST162,165 |
2 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90507-18014 |
AT160,ST162,165 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20020 |
AT160,ST162 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20010 |
AT160,ST162 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20010 |
AT160,ST162 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20030 |
AT160,ST16# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20020 |
AT160,ST16# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-20030 |
AT160,ST160,162 LH |
1 | ||
| 72138-20020 |
AT160,ST160,162 RH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-20030 |
AT160,ST160,162 LH |
1 | ||
| 72138-20020 |
AT160,ST160,162 RH |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
AT160,ST160,162 |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
AT160,ST160,162 |
2 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701003 |
AT160,ST16# RH,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72457-1701004 |
AT160,ST160,162 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
AT160,ST162,165 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
AT160,ST162,165 |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006004 |
AT160,ST162 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72526-2005003 |
AT160,ST162,165 LH,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-2006003 |
AT160,ST162,165 RH,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72526-2005004 |
AT160,ST162 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006004 |
AT160,ST162 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72526-2005003 |
AT160,ST162,165 LH,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-2006003 |
AT160,ST162,165 RH,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72526-2005004 |
AT160,ST162 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-2001004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72592-2001003 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-2001004 |
AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72592-2001003 |
AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10290 | ||||
| 90149-40015 | ||||
| 90168-40043 | ||||
| 90168-40045 | ||||
| 90168-40049 | ||||
| 90520-01002 | ||||
| 91651-60820 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
