AT160-BLPVF (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
4AGELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )4AGELU

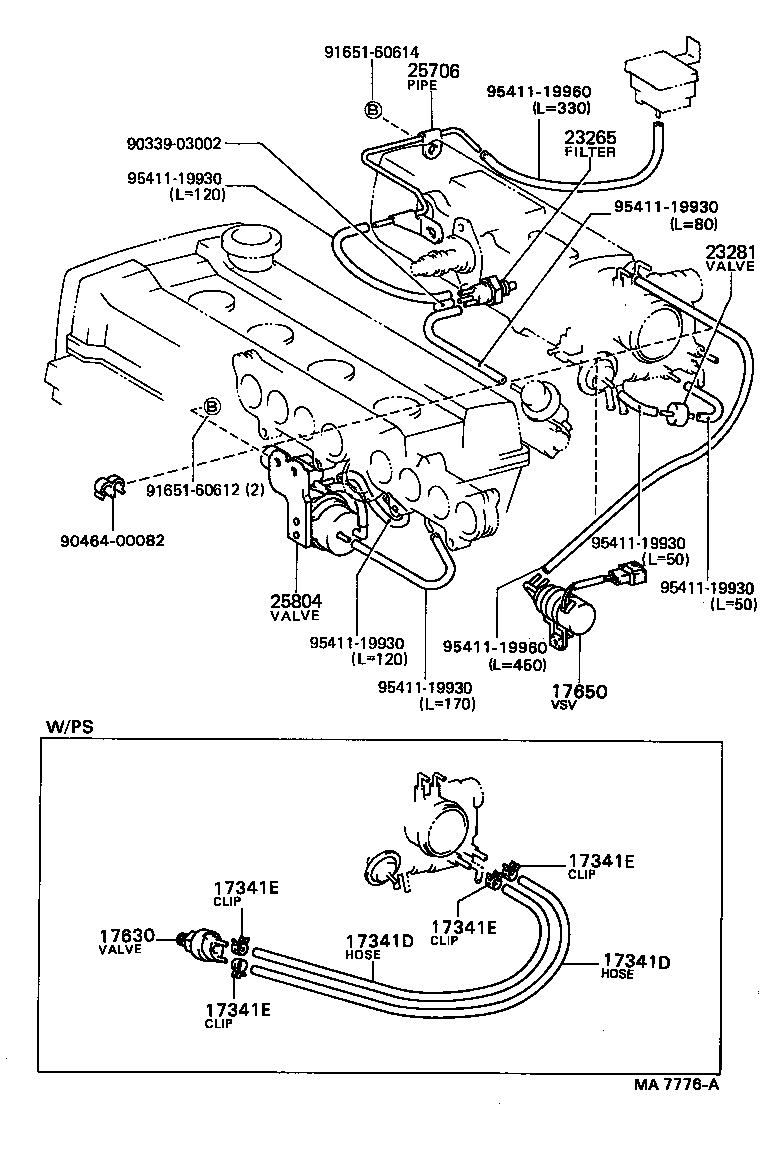

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-16070 |
4AGELU..AT160 |
2 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-16070 |
4AGELU..AT160 |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGELU..AT160 |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGELU..AT160 |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGELU..AT160 |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGELU..AT160 |
4 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-16040 |
4AGELU..AT160 |
1 | ||
| 17630-70010 |
4AGELU..AT160 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-16060 |
4AGELU..AT160 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
4AGELU..AT160 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01071 |
4AGELU..AT160 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16090 |
4AGELU..AT160 |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-16010 |
4AGELU..AT160 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90464-00082 | ||||
| 91651-60612 | ||||
| 91651-60614 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
(8508- )4AGELU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
