AT160-BLMVF (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 4AGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )5F

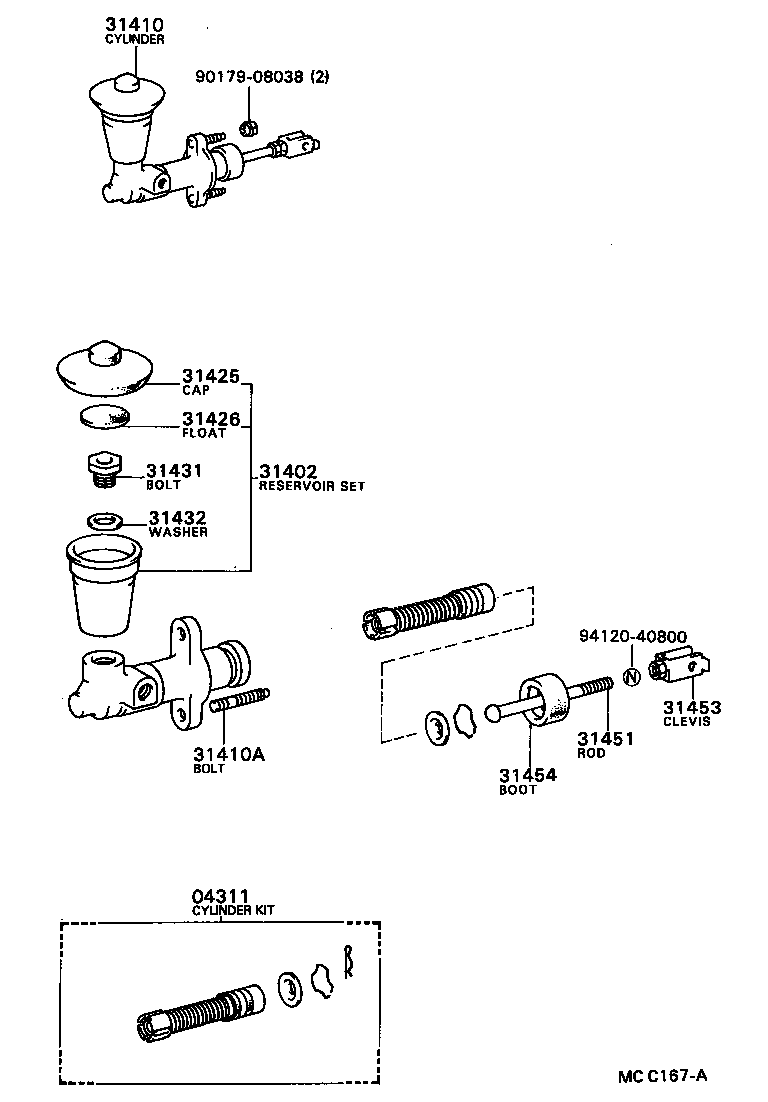

Click highlighted areas on diagram

diagram 04311 31402 31410 31410A 31425 31426 31431 31432 31451 31453 31454 9017908038 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-32020

AT160,ST16#..5F

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-30030

AT160,ST16#..5F

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-20280

AT160,ST16#..5F

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
90116-08146

AT160,ST16#..5F

 1
31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

AT160,ST16#..5F

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

AT160,ST16#..5F

 1
31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET
47231-30010

AT160,ST16#..5F

 1
31432 - WASHER, CLUTCH RESERVOIR SET BOLT
47232-30010

AT160,ST16#..5F

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-32010

AT160,ST16#..5F

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

AT160,ST16#..5F

 1
31453-35010

AT160,ST16#..5F

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

AT160,ST16#..5F

 1
Common parts
90179-08038
94120-40800
