AA63-BLMQF (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

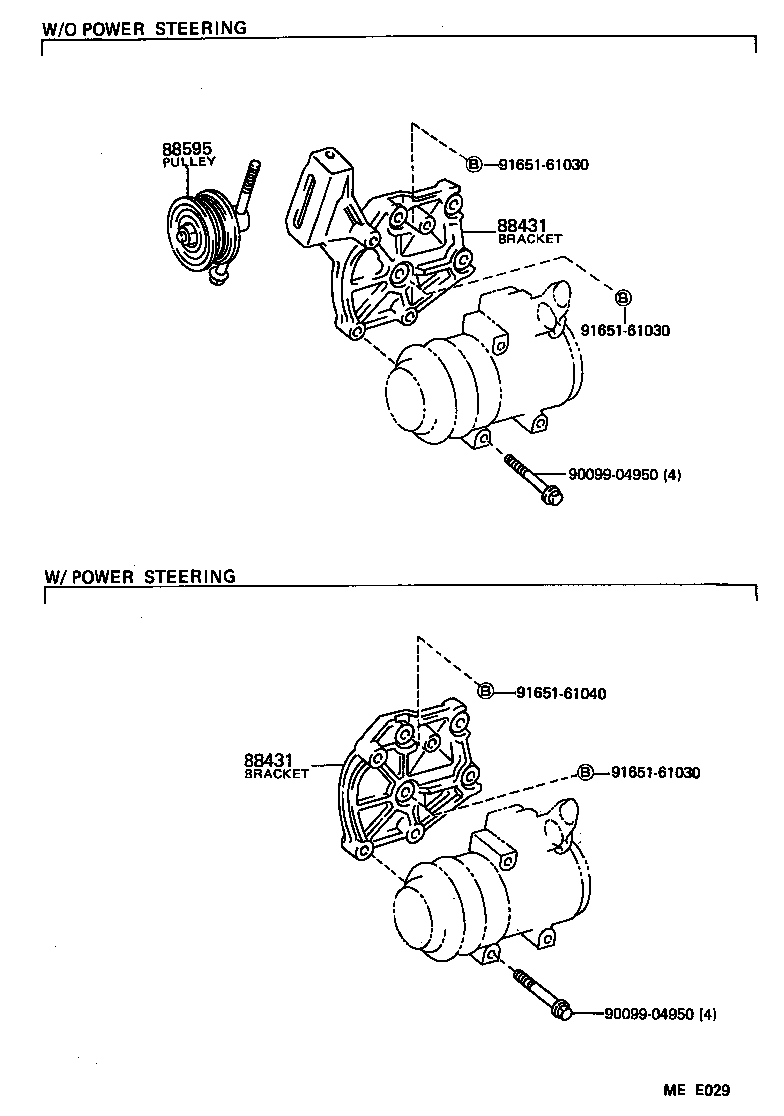

ILLUST NO. 3 OF 3(8308-8507)AA63

Click highlighted areas on diagram

diagram 88431 88431 88595 9009904950 9009904950 9165161030 9165161030 9165161030 9165161040
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-14120

TA61,63..GT,GTR,ST,SX

 1
88431-14200

AA63

 1
88431-14210

AA63

W/POWER STEERING

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-14120

TA61,63..GT,GTR,ST,SX

 1
88431-14200

AA63

 1
88431-14210

AA63

W/POWER STEERING

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

MA6#,TA61,63..G,GT,GTR,S,ST,SX

 1
88440-12110

AA63

 1
Common parts
90099-04950
91651-61030
91651-61040
