AA63-BLMQF (1983)
Toyota Celica
Production
Aug 1983
-
Jul 1985
Engine
4AGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

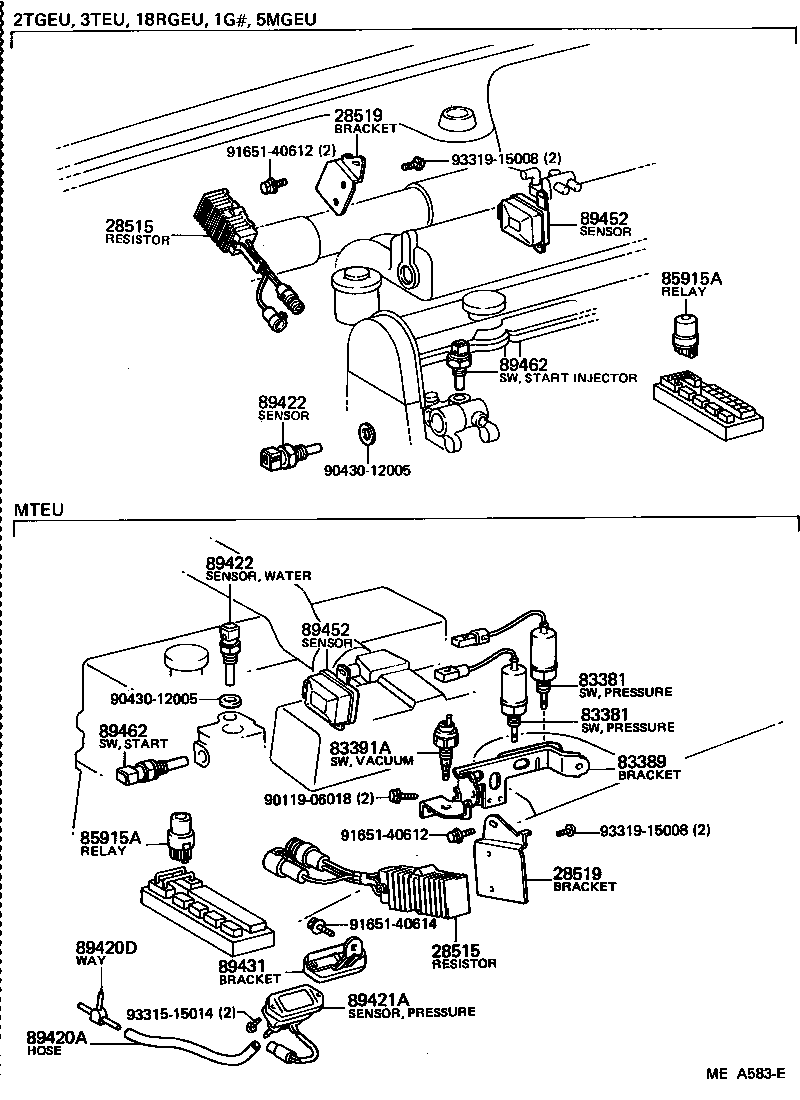

ILLUST NO. 1 OF 2(8107-8501)GA61 ; (8107- )MA6#,RA63,TA61,63..G,GT,GTR,S,ST,SX
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
AA63,GA61,MA6#,RA63,TA6# NO.1 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
AA63,GA61,MA6#,RA63,TA6# NO.1 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
AA63,GA61,MA6#,RA63,TA6# |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
AA63,GA61,MA6#,RA63,TA6# |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-12010 |
TA61,63..GT,GTR,ST,SX |
1 | ||
| 89452-28010 |
AA63 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-12010 |
TA61,63..GT,GTR,ST,SX |
1 | ||
| 89452-28010 |
AA63 |
1 | ||
| Common parts | ||||
| 90119-06018 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93315-15014 | ||||
| 93319-15008 | ||||

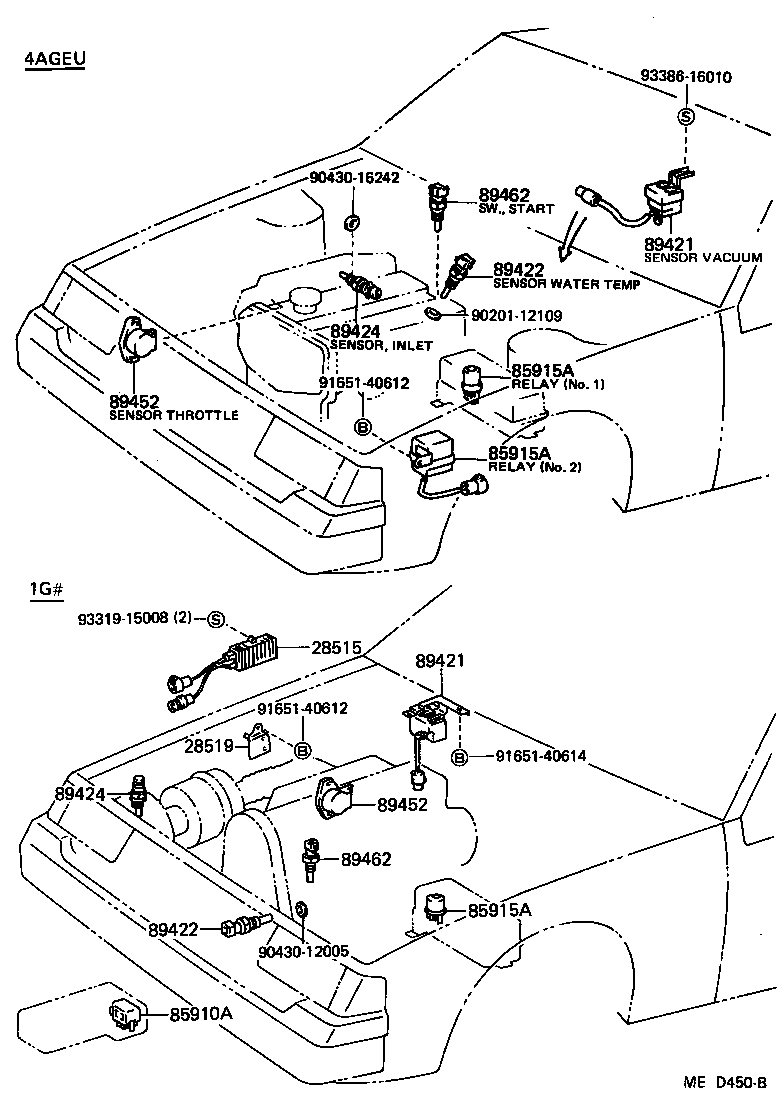

ILLUST NO. 1 OF 2(8308-8507)AA63 ; (8501- )GA61
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
AA63,GA61,MA6#,RA63,TA6# |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
AA63,GA61,MA6#,RA63,TA6# NO.1 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
AA63,GA61,MA6#,RA63,TA6# NO.1 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
AA63,GA61,MA6#,RA63,TA6# NO.1 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-14010 |
AA63 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-14010 |
AA63 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
AA63,GA61,MA6#,RA63,TA6# |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
AA63,GA61,MA6#,RA63,TA6# |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-28010 |
AA63 |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-28010 |
AA63 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-12010 |
TA61,63..GT,GTR,ST,SX |
1 | ||
| 89452-28010 |
AA63 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-12010 |
TA61,63..GT,GTR,ST,SX |
1 | ||
| 89452-28010 |
AA63 |
1 | ||
| Common parts | ||||
| 90201-12109 | ||||
| 90430-12005 | ||||
| 90430-16242 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93319-15008 | ||||
| 93386-16010 | ||||
