AA63-BLMQF (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)AA63,RA63,SA60,TA6#

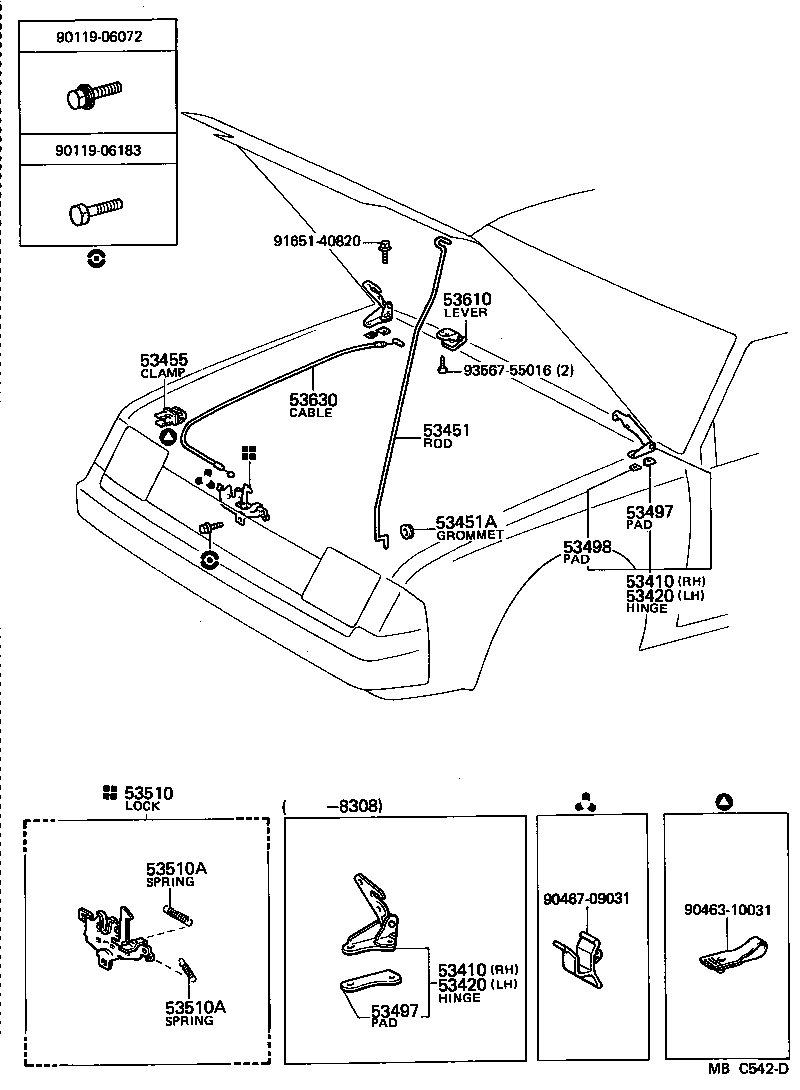

Click highlighted areas on diagram

diagram 53410 53410 53420 53420 53451 53451A 53455 53497 53497 53498 53510 53510A 53510A 53610 53630 9011906072 9011906183 9046310031 9046709031 9165140820 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-14070

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
53410 - HINGE ASSY, HOOD, RH
53410-14070

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
53420 - HINGE ASSY, HOOD, LH
53420-14050

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
53420 - HINGE ASSY, HOOD, LH
53420-14050

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
53451 - ROD, HOOD SUPPORT
53451-14060

AA63,SA60,TA63

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-14020

AA63,RA63,SA60,TA6#

 1
53510 - LOCK ASSY, HOOD
53510-14180

AA63,SA60,TA63

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

AA63,RA63,SA60,TA6#

線径=2.0,ｺｲﾙ巻数=17,WD=2.0

 1
90506-09008

AA63,GA61,MA6#,RA63,SA60,TA6#

線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9

 2
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

AA63,RA63,SA60,TA6#

線径=2.0,ｺｲﾙ巻数=17,WD=2.0

 1
90506-09008

AA63,GA61,MA6#,RA63,SA60,TA6#

線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9

 2
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-1401006

RA63,SA60,TA61,63..GT,ST,SX

DARK BROWN,BROWN,TRIM4#

 1
53601-1401004

GA61,MA6#,RA63,SA60,TA61,63..LB..(G,GT,L,S,ST,SX)

BLUE,BLUE,TRIM8#

 1
53601-1401001

AA63,GA61,MA6#,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
53601-1401006

AA63,SA60,TA63..GT,GTT,ST,SX

DARK BROWN,BROWN,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-14230

AA63,RA63,SA60,TA6#

 1
Common parts
90119-06072
90119-06183
90463-10031
90467-09031
91651-40820
93567-55016
